Raven RP26 Heavy Duty Sweep Seal for Door Bottoms

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

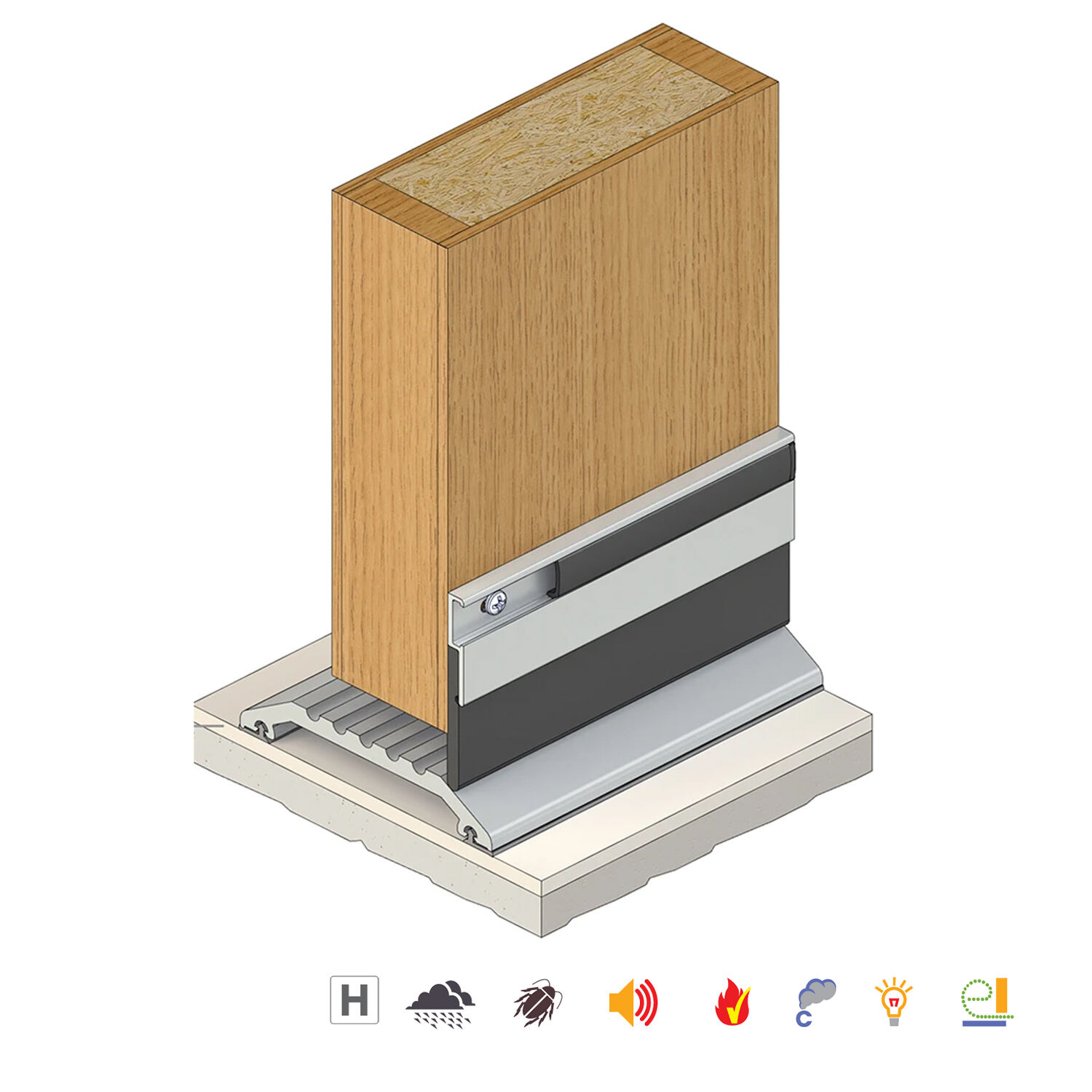

• A heavy duty sweep seal for door bottoms of outward opening doors
• Slotted fixing holes allow for adjustment all concealed behind a push in cover strip.
• The RP26 is ideal for use in conjunction with Raven threshold plates
• Global GreenTag - Platinum

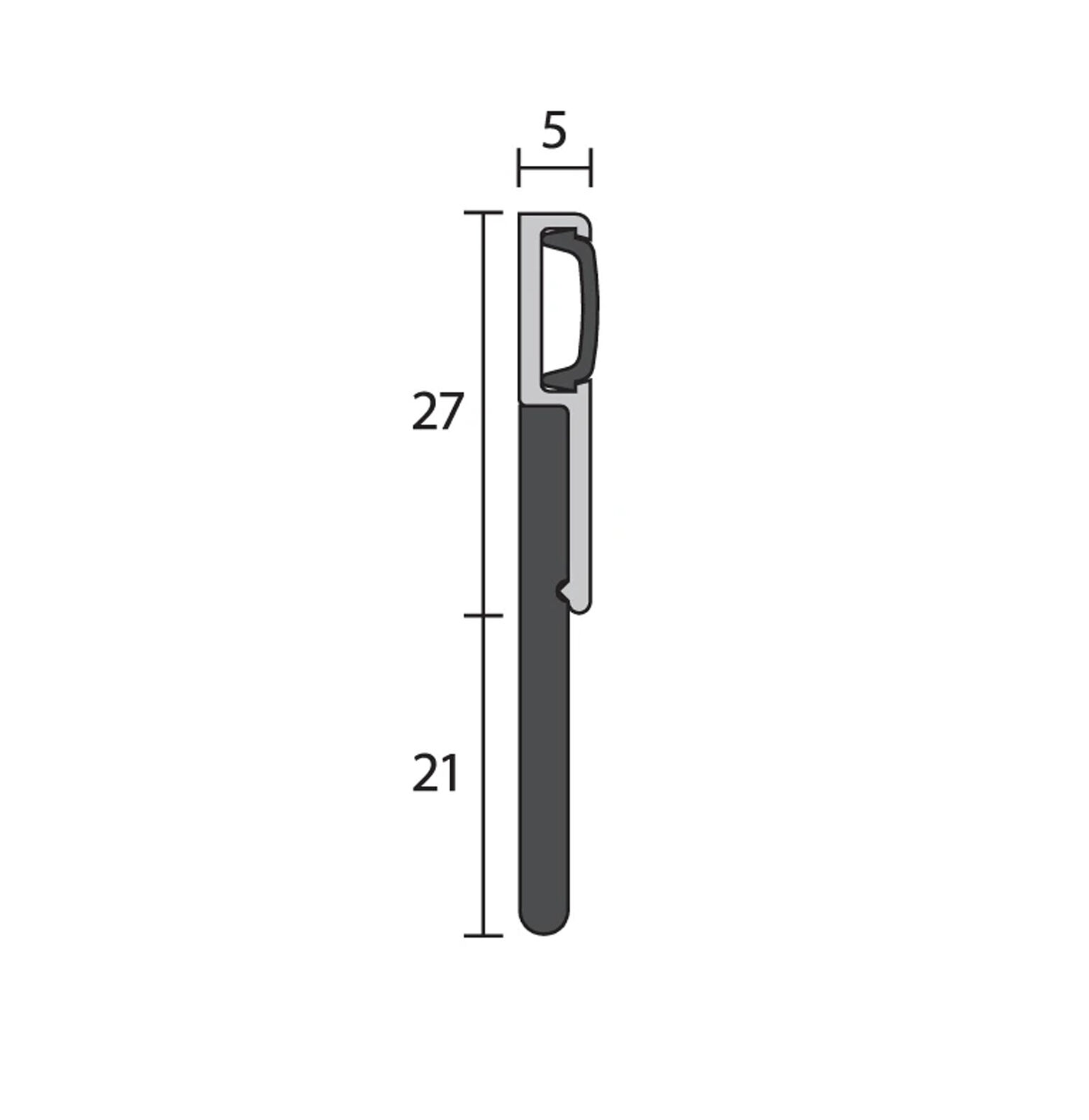

Specifications:

• Location: Bottom of single and double, outward opening, butt hinged doors, tilt up doors or can be used as a meeting stile seal (astragal).
• Fixing: Screw Fixed (Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied. Colour matched escutcheon plates and face mount aluminium angle included)
• Minimum and Maximum Gap: 3mm to 19mm
  Replacement Seals: RP347Si
  Material: Aluminium (Anodised aluminium with silicon rubber (SE) gasket.)
• Door/Frame Construction: Timber, Aluminium
• Available Size:
  • 1000mm
  • 1500mm
  • 3000mm
• Finish: Clear Anodised

Approvals

• Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD120, Up to FRL & FRR-/120/30Energy AUS/NZ: NCC J5D5, ABCB Housing Provisions Standard 2022 13.4.4
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
