Raven RP2A Brush Strip Seal
A2AC1000

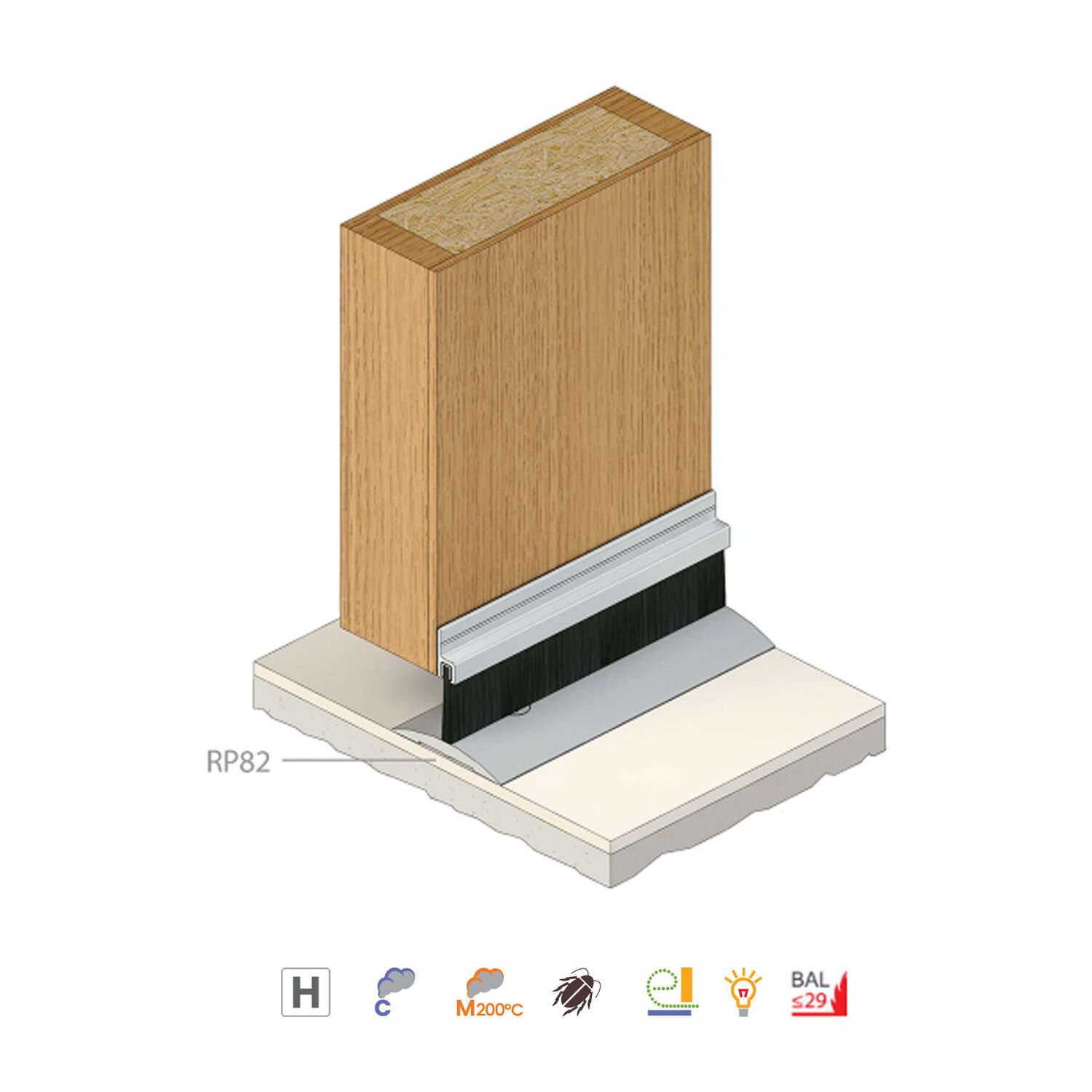

Brush Strip is commonly used in commercial double door setups to seal the gap where the doors meet, helping to block drafts, dust, and noise.

Brush Strip Functions - as a meeting stile seal to reduce air, dust, and sound infiltration between double doors.

Features:

• Nylon brush strip seal with anodised aluminium carrier
• Mounts to the inside or outside of a doo
• Ideal for sliding or double-acting door
• Can be concealed inside the bottom rail of an aluminium door suite by the fabricato
• Designed for use with Raven threshold plates for enhanced sealing performance

Specifications:

• Location:
  • Bottom of single, double, sliding and double acting doors
  • Suitable for hard, flat surfaces
• Size: 1000mm
• Fixing: Screw Fixed, Self-adhesive
  • Self-adhesive or can be screw fixed. Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

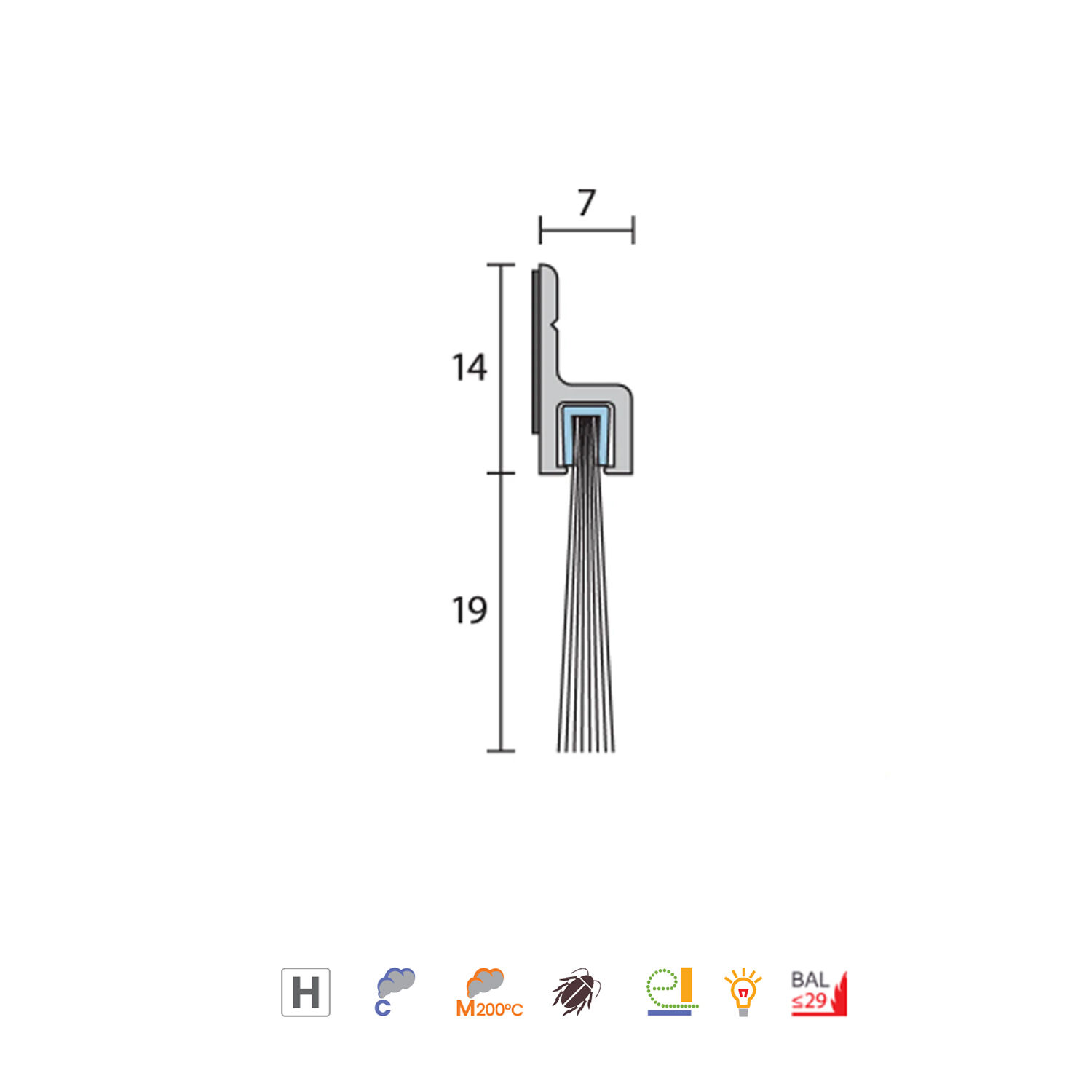

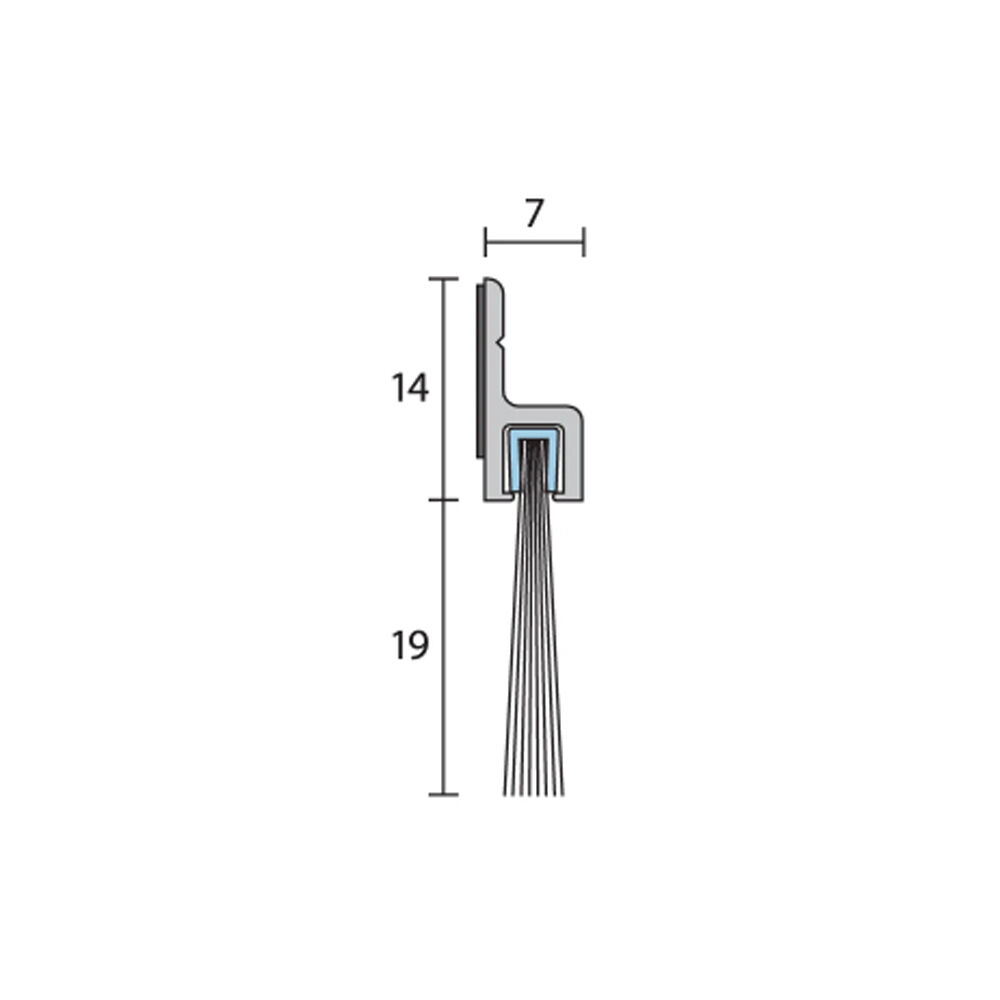

• Min and Max Gap: 0mm to 19mm
• Replacement Seals: RP2
• Material: Aluminum
  • Anodised aluminum with black fine, dense, UV stabilised nylon filaments in a galvanised steel spine.
• Door/Frame Construction: Timber, Aluminium
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Sliding, Pivot
  • Security Screen
  • Bi-fold
• Finish: Silver Anodised

Approvals:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: BAL FZ when used on a garage in accordance with AS 3959
