Raven RP2B Brush Only

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

• Global GreenTag - Bronze
• A nylon brush strip seal without holder, that is fitted in a concealed manner into a machined groove in a door.

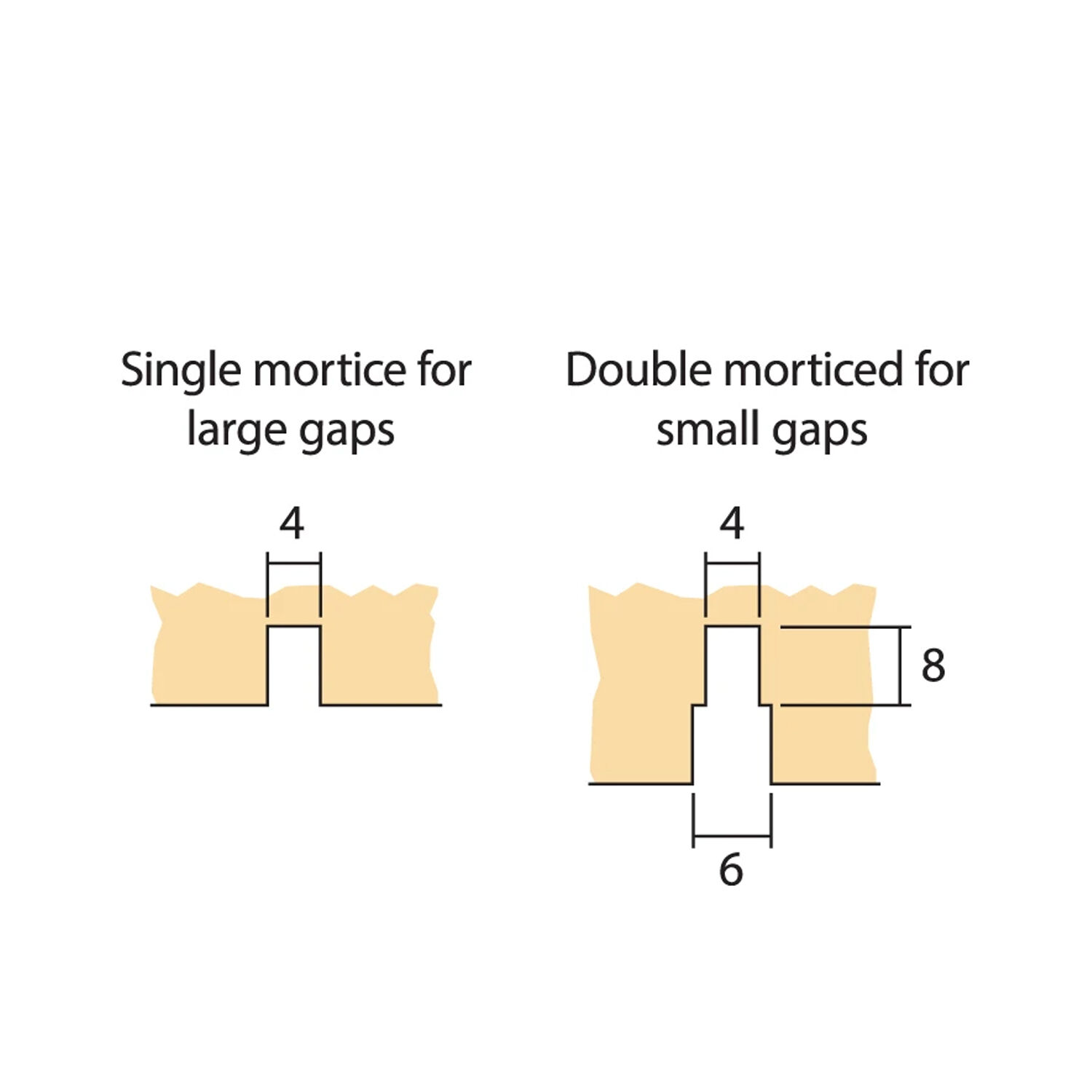

• Where a small clearance is encountered, the groove should be double morticed to allow the brush to flex.

Specification:

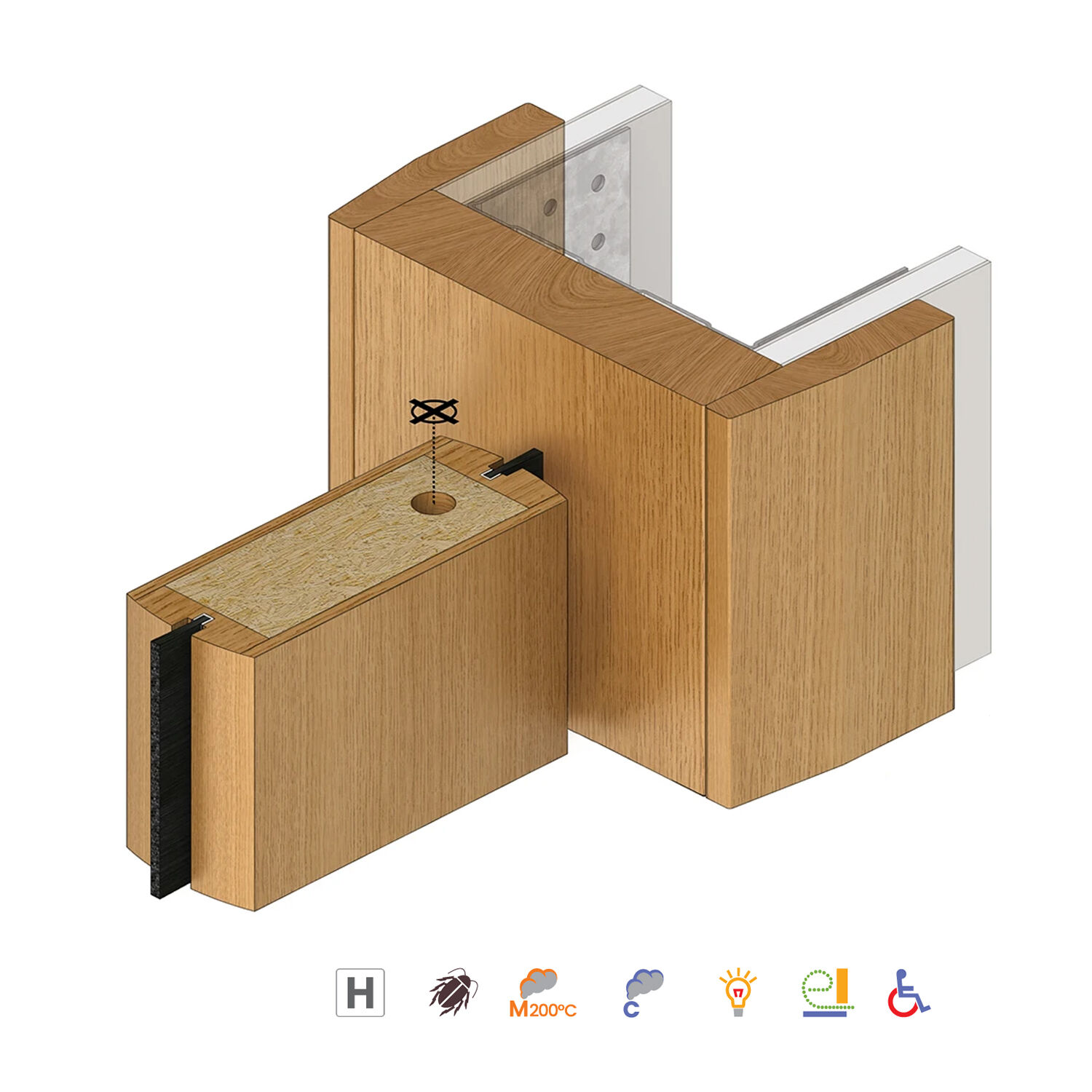

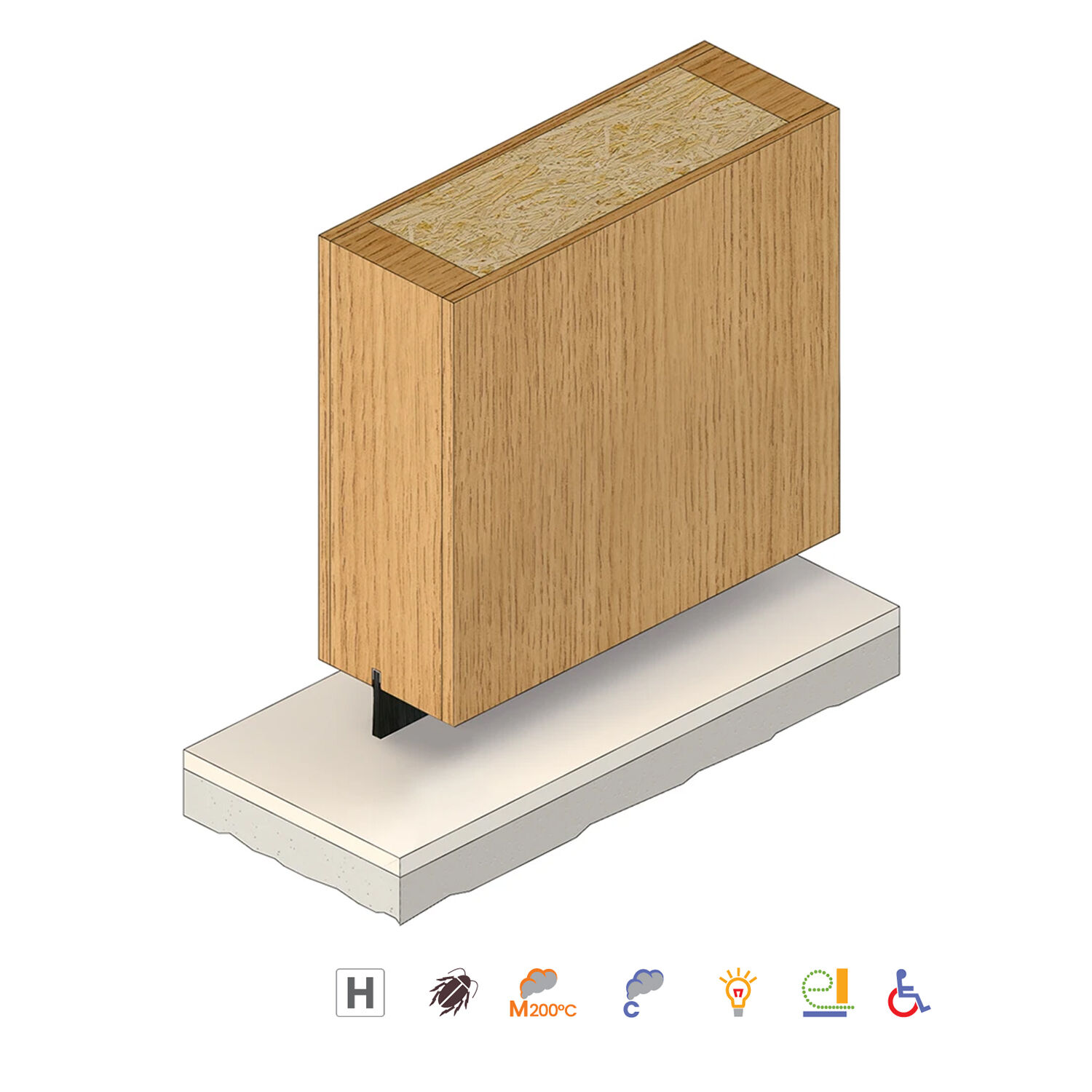

• Location: Stiles or bottom of single, double, sliding and double acting timber doors. Suitable for hard, flat surfaces.
• Fixing: Adhesive Fixed, Push-in Friction Fit (Inserted into morticed groove (optional adhesive if required). Where a small clearance is encountered, the groove should be double morticed to allow the brush to flex)

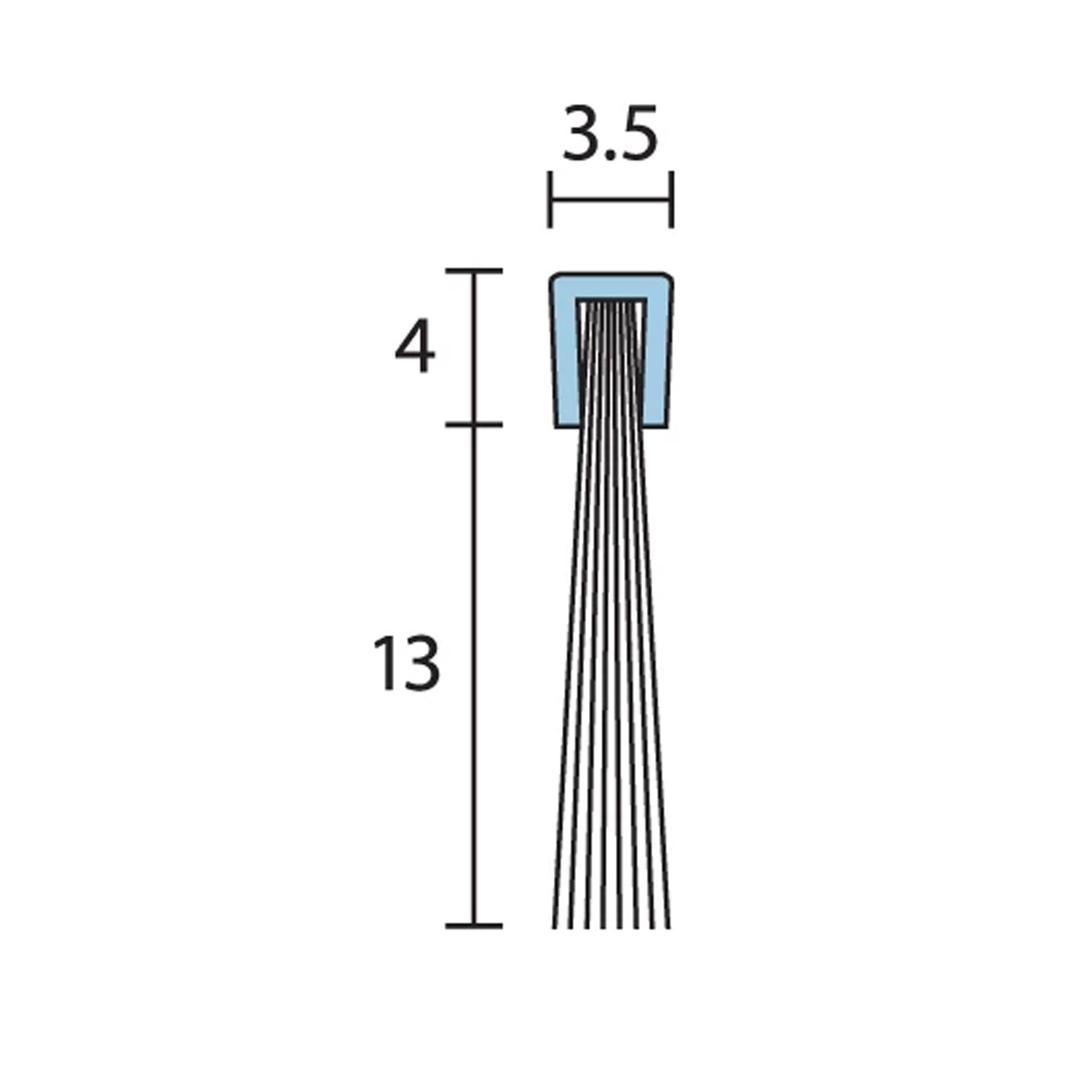

• Minimum and Maximum Gap: 0mm to 13mm (Gap can be user determined)
• Material: Nylon Brush (Black fine, dense, UV stabilised nylon filaments secured in a galvanised steel spine)
• Door/Frame Construction: Timber
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot
• Size:
  • 1000mm
  • 2250mm
  • 3000mm
• Finish: Black

Approval/s:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
