Raven RP38Si Automatic Door Bottom Seal
A38SIB36

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• A heavy duty, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• It is self levelling and reversible for left and right handed operation
• Acoustically designed, it features a silicon gasket for medium temperature smoke and fire door applications

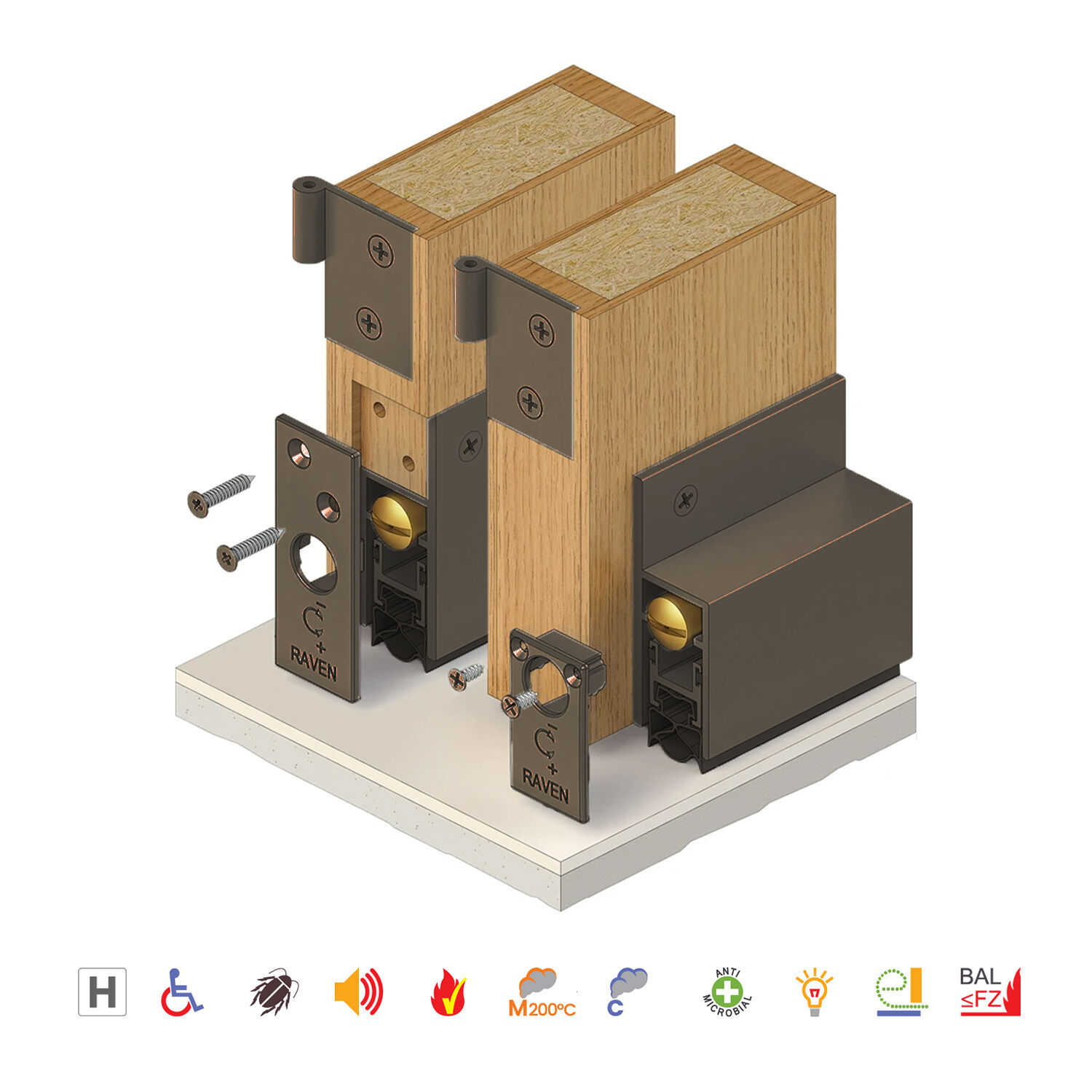

• Doubles as a kick plate when semi-morticed
• Operated automatically by pressure against the door jamb or stop on its adjustable brass strike

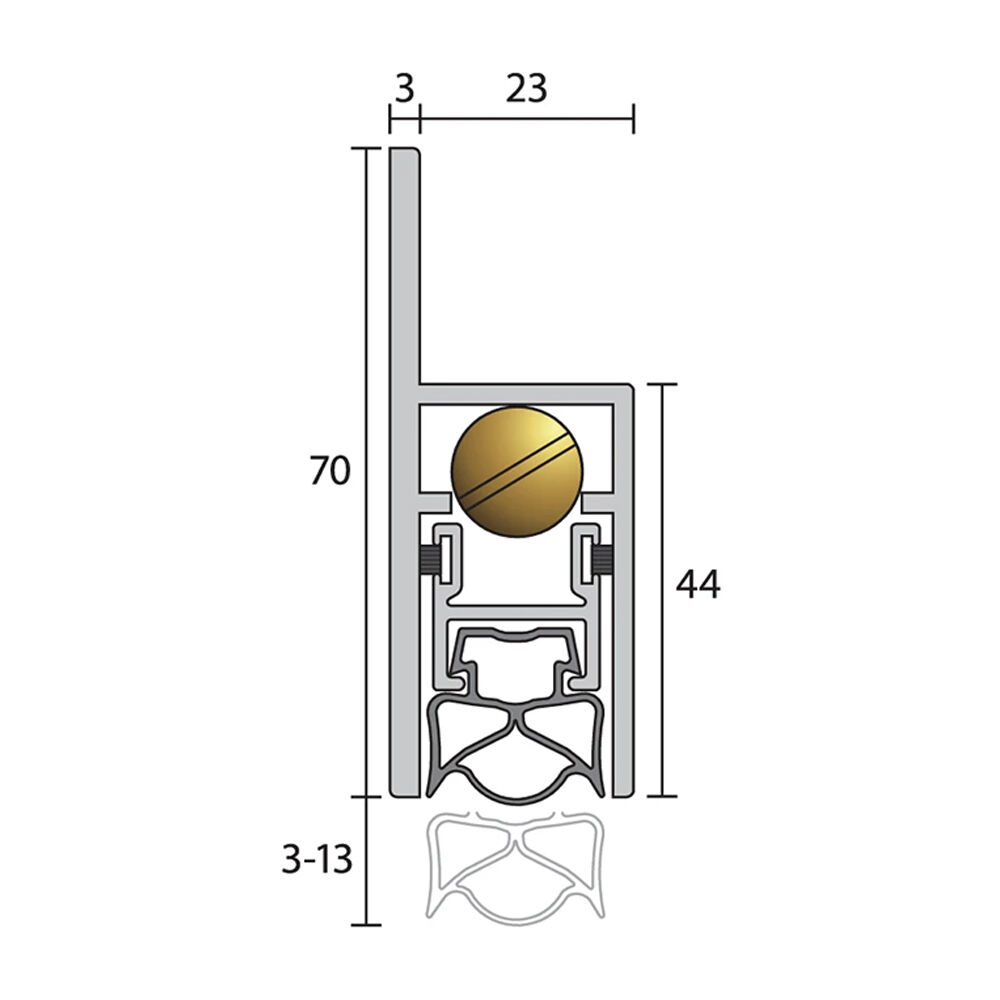

Specifications:

• Min and Max Gap: 3mm - 13mm
• Fixing: Screw Fix
• Inner Height: 70mm
• Outer Height: 44mm
• Projection: 26mm
• Thickness: 3mm
• Length: 920mm
• Finish: Bronzed Anodised

Approvals:

• UL: R37913, Certifire: CF 5710
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NCC S12C2, AS 1530.4, AS 1905.1, NZBC C/AS2 4.16.2
• BS 476 Pt. 20 & 22 (similar to BS EN 1634-1), Approved Document B
• Up to FD240, Up to FRL & FRR-/240/30
• Gasket flammability index 1 when tested to AS1530.2
• NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7, BS EN 1634-3
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Tested to over 1,000,000 operating cycles without failure
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
