Raven RP39 Meeting Stile Seal

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• A refrigeration type vinyl magnetic strip in an anodised aluminium housing

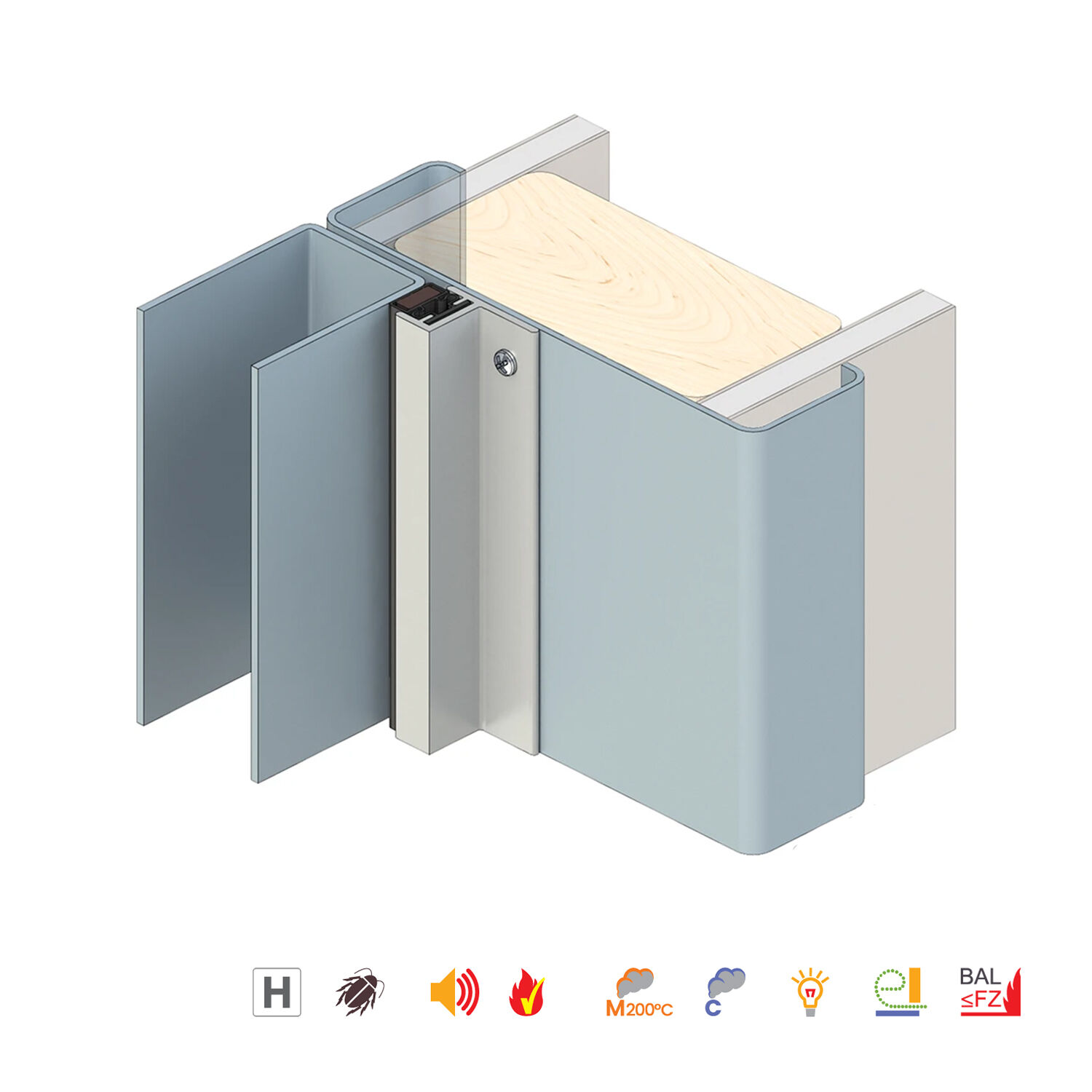

• Provides a tight seal for steel clad doors and jambs and may be used as a stop

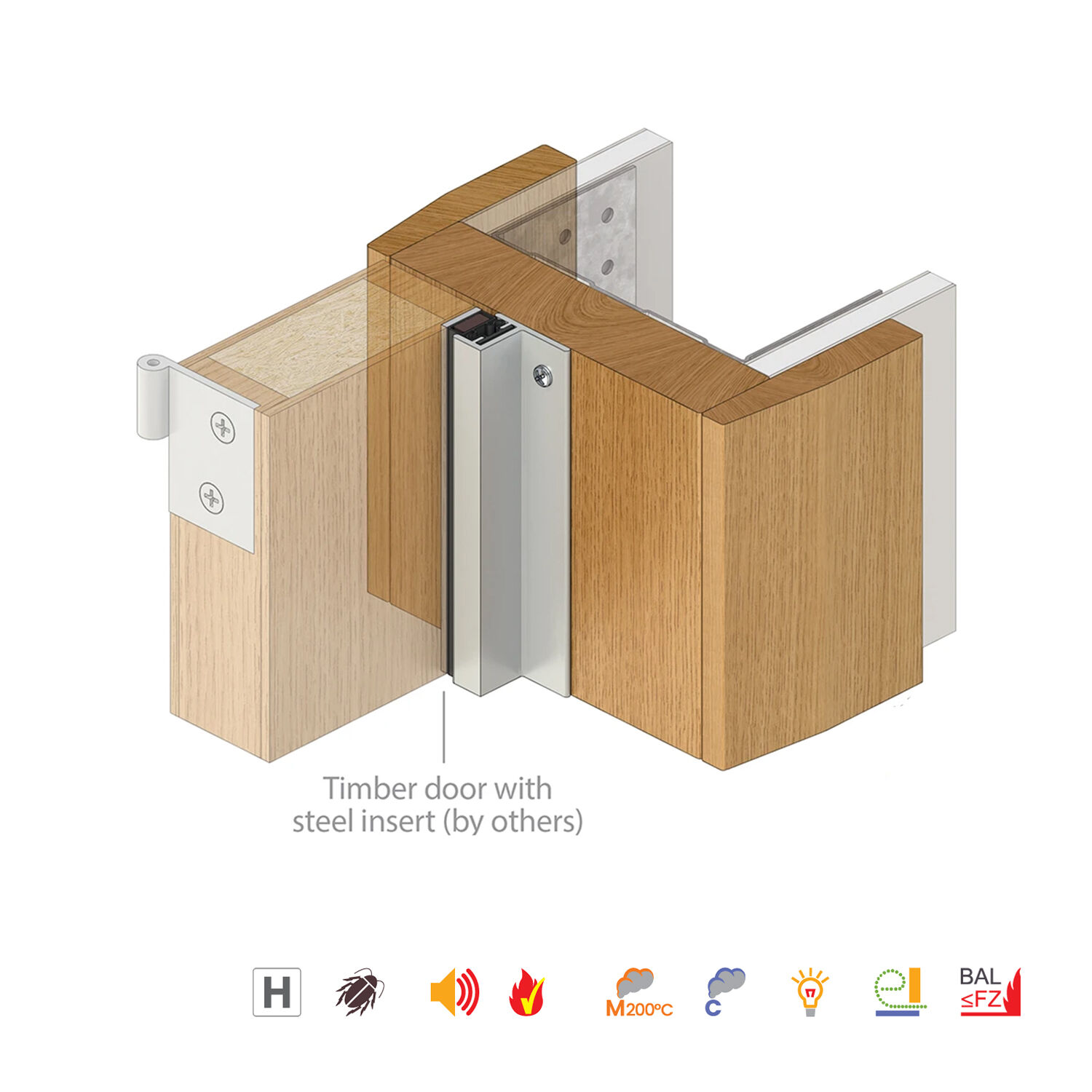

• For timber doors, a thin steel strip can be attached to the door face
• The magnetic strip has sufficient closing strength that latches may not be required
• Provides an astragal for timber and metal doors. It can also be used in pairs on meeting stiles of timber doors
• Suited to infrequent use and door closer hold open applications

Specifications:

• Min and Max Gap: 4mm - 8mm
• Fixing: Screw Fix

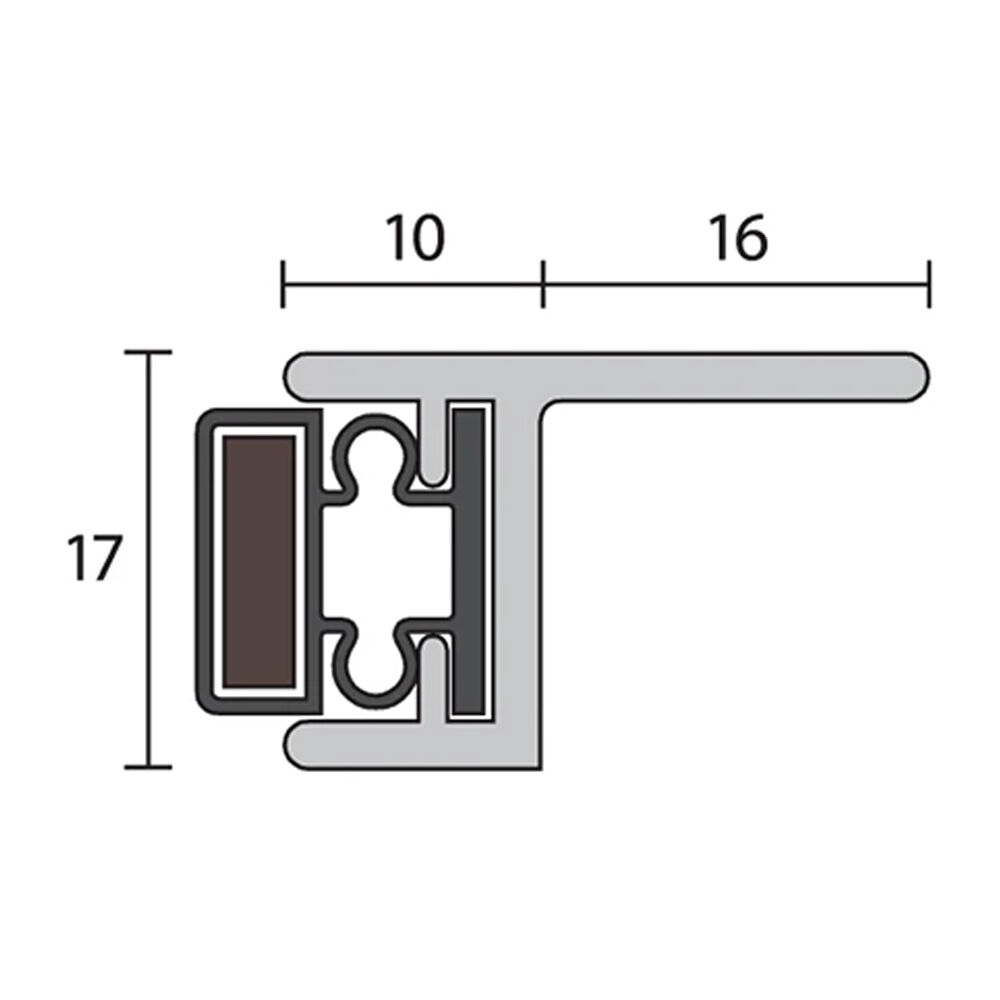

• Width: 26mm
• Projection: 17mm
• Length:
  • 2250mm
  • 2500mm
• Finish: Silver Anodised

Approvals:

• Certifire: CF 5710
• AS 1530.4, NZBC C/AS2 4.16.2(a) & App C6.1.1, NCC S12C2
• Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Up to FD120, Up to FRL & FRR-/120/30
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
