Raven RP4 Storm Proof Door Bottom Seal
R4C

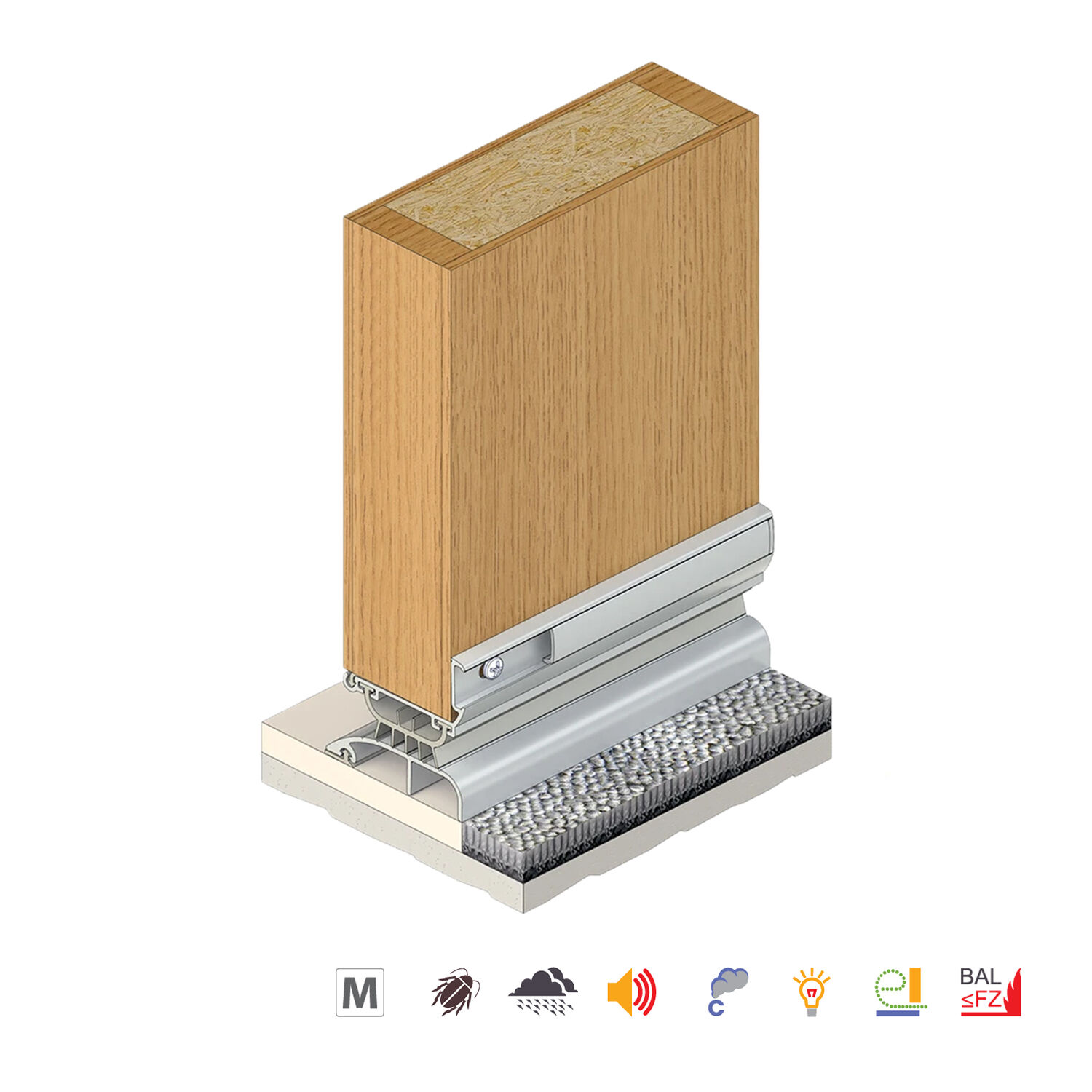

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Weatherproof
• Ideal for single and double butt hinged doors up to 920mm
• Handy fit, fixings included
• For double doors, use two seals
• Quality long life anodised aluminium with UV treated seal gaskets

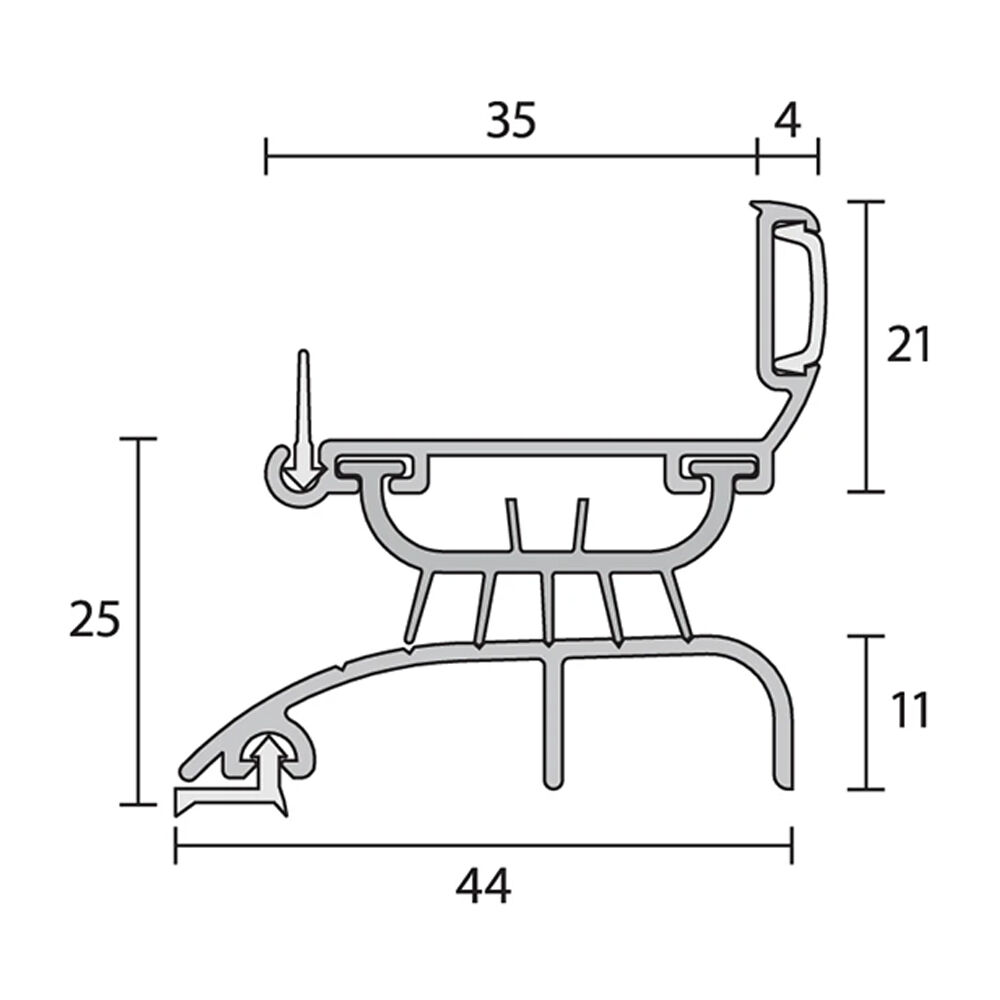

Specifications:

• Min and Max Gap: 23mm - 25mm
• Fixing: Screw Fix
• Lower Width: 44mm
• Lower Height: 11mm
• Top Width: 35mm
• Top Height: 21mm
• Length: 926mm
• Finish: Silver Anodised
