Raven RP41 Brush Strip Seal
A41C3000

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

• Global GreenTag - Bronze
• A nylon brush strip seal with aluminium carrier that is ideal where larger gaps are encountered

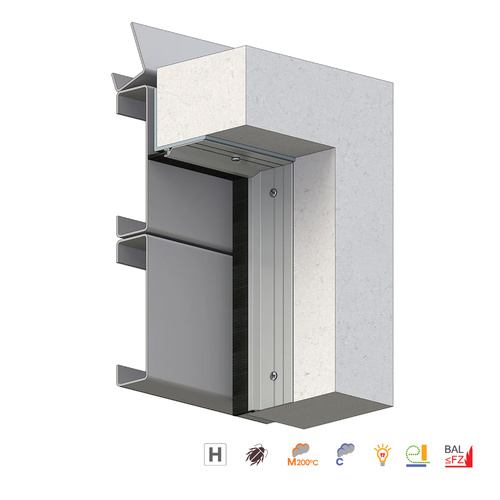

• The RP41 can be fitted to lintels of roll-up doors to help prevent the ingress of birds and wind blown embers in bushfire prone areas

Note: Roll-up doors must have a fairly constant sealing gap when the door operates to avoid excessive flexing of brush filament.

Specification:

• Location: Bottom of single, double, revolving or sliding and double acting pivot doors. Lintels of roll-up garage doors or lintels and stiles of panel-lift garage doors. Suitable for hard, flat surfaces.
• Size: 3000mm
• Fixing: Screw Fixed (Screw fix. Zinc plated, cross recess head S.T. screws supplied)
• Minimum and Maximum Gap: 30mm to 50mm (Gap can be user determined)
• Material: Aluminium (Anodised aluminium with black fine, dense, UV stabilised nylon filaments in a galvanised steel spin)
• Door/Frame Construction: Timber, Aluminium
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot, Revolving
• Finish: Clear Anodosed

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL Statement: BAL FZ when used on a garage in accordance with AS 3959
