RAVEN RP47Si Perimeter Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• A heavy duty seal designed to replace the conventional door stop
• Ideal for medium temperature smoke / fire door applications and has excellent acoustic qualities for heavy traffic areas
• With concealed fixings and adjustable fastener slots to achieve an optimum seal, a space for low voltage cable management can be found behind a tamper proof cover strip
• Can be mitred or butt jointed for a neat installation

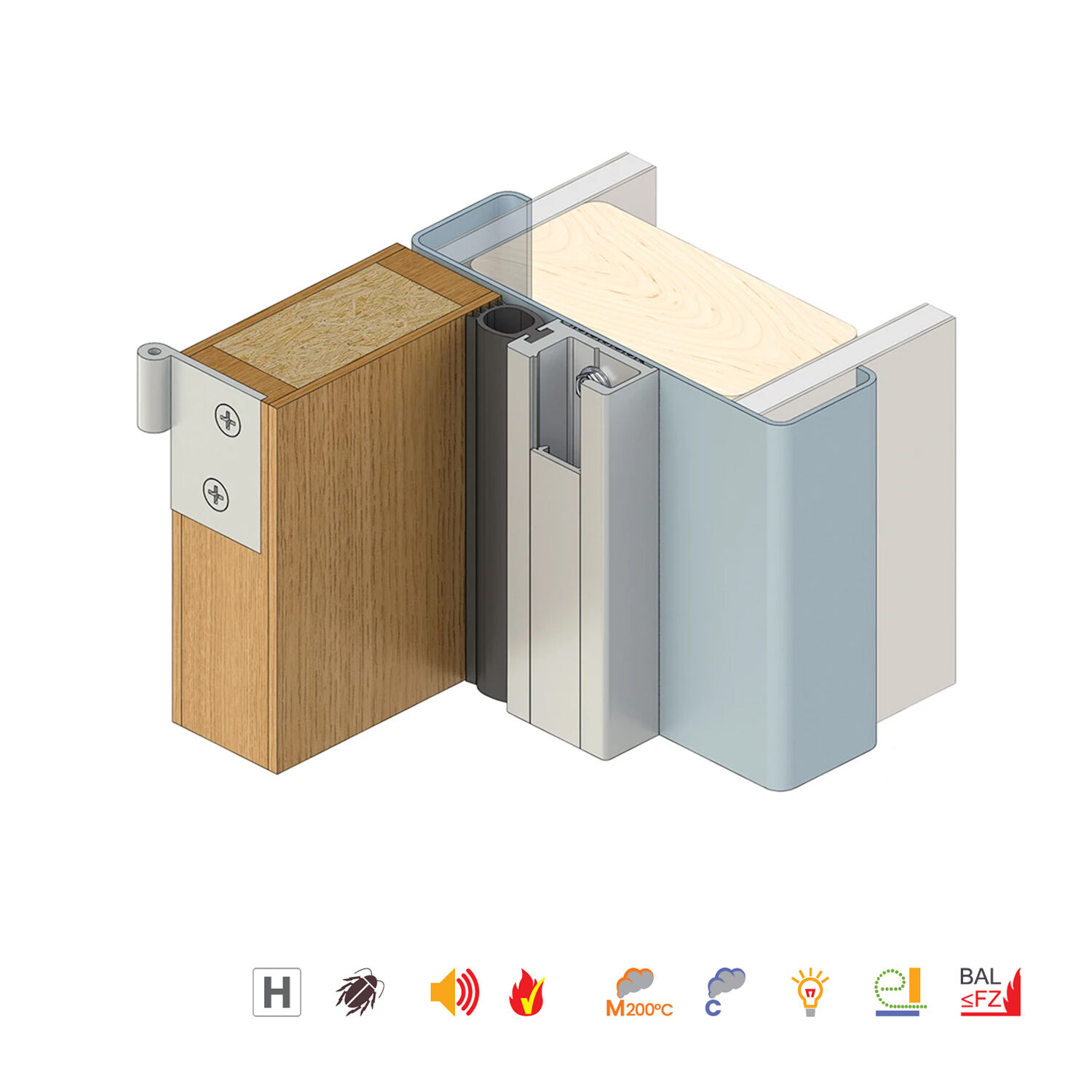

• Can be used on all four sides of the door to form a bulkhead seal

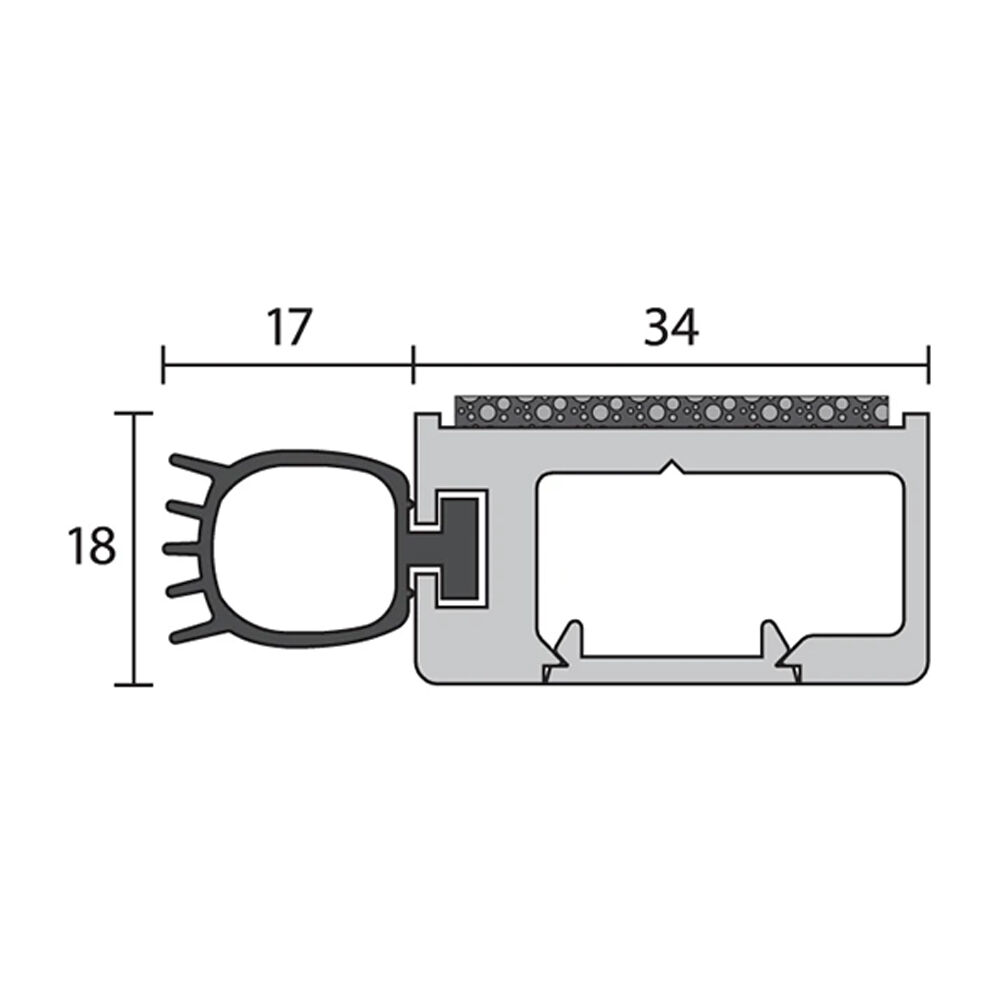

Specifications:

• Min and Max Gap: 0mm - 17mm
• Fixing: Screw Fix
• Width: 34mm
• Projection: 18mm
• Length:
  • 1000mm
  • 2500mm
  • Single Door Set (1 x 1000mm and 2 x 2100mm)
• Finish: Silver Anodised

Approvals:

• UL: R37913, Certifire: CF 5710
• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• NZBC C/AS2 4.16.2(a) & App C6.1.1, NCC S12C2, AS 1530.4, AS 1905.1
• Approved Document B, BS EN 1634-1
• Up to FRL & FRR-/240/30, To be used on door frames with a 25mm stop
• Gasket flammability index 1 when tested to AS1530.2
• NCC S12C4 - Meets smoke leakage rates specified in AS 6905 & EN 13501-2 “Sa”, “S200”, NCC S12C4, AS 1530.7, BS EN 1634-3
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
