Raven RP4T Weather Seal
A4TC1000

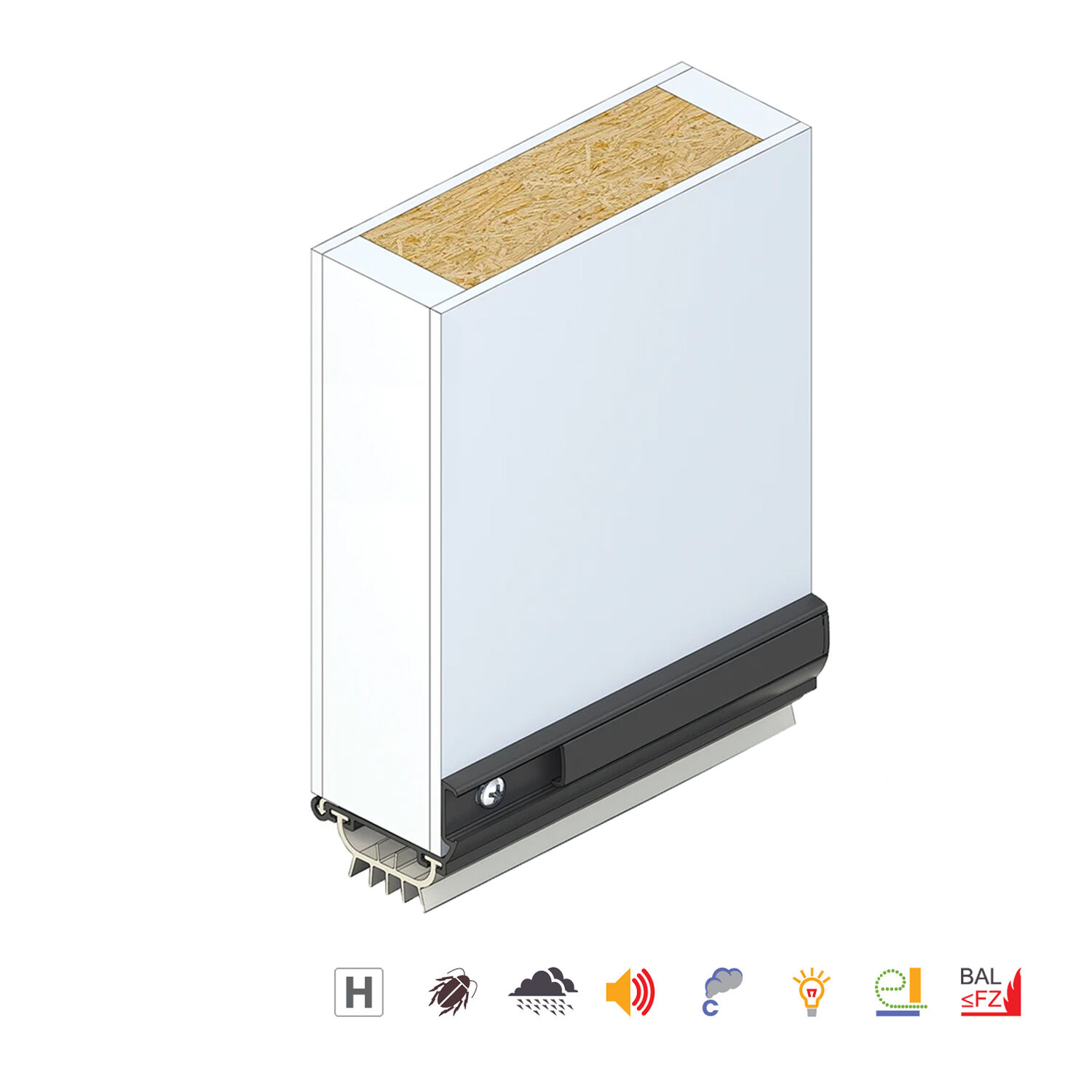

Weather Seal is easily fits to the bottom of a door. It can be used in combination with threshold plates where even greater protection is required.

Weather Seals Function - are components installed on doors, windows, or other openings to block external elements such as Wind, Rainwater, Dust, Cold/Heat, Noise and Insects.

Features:

• Particularly suitable for roll-up garage doors
• Fixings are concealed and its multi-blade seal defies rain infiltration

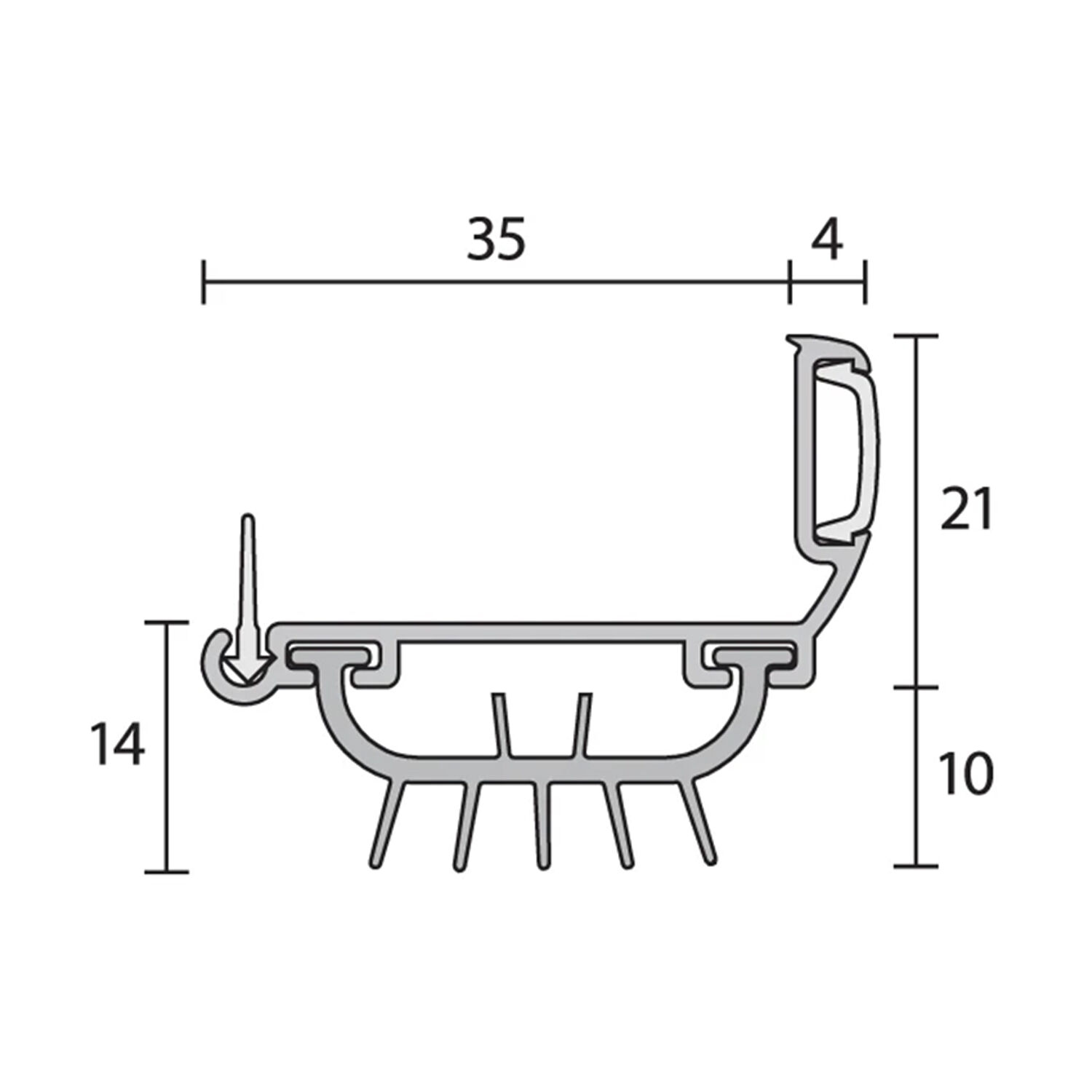

Specifications:

• Min and Max Gap: 14mm - 20mm
• Fixing: Screw Fixed
• Depth: 35mm
• Projection: 4mm
• Height: 21mm
• Length: 1000mm
• Finish: Silver Anodised

Approvals:

• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
