Raven RP5 Bottom Weather Strip Sweep Door Seal
A5C1000

Brush Door Seal can be mounted to fit many angles and spaces. Doors are generally the most common use for weather stripping.

Brush Door Seal Function - are designed to remove leakage between surfaces. To provide the most effective seal possible on a irregular surfaces.

Features:

• Global GreenTag - Platinum

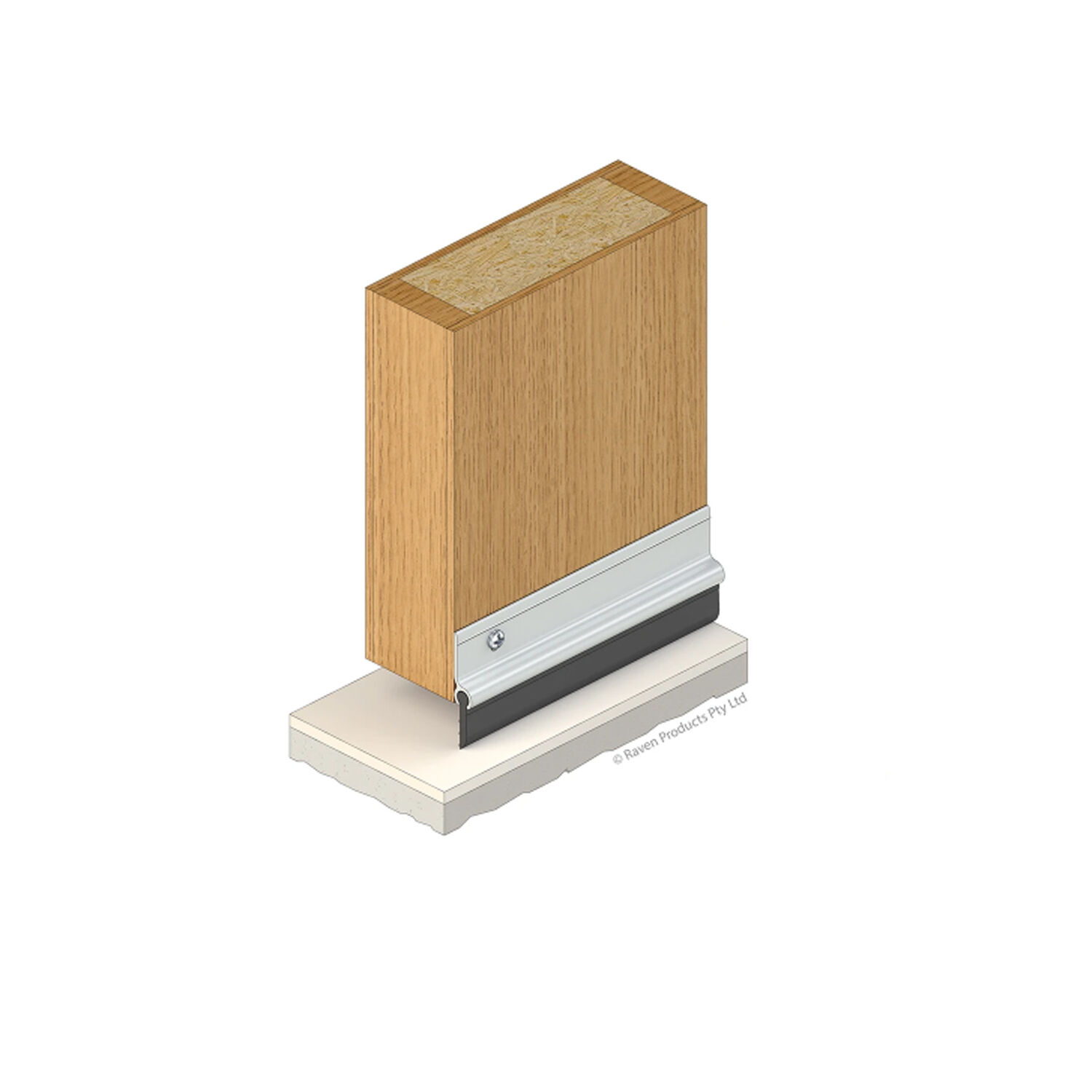

• A Flexible EPDM weather strip sweep seal that fits to the bottom of doors
• Ideal for screen doors and sash windows to prevent insects from entering up the face of the glass.
• Quick and easy to install to the door bottom, being fitted without removing the door.
• Also ideal for garage tilt-up doors.
• Can be used in conjunction with Raven RP13 and RP82 threshold plates.
• Screws supplied

Specification:

• Fixing: Screw Fixed
• Min & Max Gap: 0mm to 15mm
• Material: Anodised aluminium with solid EPDM gasket
• Door/Frame Construction: Timber, Aluminium
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Security Screen, Bi-fold
• Garage Door Type: Tilt-up
• Window Type: Single Hung Sash, Double Hung Sash
• Location: Bottom of doors, sash windows or around stiles of tilt up doors
• Replacement Seals: RP303
• Available Finishes:
  • Bronze Anodized
  • Silver Anodised
• Available Sizes:
  • 1000mm
  • 1250mm
  • 2250mm
  • 3000mm

Approval/s:

• Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
