Raven RP500 Compression Meeting Stile Seals

Meeting Stile Seal is commonly used on double doors in commercial buildings to prevent air, sound, and light from passing through the gap where the doors meet.

Meeting Stile Seal Function - a seal between double doors to block light, sound, smoke, and weather, improving energy efficiency and privacy.

Features:

• A compression seal, made from silicon
• Raven silicon has a high resistance to permanent set (memory)
• It will not absorb water and is resistant to ozone and ultra-violet light deterioration

Specifications:

• Location: Aluminium, PVC or timber door and window frame grooves where dimensions suit.
• Size: 24m coil
• Fixing: Push-in Friction Fit

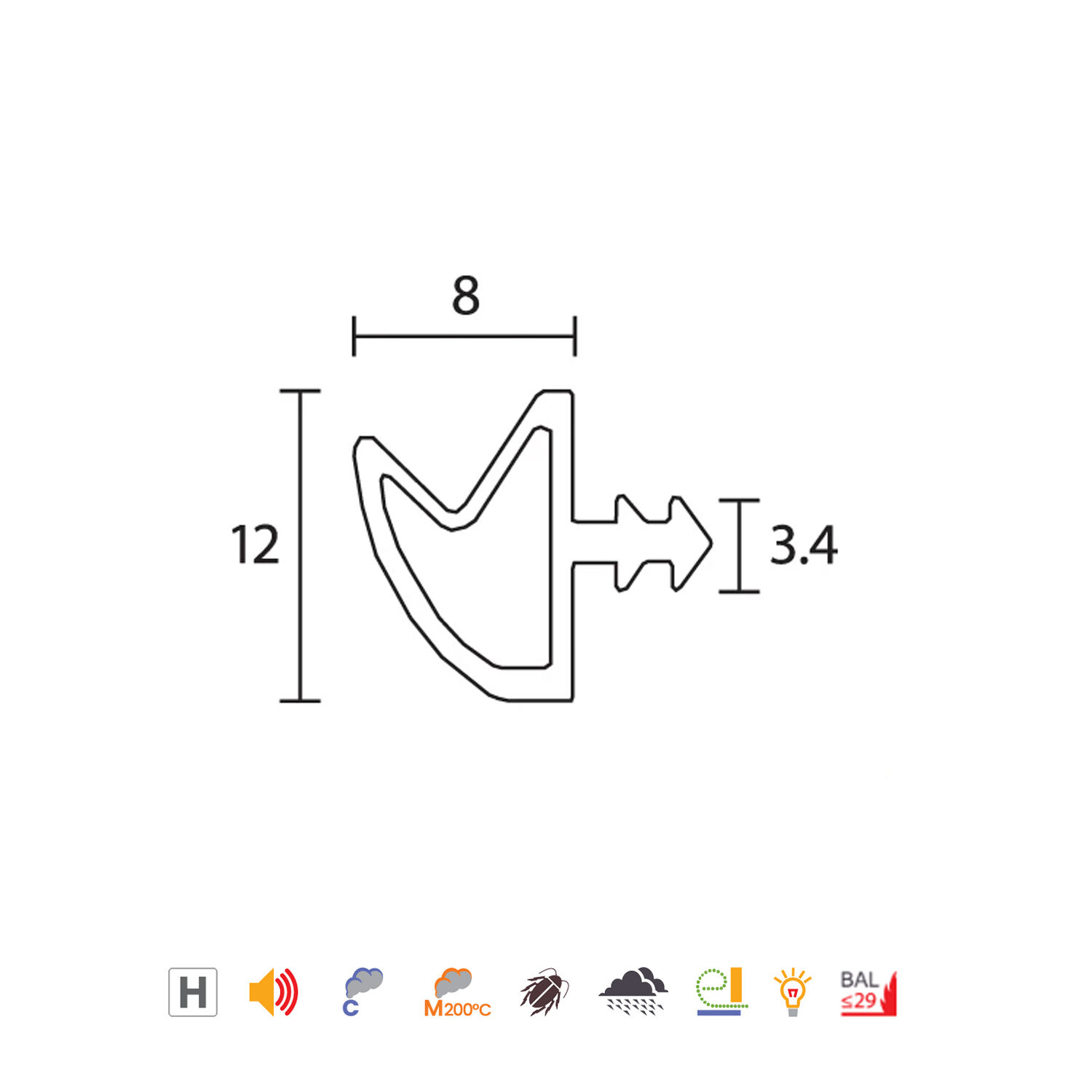

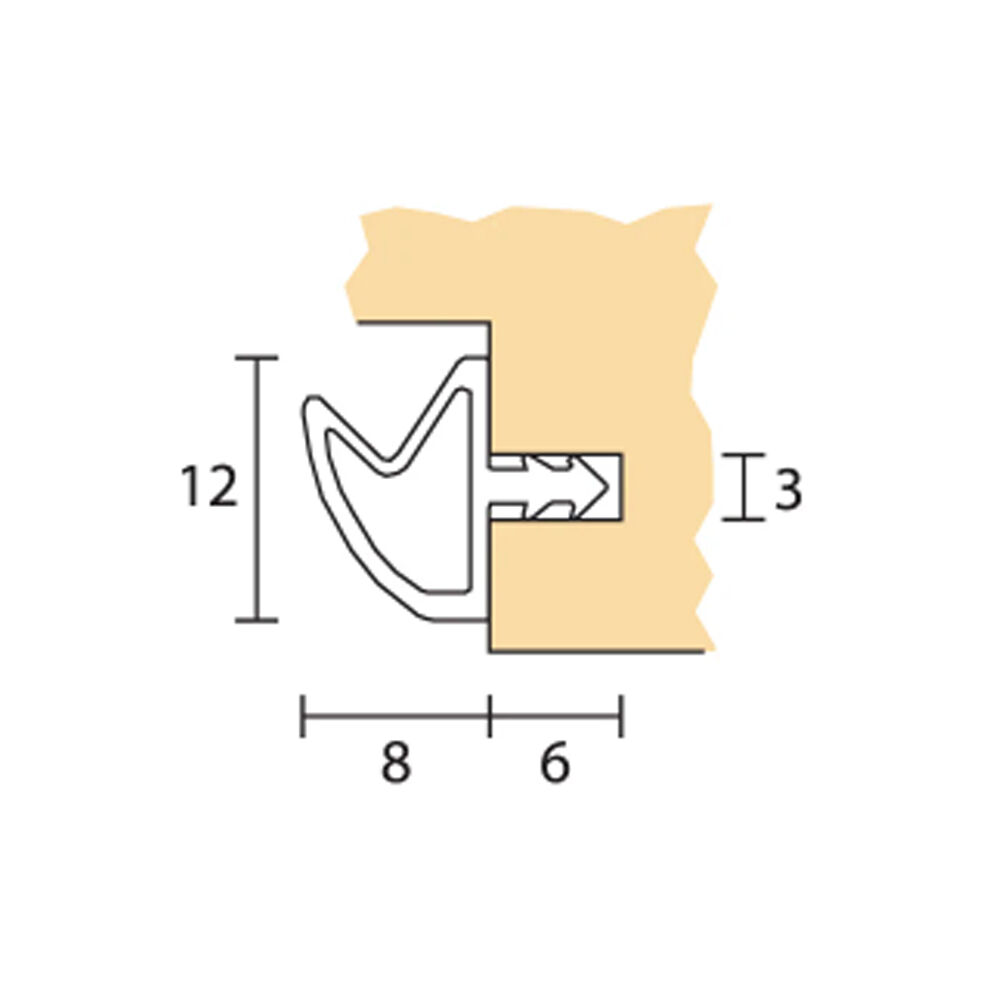

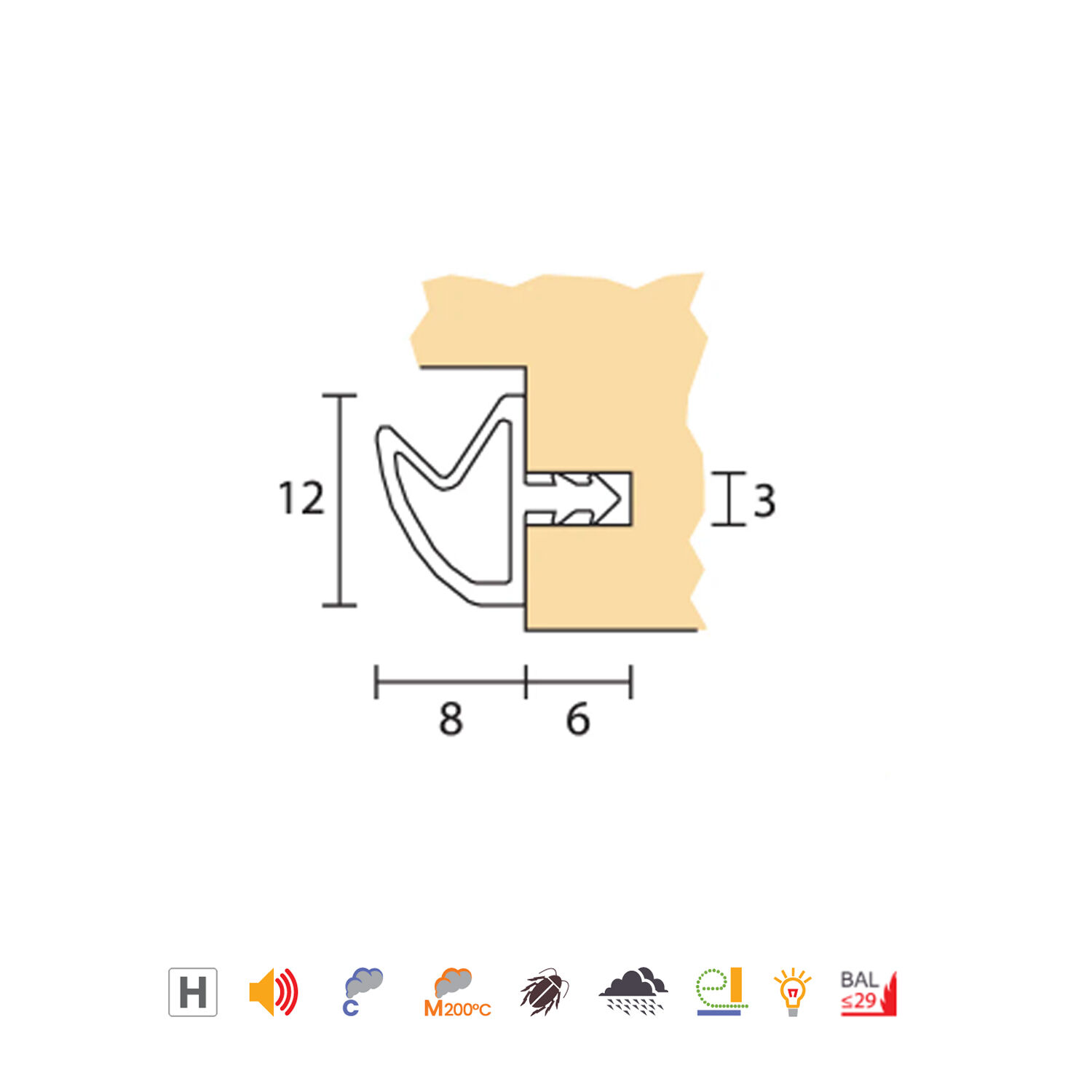

  • Push-in locking fit into a 3mm x 6mm deep kerf groove.
• Min and Max Gap: 5mm to 8mm
  • Compression: 1mm to 3mm
• Material: Silicon Rubber
• Door/Frame Construction: Timber, Aluminum, PVC
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Sliding, Pivot
  • Security Screen
  • Bi-fold
• Window Type:
  • Awning (Outward Opening)
  • Casement (Side Hung),
  • Hopper (Inward Opening)
• Available Finish:
  • Black
  • White

Approvals:

• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Weather AUS/NZ: AS/NZS 1170, NCC various sections, AS 2047, AS 4055, AS 4420 Pt. 0 to 5
• Weather UK/EU: Approved Document L1 & L2, Tests above are similar to BS 5368 & BS 7386
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
