Raven RP510 Meeting Stile Seals
B510BK24

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• A compression seal, made from silicon
• A high resistance to permanent set (memory)
• It will not absorb water and is resistant to ozone and ultra-violet light deterioration

Specifications:

• Min and Max Gap: 3mm - 5mm
• Compression: 1mm - 2mm

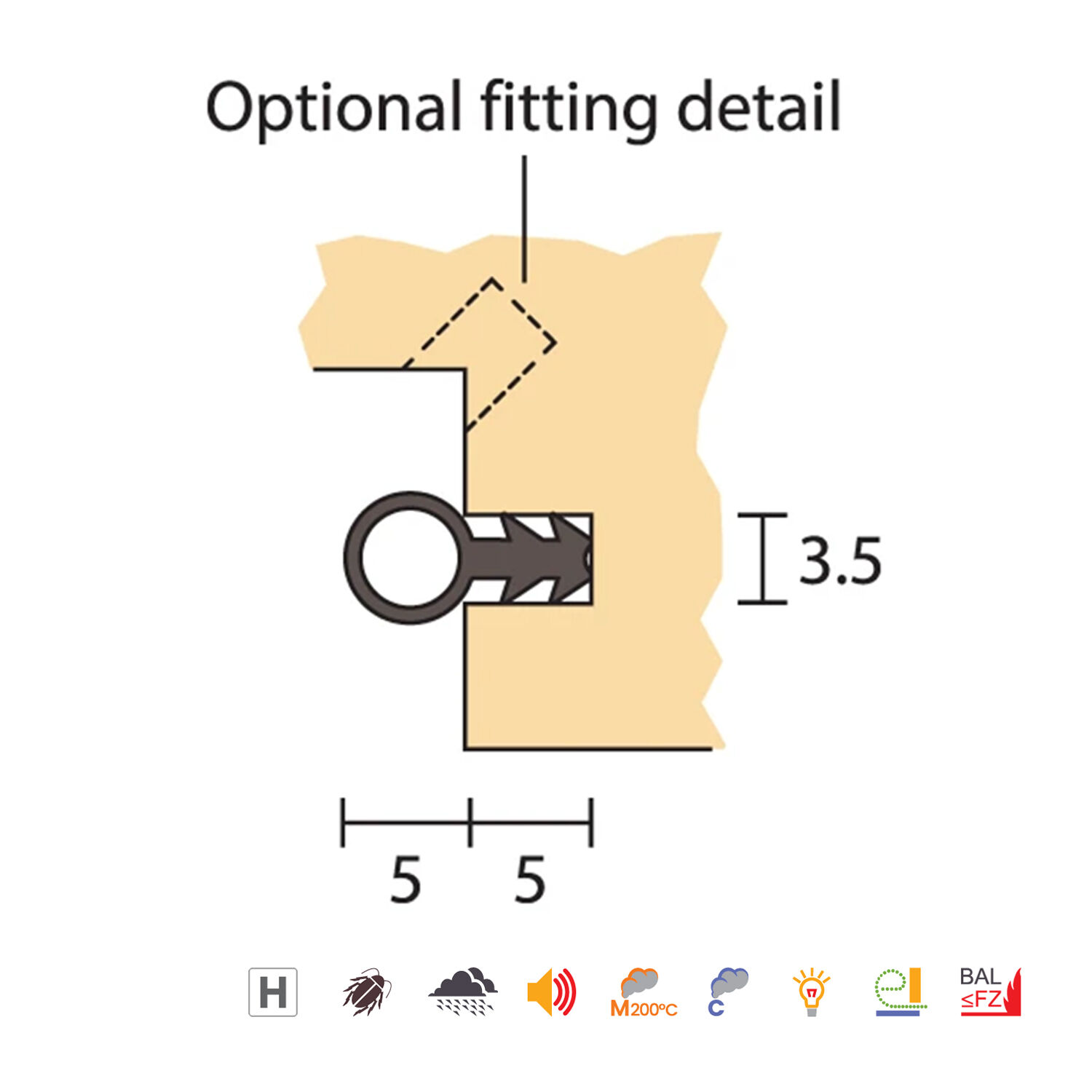

• Fixing: Push-in Friction Fit

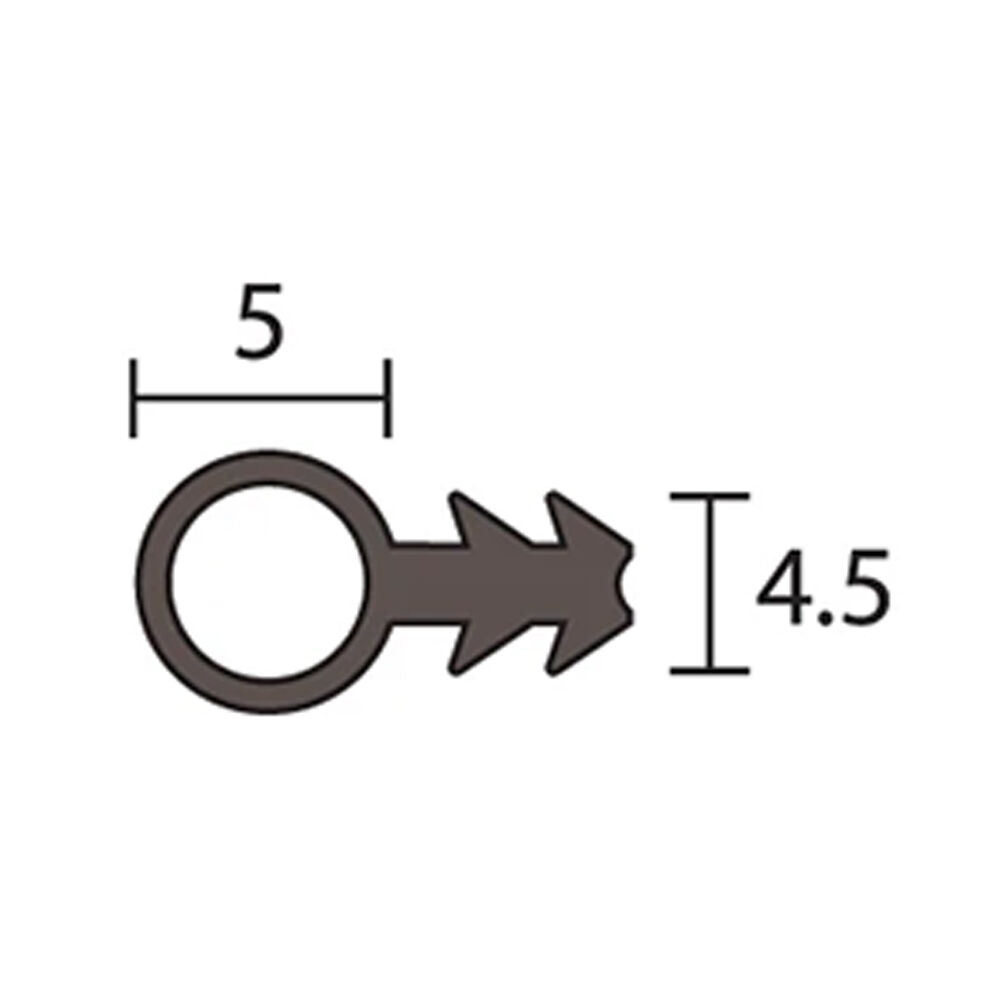

• Depth: 5mm
• Diameter: 5mm
• Kerf Groove Width: 4.5mm
• Length: 2400mm (24m Coil)
• Finish: Black

Approvals:

• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• AS/NZS 1170, NCC various sections, AS 2047, AS 4055, AS 4420 Pt. 0 to 5
• Approved Document L1 & L2, Tests above are similar to BS 5368 & BS 7386
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
