Raven RP520 Meeting Stile Seals
B520W24

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• A compression seal, made from silicon
• Raven silicon has a high resistance to permanent set (memory)
• Will not absorb water and is resistant to ozone and ultra-violet light deterioration

Specifications:

• Min and Max Gap: 5mm - 8mm

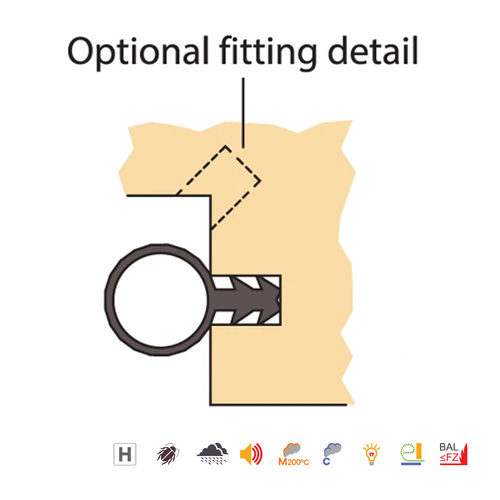

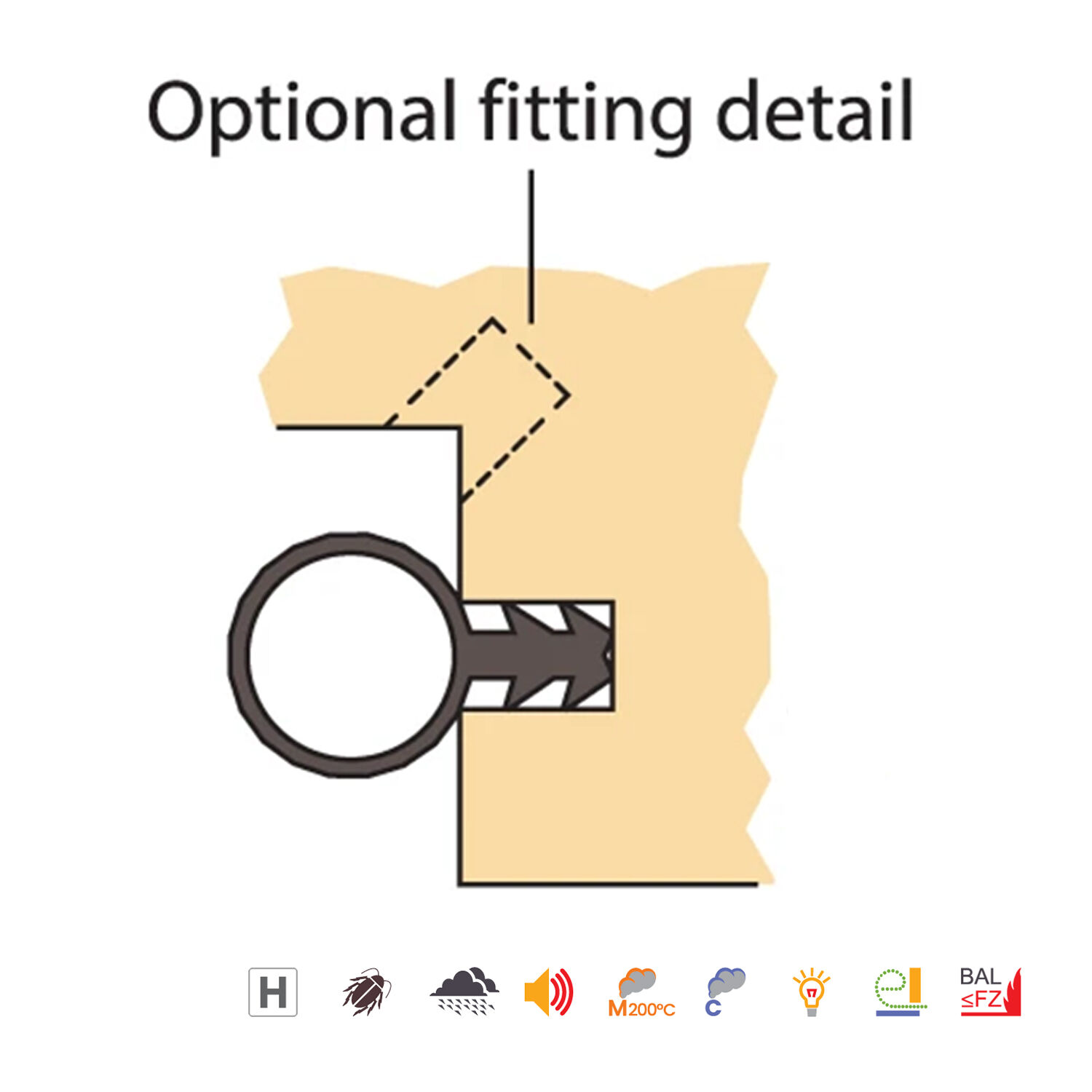

• Fixing: Friction Fit

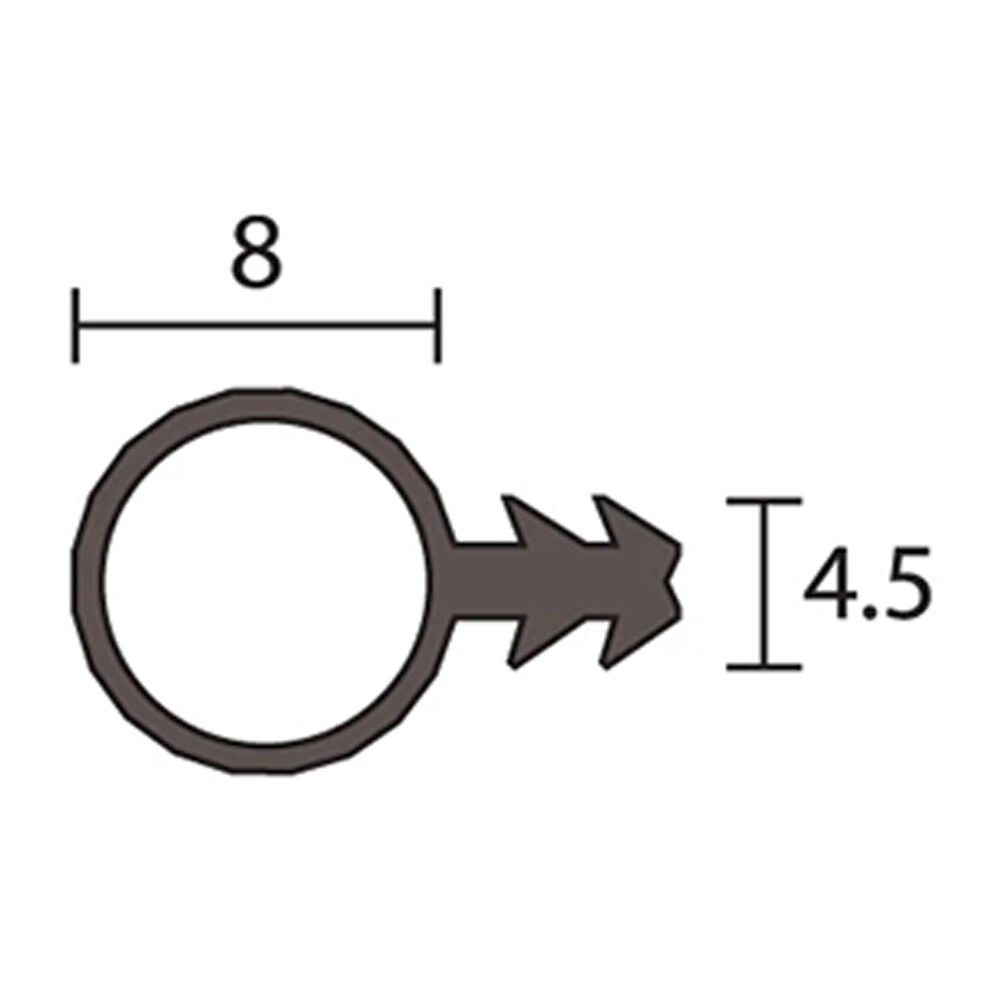

• Depth: 5mm
• Diameter: 8mm
• Length: 2400mm
• Finish: White

Approvals:

• NCC F7D6
• Approved Document E, Rated to BS EN ISO 717-1
• AS/NZS 1170, NCC various sections, AS 2047, AS 4055, AS 4420 Pt. 0 to 5
• Approved Document L1 & L2, Tests above are similar to BS 5368 & BS 7386
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
