Raven RP62 Finger Guard Seal
A62BW2500

Finger Guard Seal used to protect against the terrible injuries that might result from catching fingers in hinged doors.

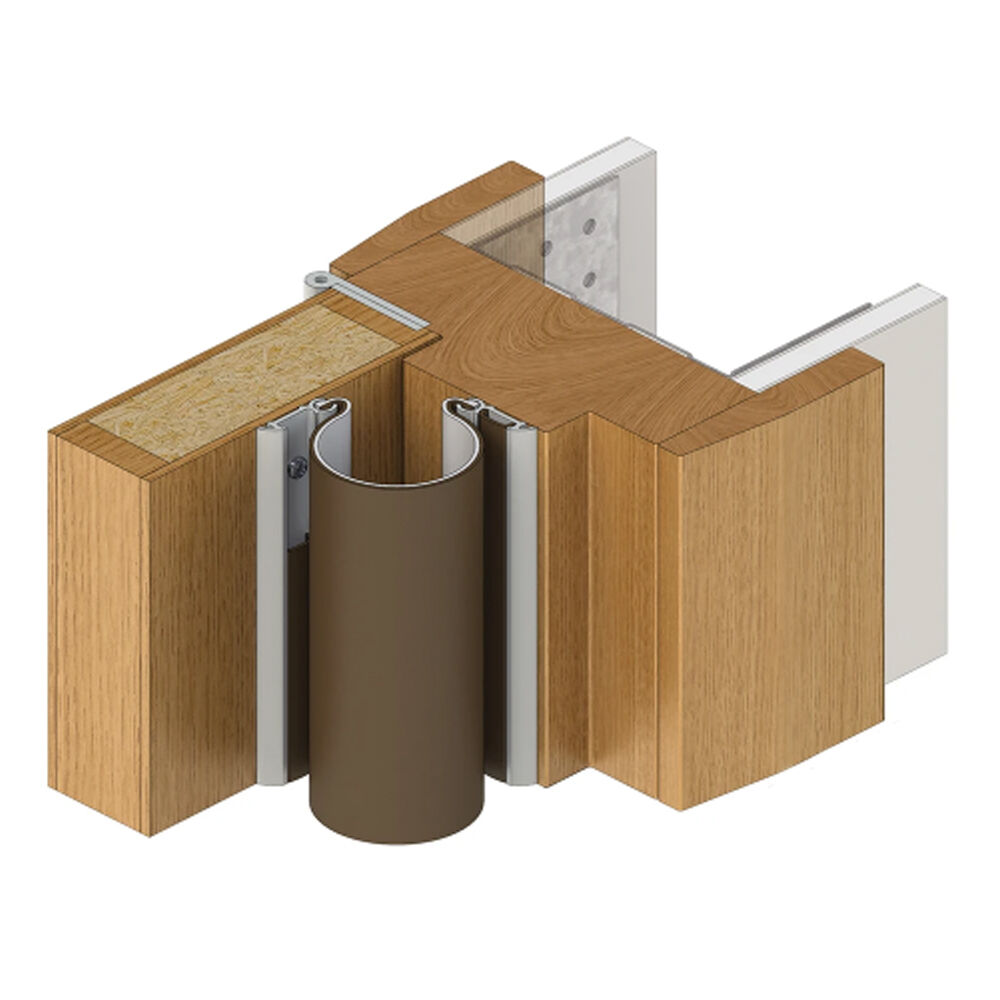

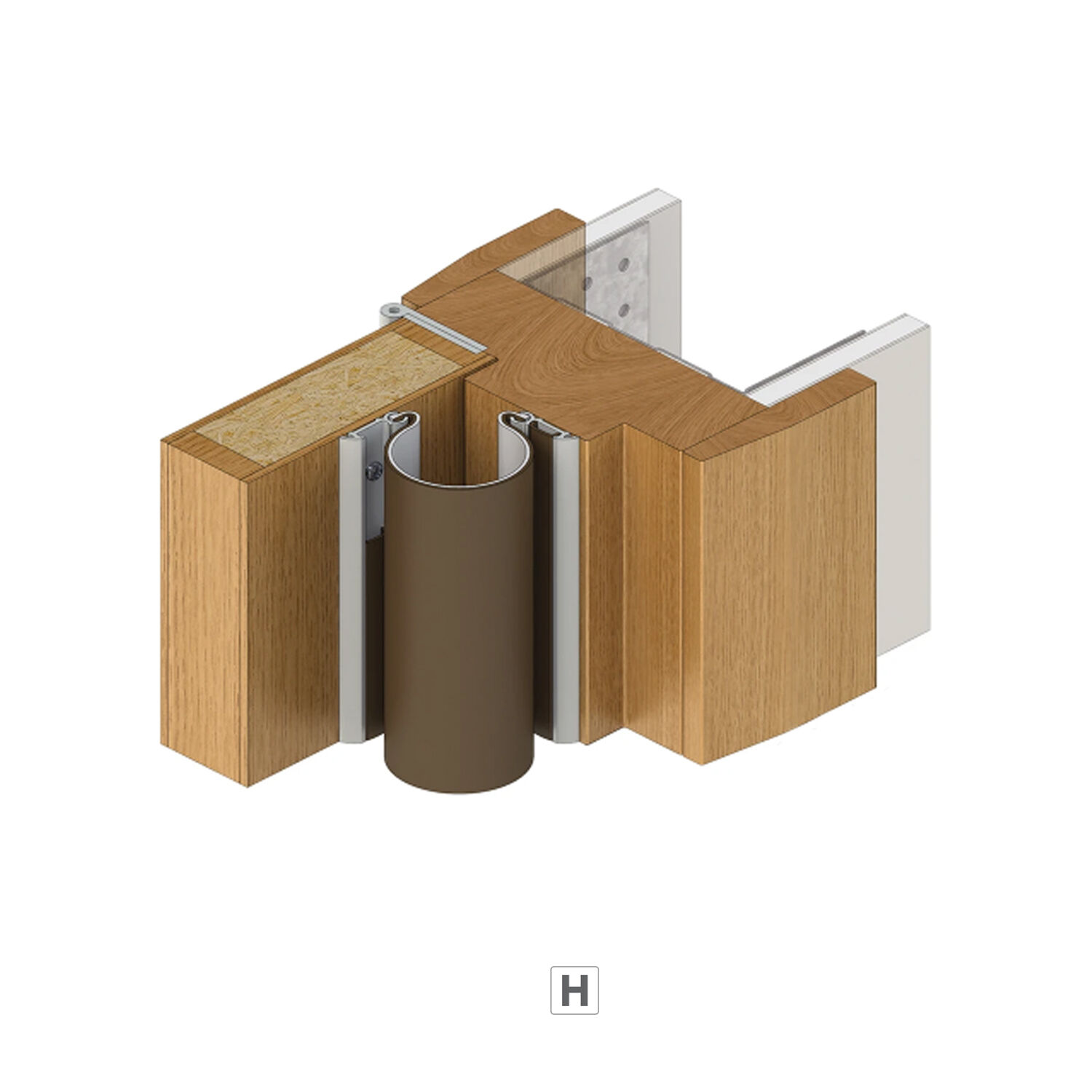

Finger Guard Seal Function - prevents fingers from getting stuck on the door's hinge cavity side. On the side with the hinge cavity, the product is fastened to the door and the jamb.

Features:

• A safety strip which prevents fingers being jammed on the hinge side of a door
• It is fixed to the door and the jamb on the hinged side

Specifications:

• Location: Door and jamb of 0-180 degree opening butt hinged or centre pivot doors.
• Size: 2500mm
• Fixing: Screw Fixed
  • Screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied. Fixing holes are pre-slotted.
• Replacement Seals: RP462 BW
• Door/Frame Construction: Aluminum, Timber
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
  • Pivot
• Finish: Brown / White

Please Note:

• It is recommended to fit RP62BW to the full height of the door/jamb for maximum protection. For longer lengths, butt join together.
• RP62BW is reversible for a brown or white finish.

Approvals:

• Durability: Tested to BS 8613:2017 Class 1 Finger protection devices for pedestrian doors, Tested to over 200,000 operating cycles without failure.
