Raven RP69 Door Perimeter Seal

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

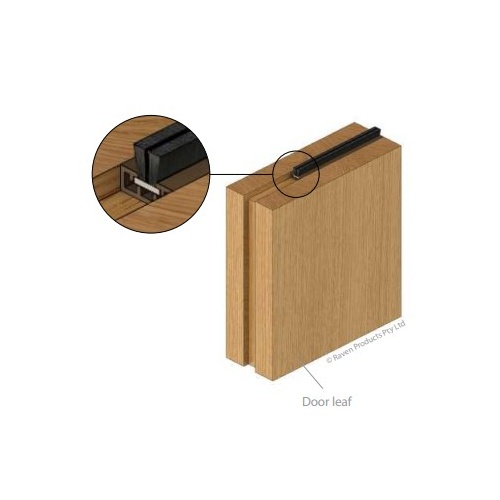

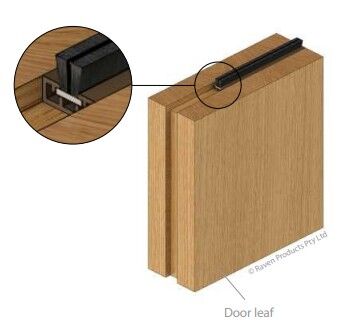

• A woven pile sweep seal designed to fit into a groove around the perimeter of a timber door or frame to reduce air movement
• This unobtrusive seal is discrete in appearance and does not restrict the doors operation
• The RP69 can be used in conjunction with Raven automatic door bottom seals and brush strip seals
• Global GreenTag - Platinum

Specifications:

• Location: Perimeter of internal timber doors or frame.
• Fixing: Adhesive Fixed (Adhesive fix (by installer) into a 10mm x 6mm groove)
• Minimum and Maximum Gap: 3mm to 4mm
• Replacement Seal: RP71PP
• Material: Rigid PVC (Rigid PVC holder with black polypropylene pile with felt weather fins)
• Door/Frame Construction: Timber
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Sliding, Pivot
• Available Sizes:
  • 2250mm
  • 2500mm
  • 3000mnn
• Finish: Bronze

Note: Check latching requirements.

Approvals:

• Energy AUS/NZ"ABCB Housing Provisions Standard: 13.4.4, NCC J5D5
