Raven RP7 Weather and Acoustic Frame Seal
R7W

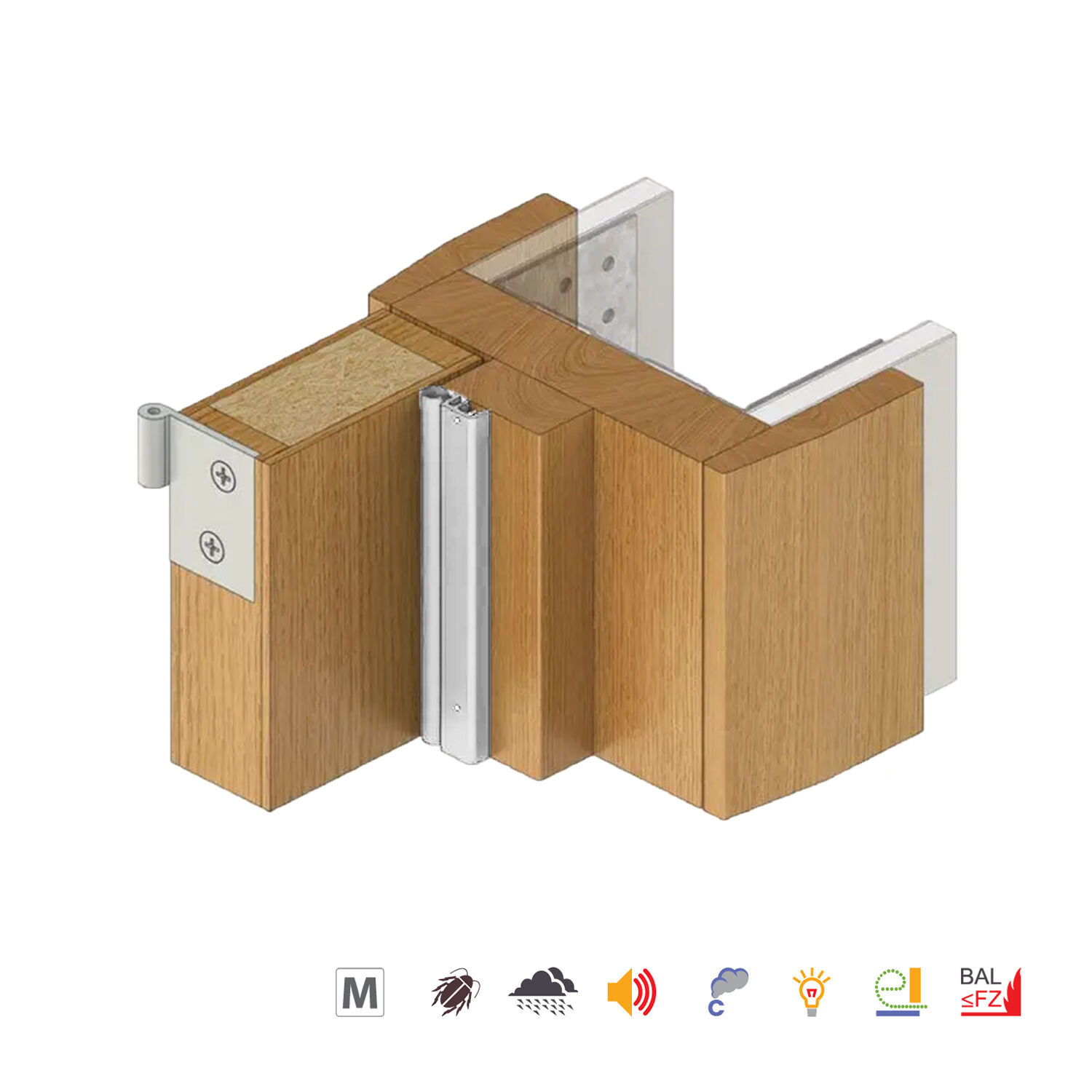

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.

Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.

Features:

• For around hinged doors or windows
• Rigid & Flexible PVC construction
• Can be painted
• Nails included

Specifications:

• Max Gap: 7mm
• Compression: 1mm - 3mm
• Fixing: Nailed

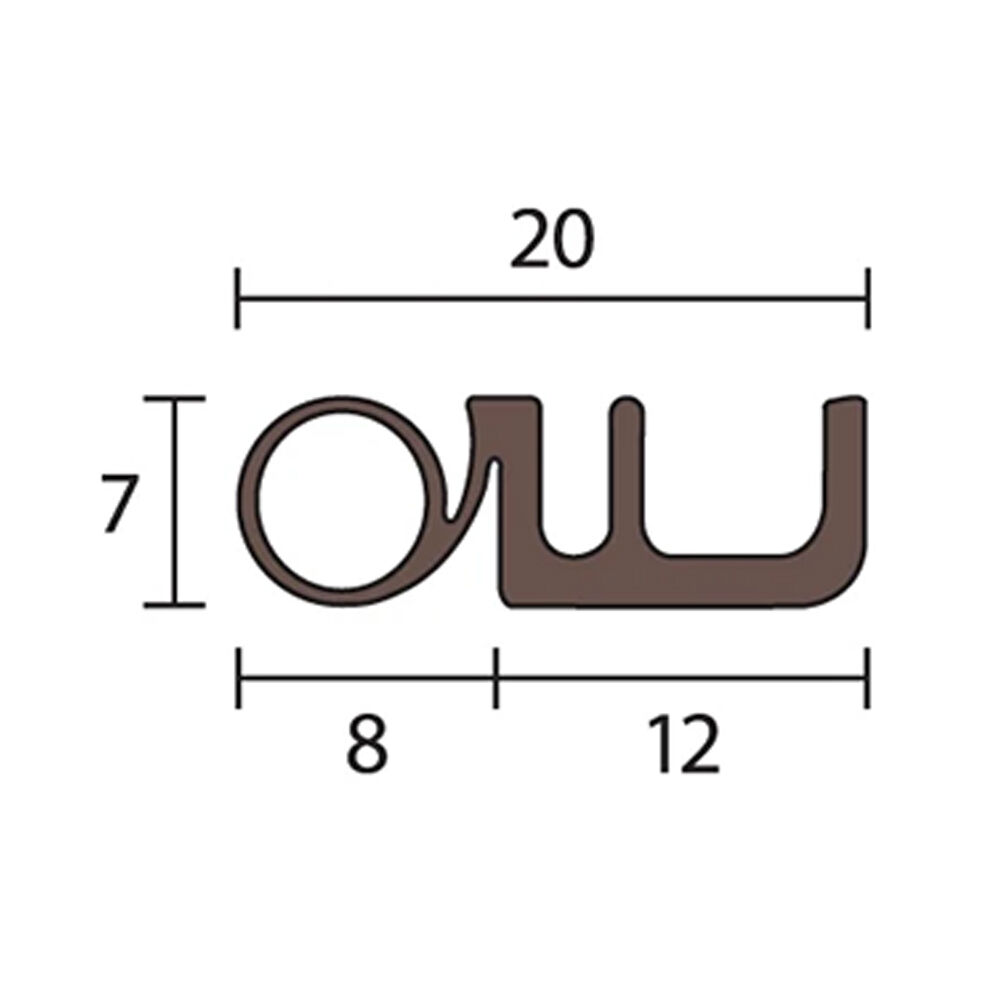

• Width: 12mm
• Projection: 7mm
• Length: Single Door Set (1 x 1000mm and 2 x 2100mm)
• Finish: White
