Raven RP71Si Astragal Meeting Stile Seal

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

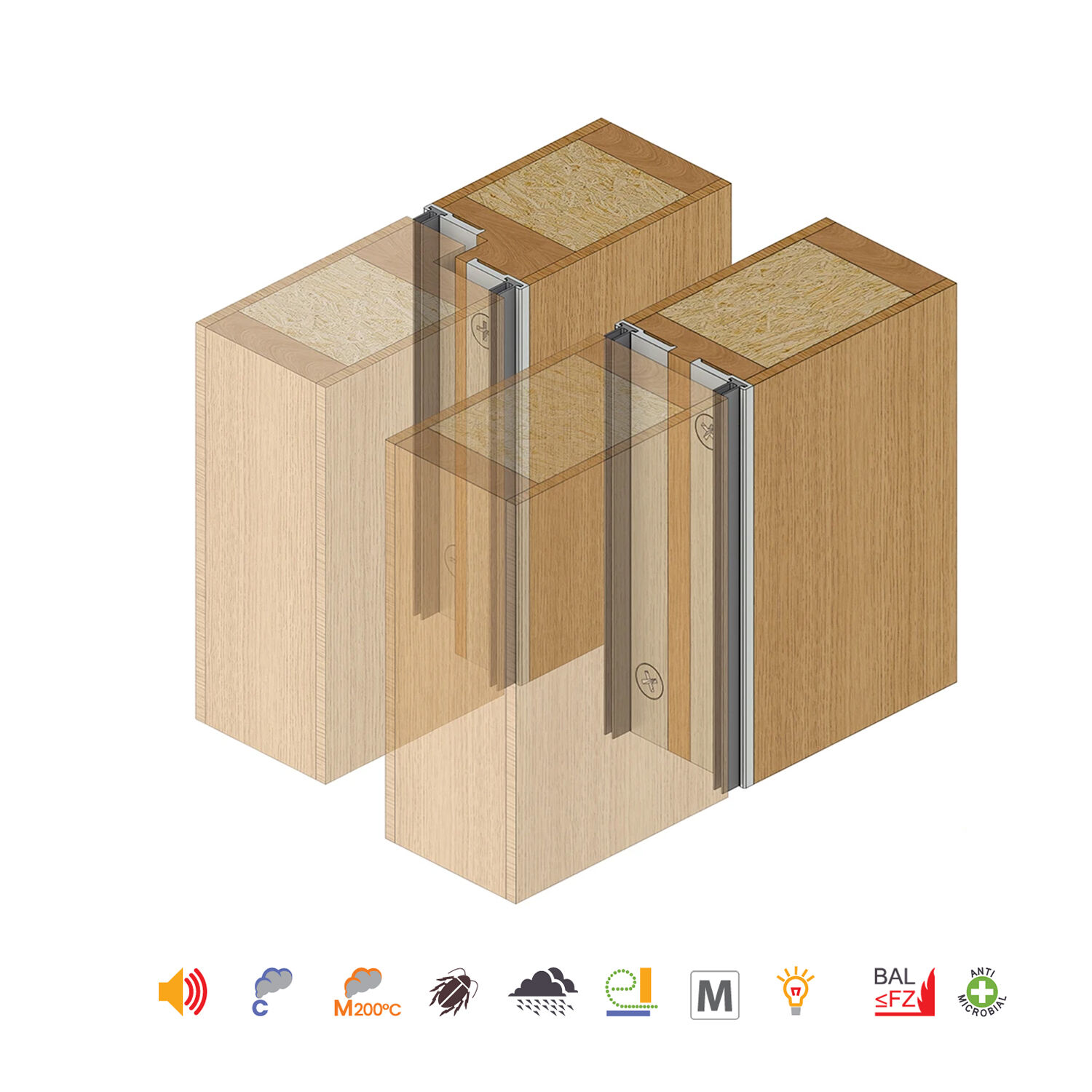

• Two RP71Si seals are installed on to the one door stile which allows space for a latch between the two seals.

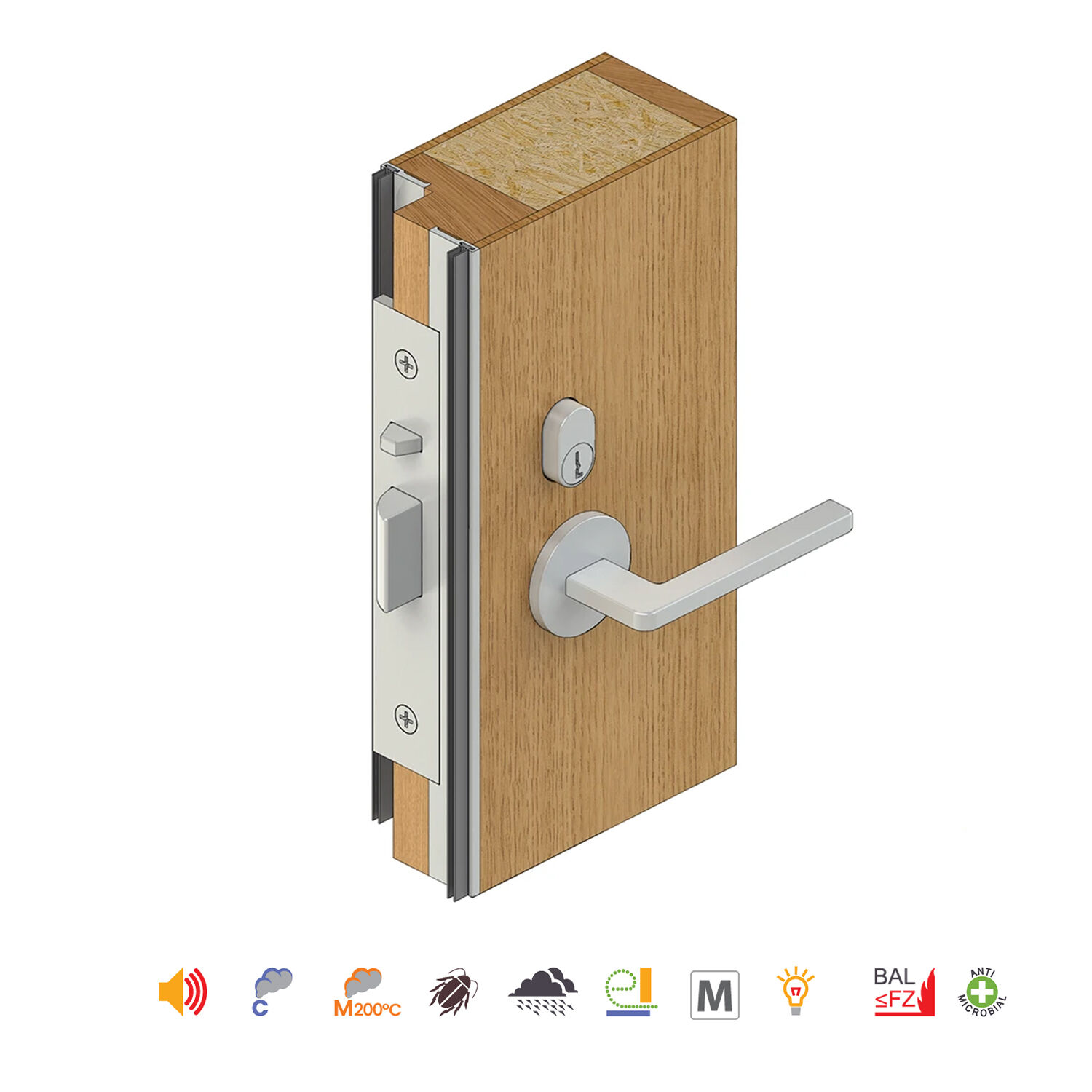

• The legs of the seals can be checked out to accommodate the latch bolt front plate providing a continuous seal.

Specifications:

• Door/Frame Construction: Timber
• Door Type: 1Double Inward Opening, Double Outward Opening, Pivot

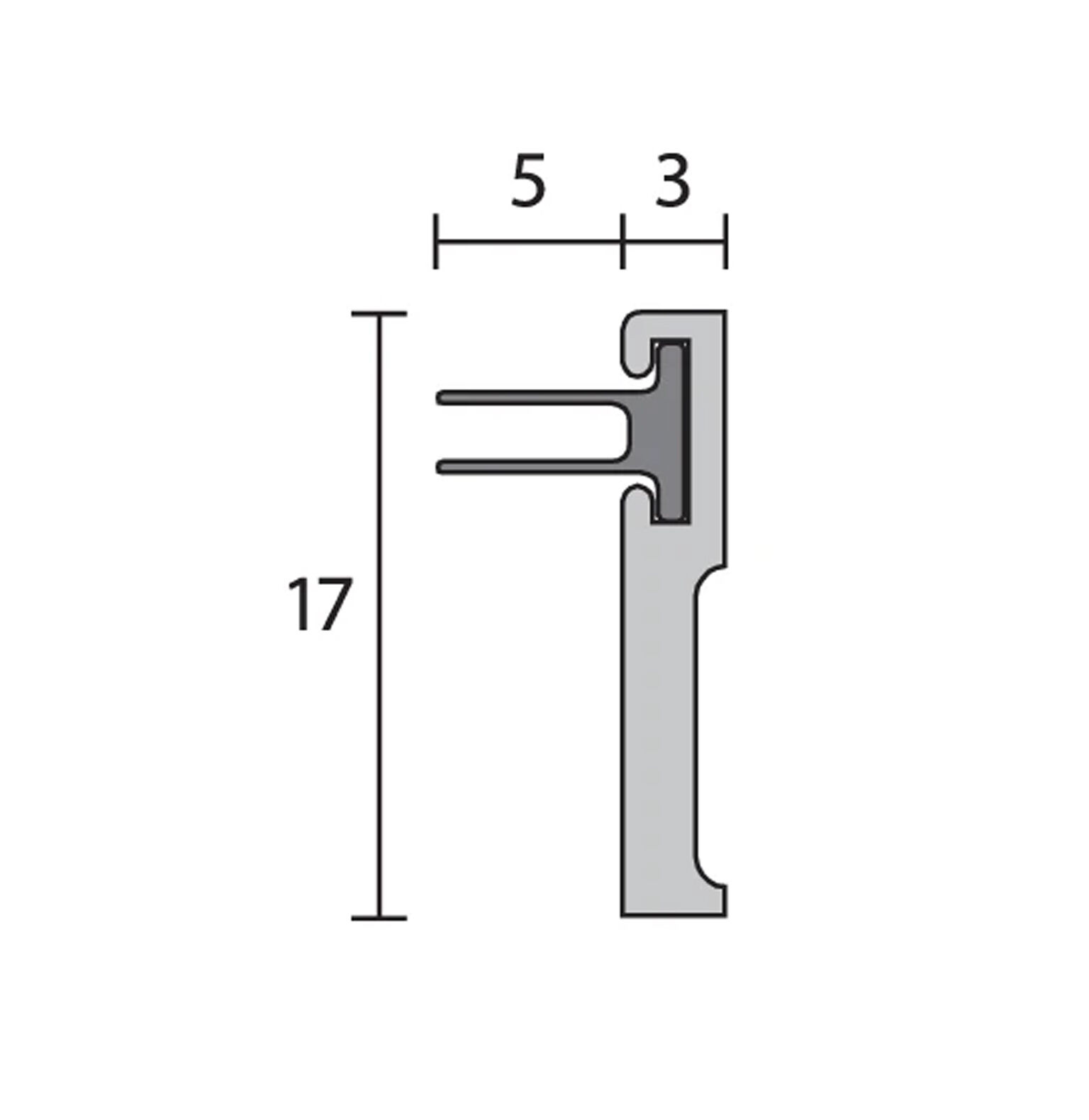

• Minimum and Maximum Gap: 3mm to 5mm
• Replacement Seals: RP371Si BK, RP371Si GR
• Material: Aluminium (Anodised aluminium with silicon rubber (SE) gasket)
• Available Sizes:
  • 2250mm
  • 2500mm
  • 2750mm
  • 3000mm
• Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Access and Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access and Mobility UK/EU: Approved Document M
• Accreditations: ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) andamp; App C6.1.1, AS 1530.4
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 andamp; 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FD180, Up to FRL andamp; FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
