Raven RP73 Meeting Stile Seals
A73

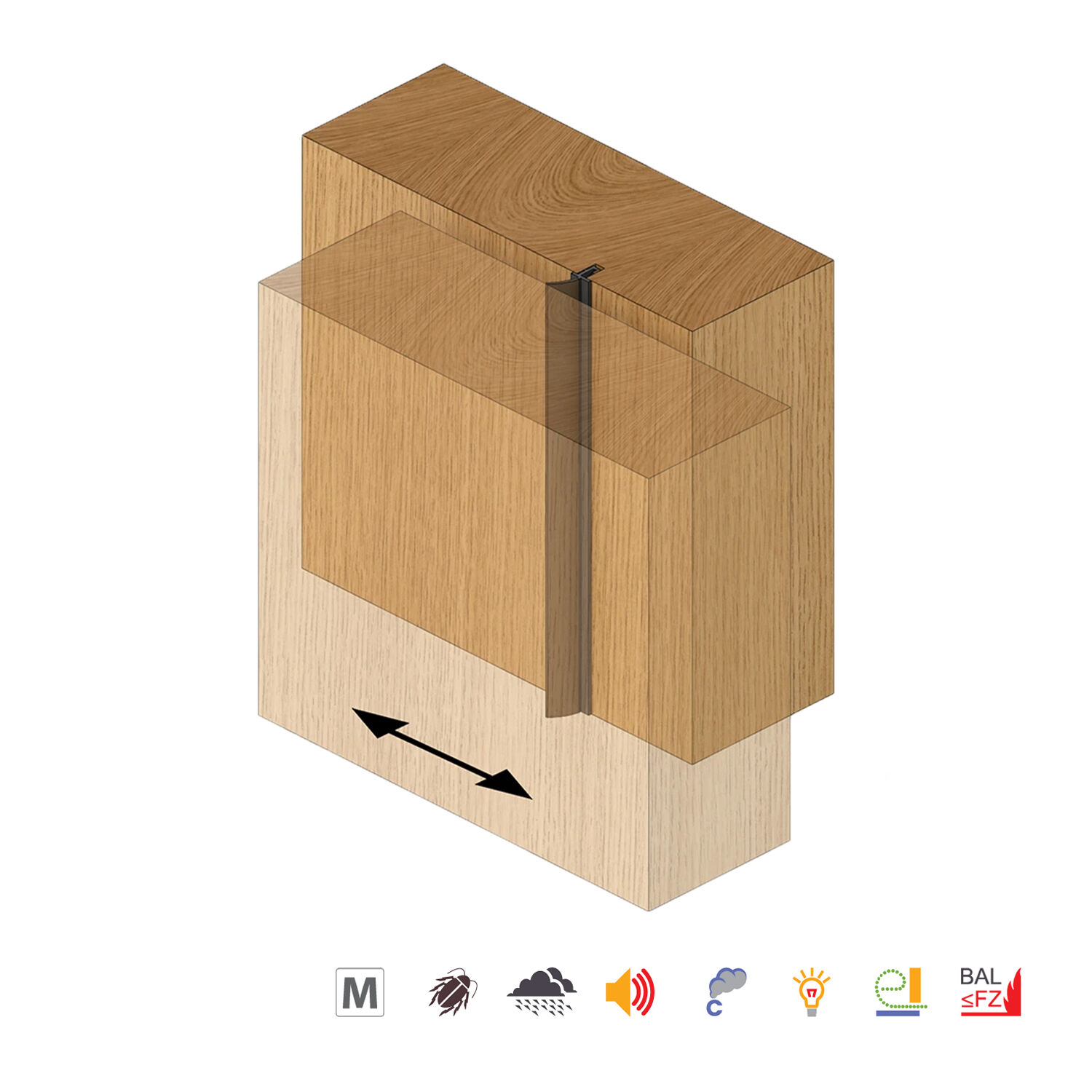

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

  • An extremely Flexible co-extruded PVC sweep seal that fits into a saw kerf groove cut into the frame or door
  • Holds tight radii and compound curves when bent around a frame. It resists UV, ozone, mildew and colour change
  • The RP73 can be used in conjunction with Raven automatic door bottom seals and brush strip seals

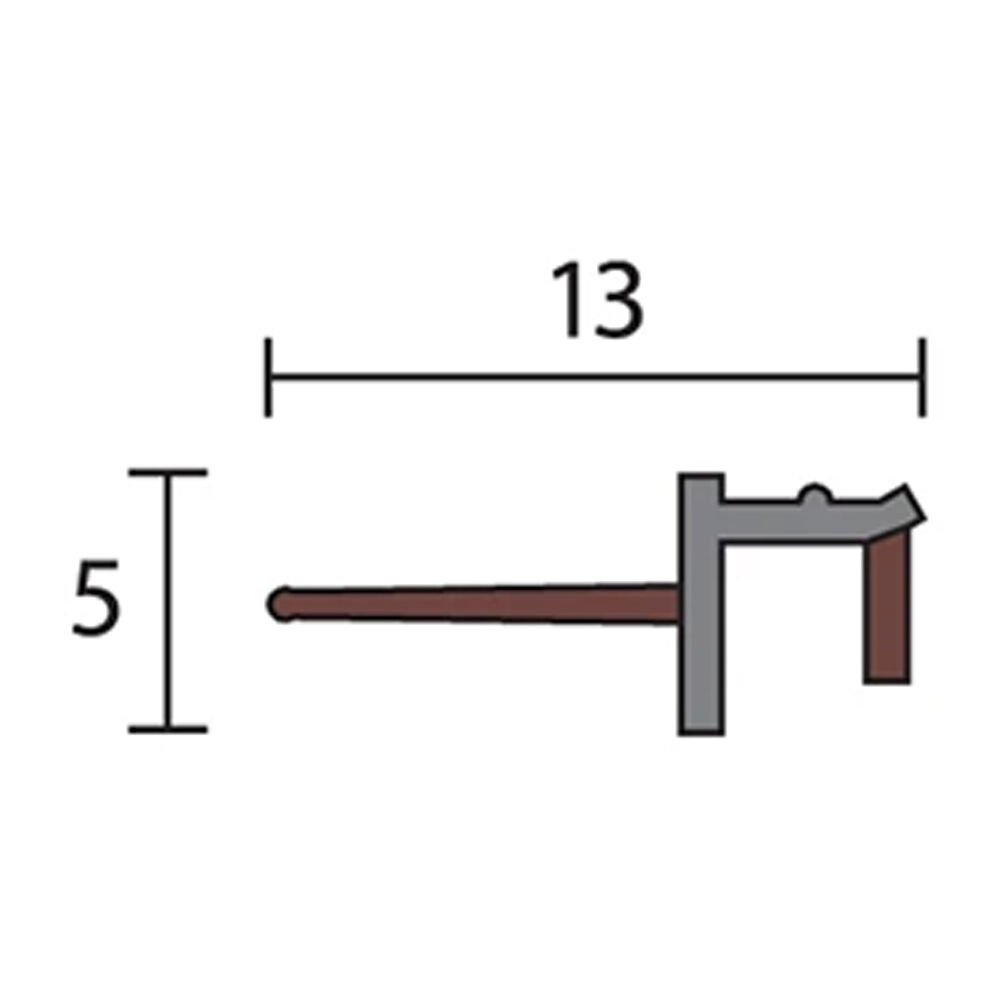

Specifications:

  • Min and Max Gap: 6mm - 8mm
  • Fixing: Friction Fit
  • Width: 5mm
  • Depth: 6mm
  • Length: 1000mm
  • Finish: Brown

Approvals:

  • ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
SKU RAVA73
Barcode # 9310459032851
Brand Raven
