Raven RP74 Door Bottom Sweep Seals

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

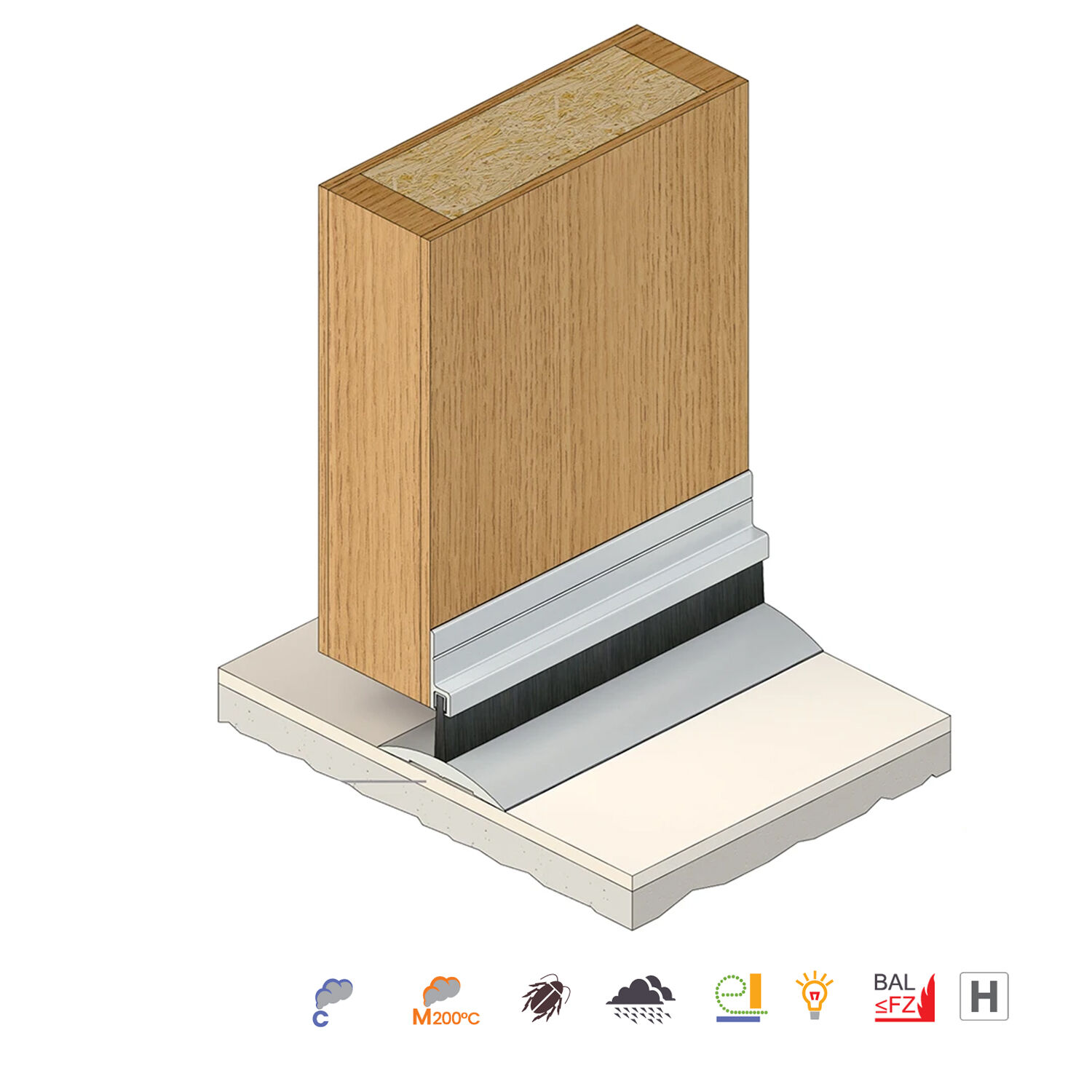

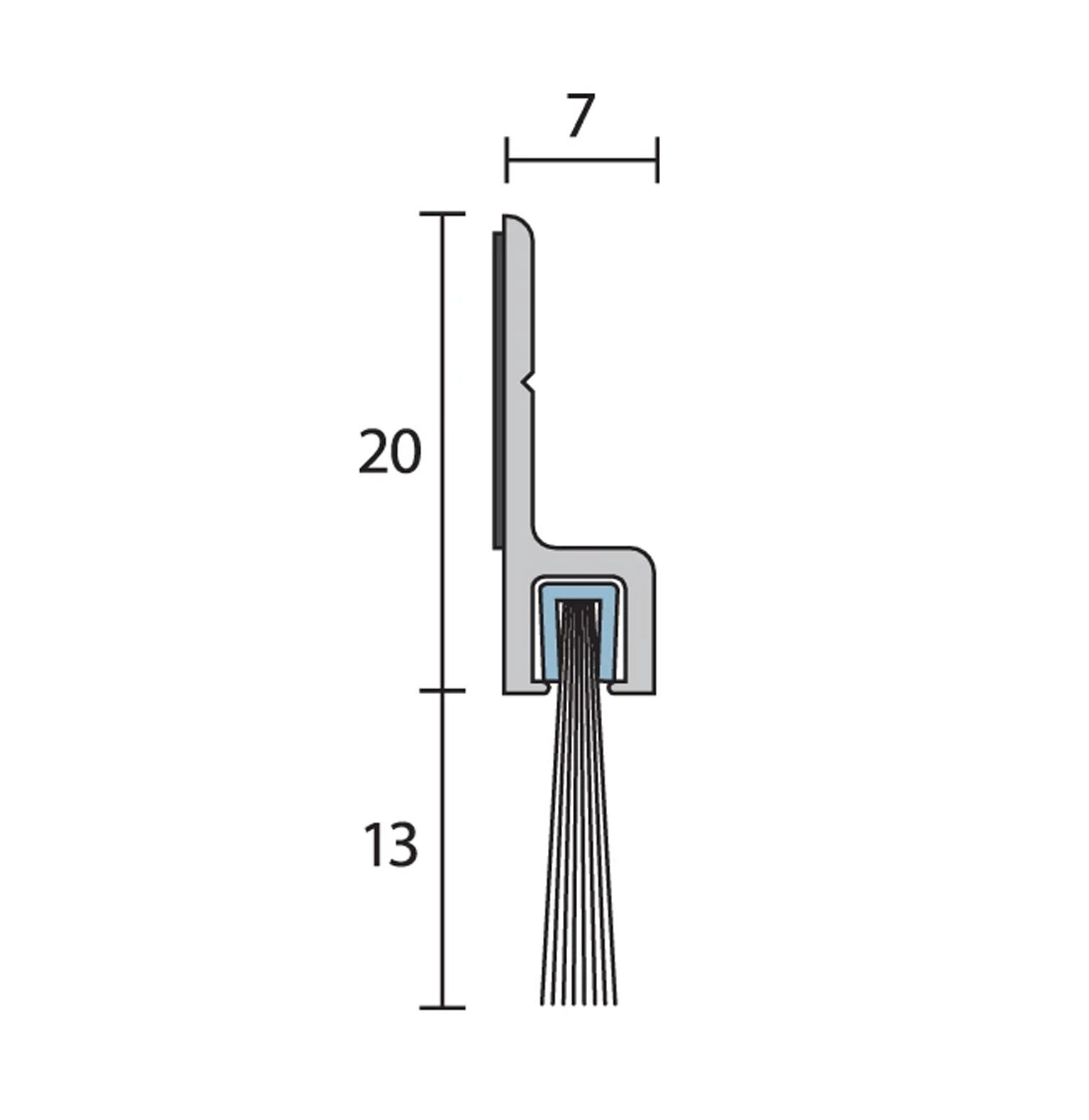

  • A nylon brush strip seal with a self-adhesive aluminium holder. Mounted to the inside or outside door head and bottom face, RP74 provides a very neat sealing solution with the advantage of final on site installation which overcomes unforeseen floor or sill variation.
  • Used in conjunction with Raven threshold plates.
  • Global GreenTag - Bronze

Specifications:

  • Door/Frame Construction: Timber, Aluminium
  • Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening
  • Location: Meeting stiles of double butt hinged and centre pivot double acting doors.
  • Fixing: Screw Fixed (Screw fix. Colour matched zinc plated, cross recess head CSK S.T. screws supplied. Fixing holes are pre-drilled and countersunk)
  • Minimum and Maximum Gap: 3mm to 5mm
  • Replacement Seals: RP371Si BK, RP371Si GR
  • Available Sizes:
    • 1250mm
    • 2250mm
  • Finish: Clear Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals

  • Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2
  • Fire Rating: Up to FD120, Up to FRL & FRR-/120/30
  • Fire Flammability Index: Brush Strip flammability index 1 when tested to AS1530.2
  • Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
  • BAL Statement: BAL FZ when used on an approved side hung fire door in accordance with AS 3959, BAL FZ when used on a garage in accordance with AS 3959
  • BAL Statement: BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
SKU RAVA74C2_
Brand Raven
