Raven RP75 Door Bottom Sweep Seals
A75C3000

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

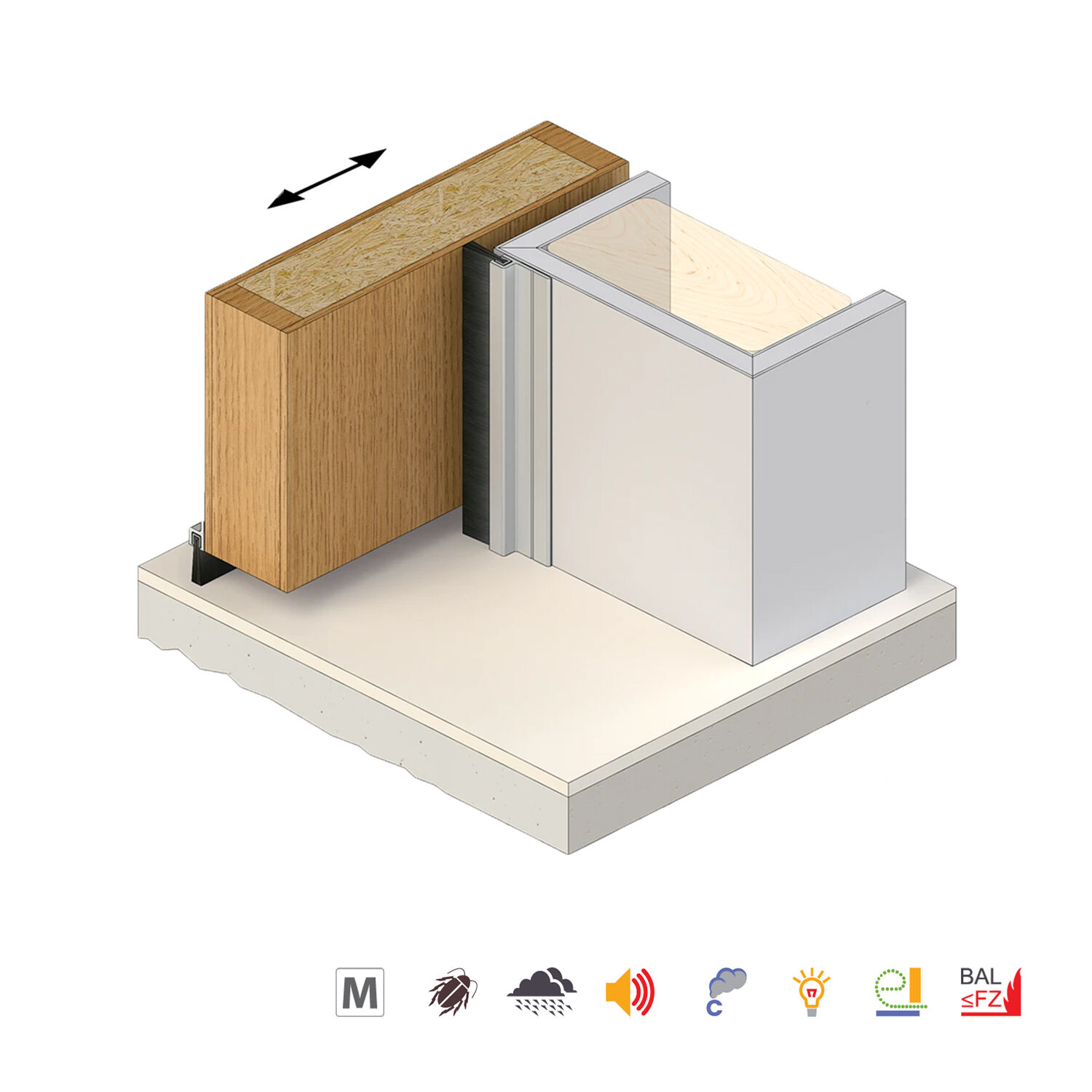

• A nylon brush strip seal that is ideal for sliding or double acting doors
• Can also be used for the stiles of tilt-up doors
• Used in conjunction with Raven threshold plates

Specifications:

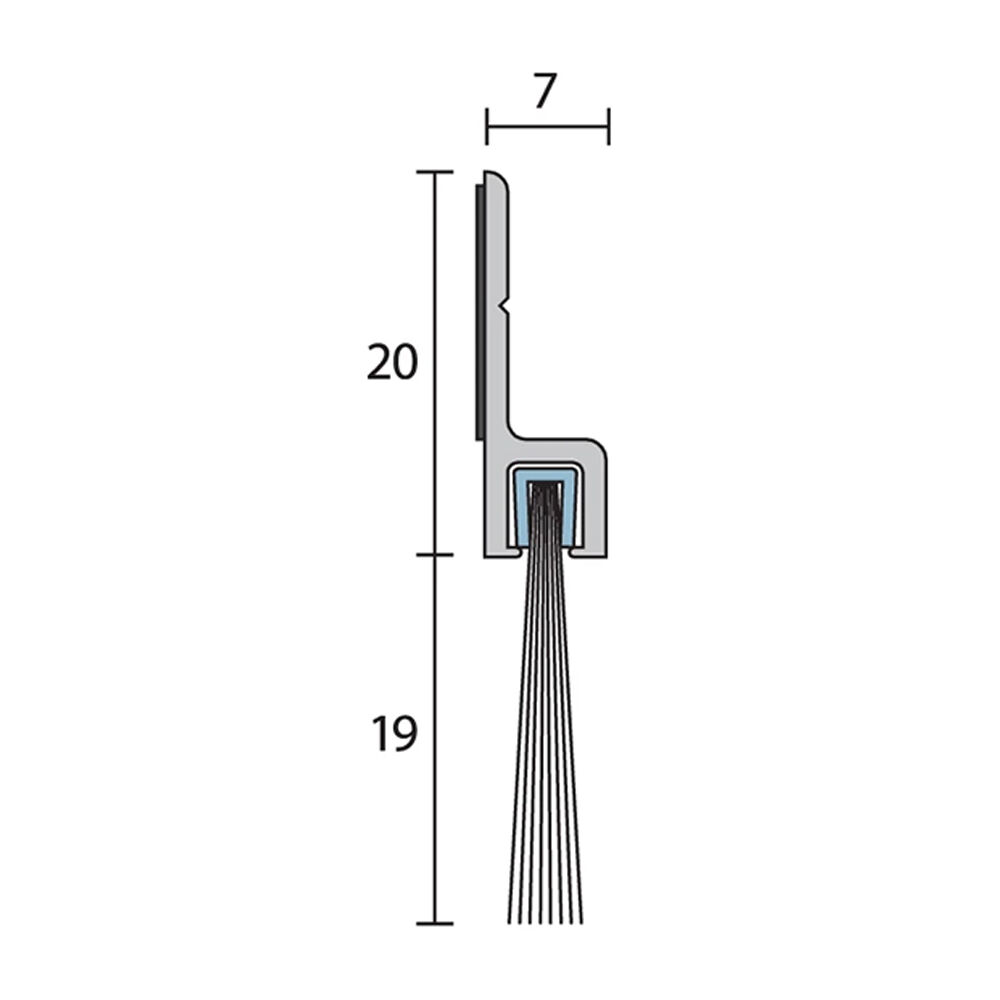

• Max Gap: 19mm
• Fixing: Screw Fix
• Base Depth: 20mm
• Base Projection: 7mm
• Length: 3000mm
• Finish: Silver Anodised

Approvals:

• Brush Strip flammability index 1 when tested to AS1530.2
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL FZ when used on a garage in accordance with AS 3959
