Raven RP79Si Astragal Meeting Stile Seal
A79SIC3000

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

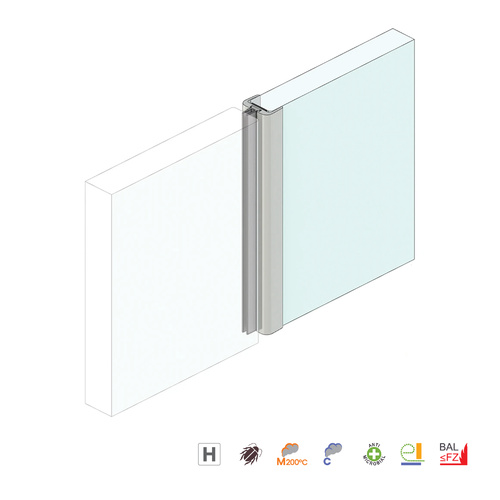

• An aluminium astragal seal designed for frameless glass doors
• RP79Si utilises silicon rubber fins for medium temperature smoke door applications
• Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates

Specifications:

• Min and Max Gap: 8mm - 9mm
• Fixing: Self-adhesive

• Depth: 10mm
• Projection: 4mm
• Width: 12mm
• Length: 3000mm
• Finish: Silver Anodised

Approvals:

• Gasket flammability index 1 when tested to AS1530.2

• NCC S12C4
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
