Raven RP81 Door Bottom Sweep Seals

Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

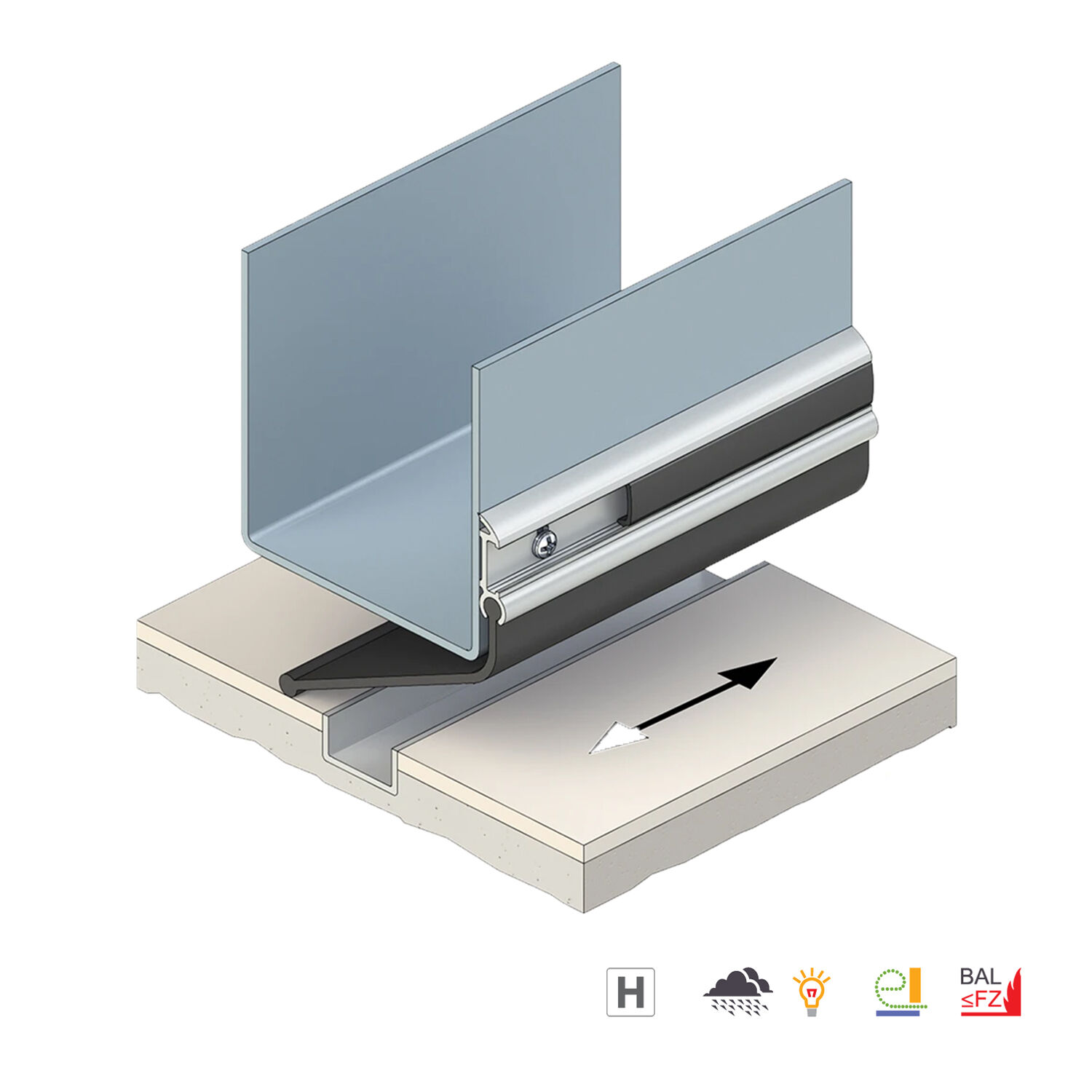

• A heavy duty EPDM sweep seal for door bottoms of outward opening doors with large gaps up to 120mm
• Ideal for industrial sliding doors and gates

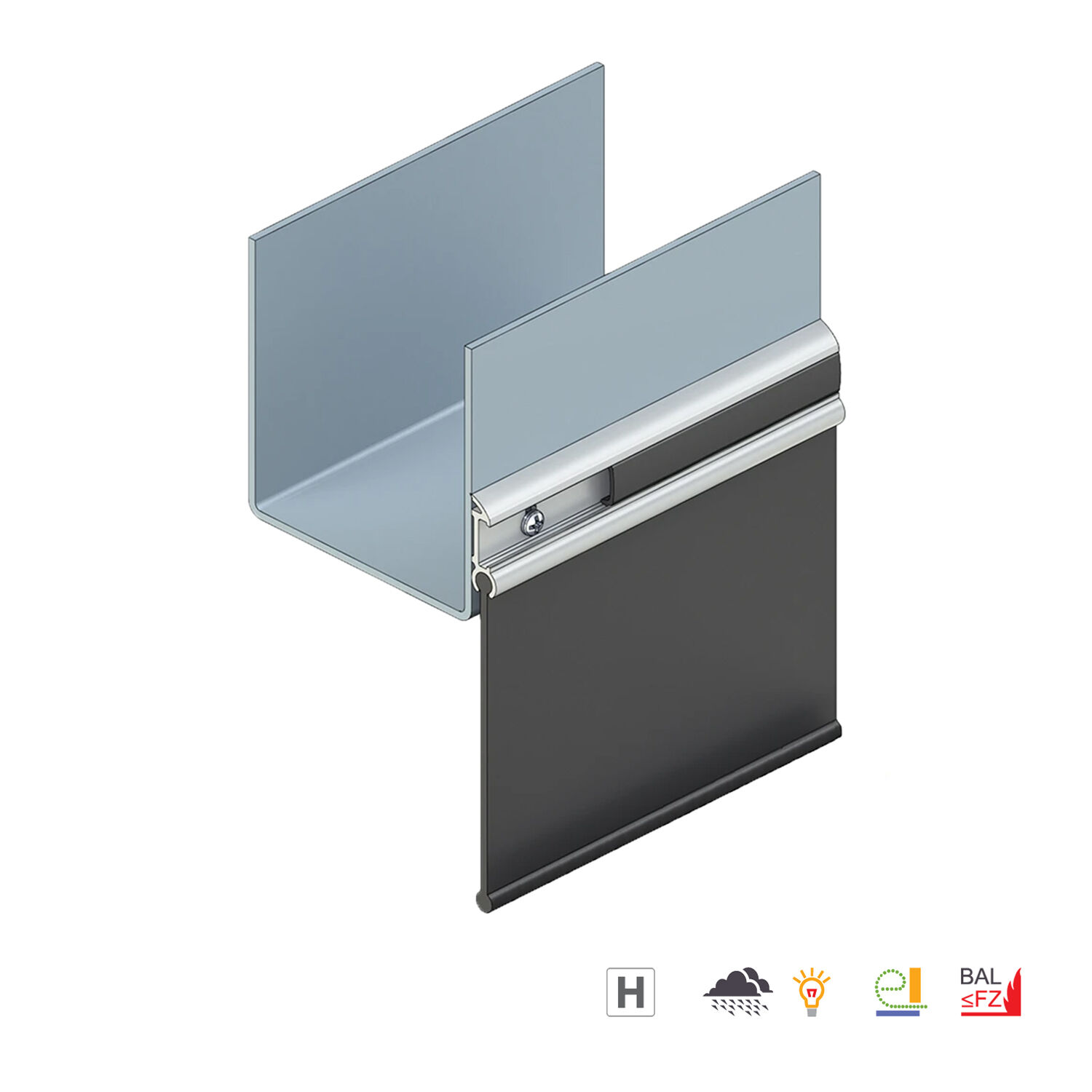

• This seal has slotted holes for adjustment with a push-in cover strip for concealment of fasteners
• The RP81 is ideal for use in conjunction with Raven threshold plates RP82 and RP29

Specifications:

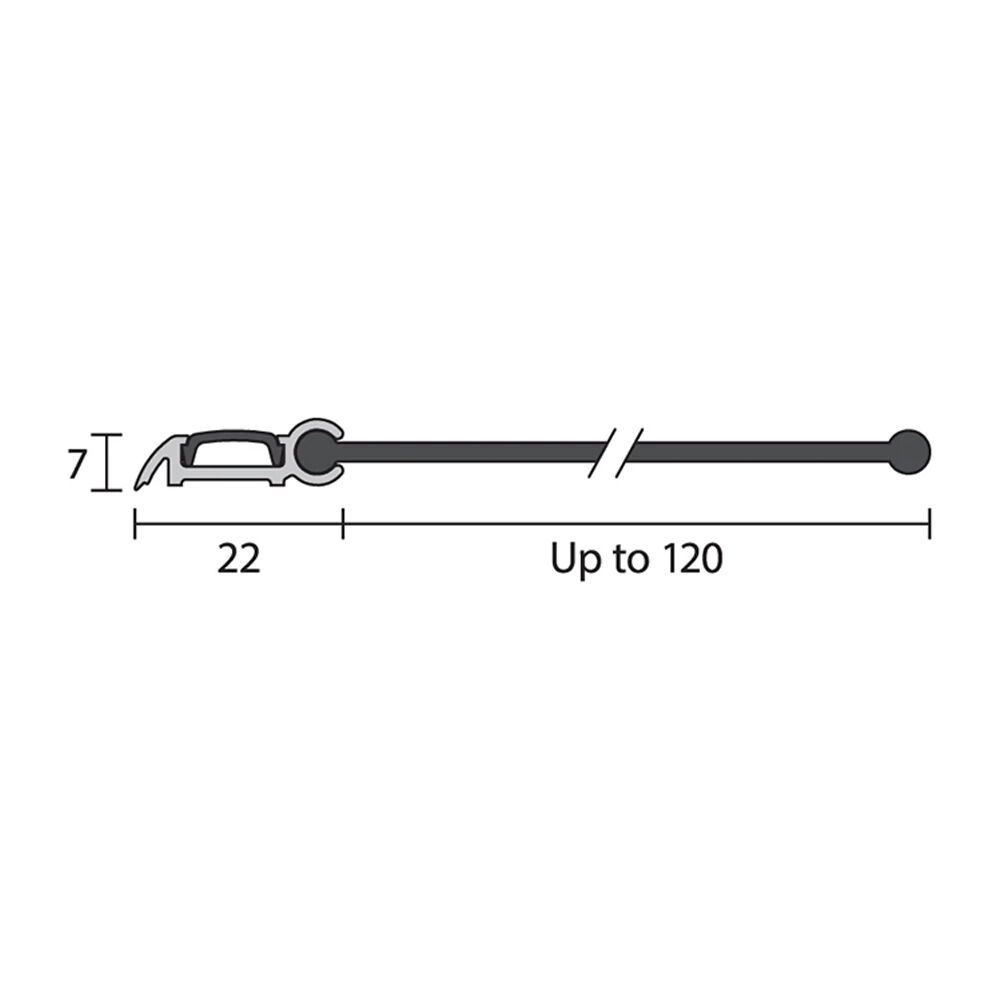

• Max Gap: 120mm
• Fixing: Screw Fix
• Base Width: 22mm
• Base Projection: 7mm
• Length:
  • 1000mm
  • 3000mm
• Finish: Silver Anodised

Approvals:

• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
