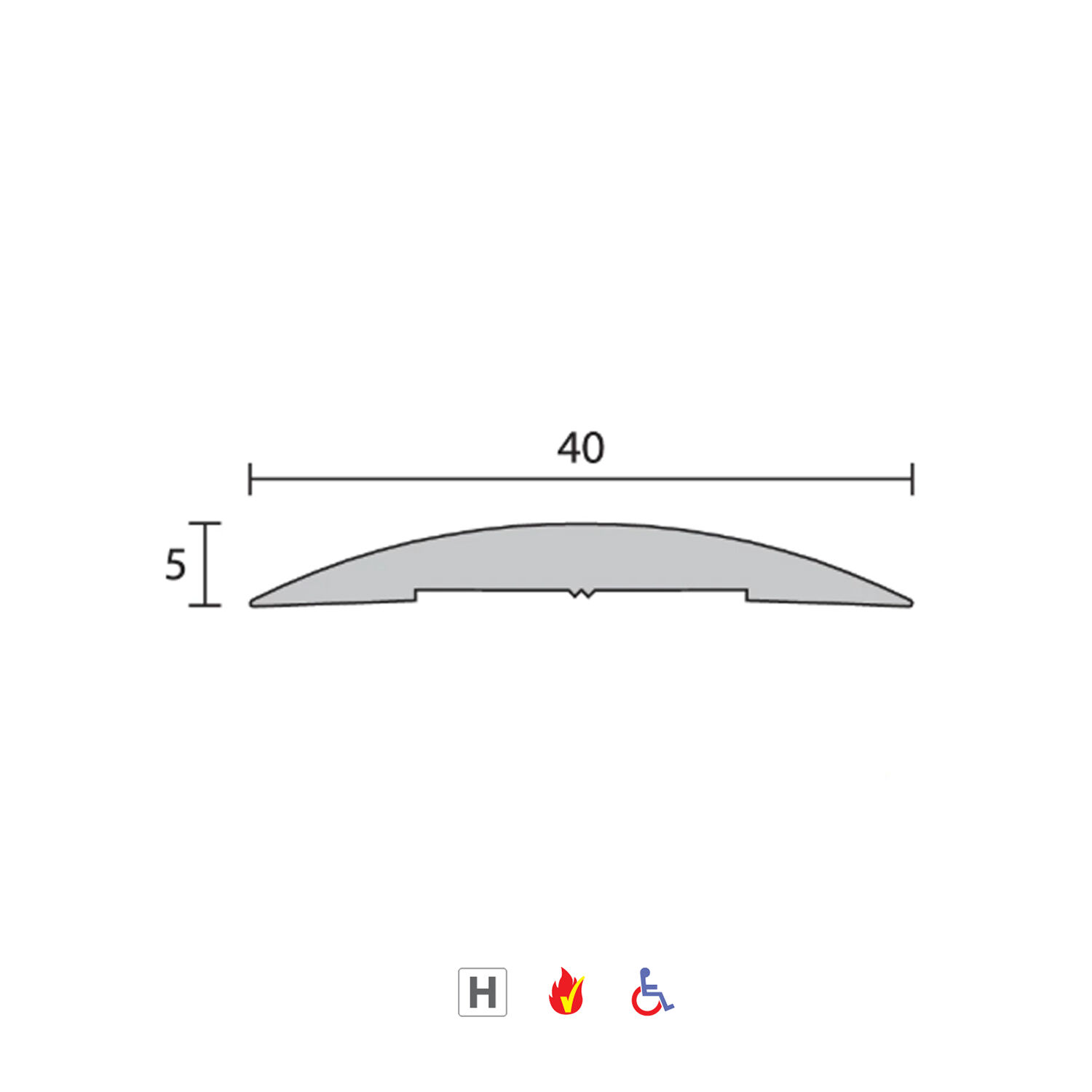

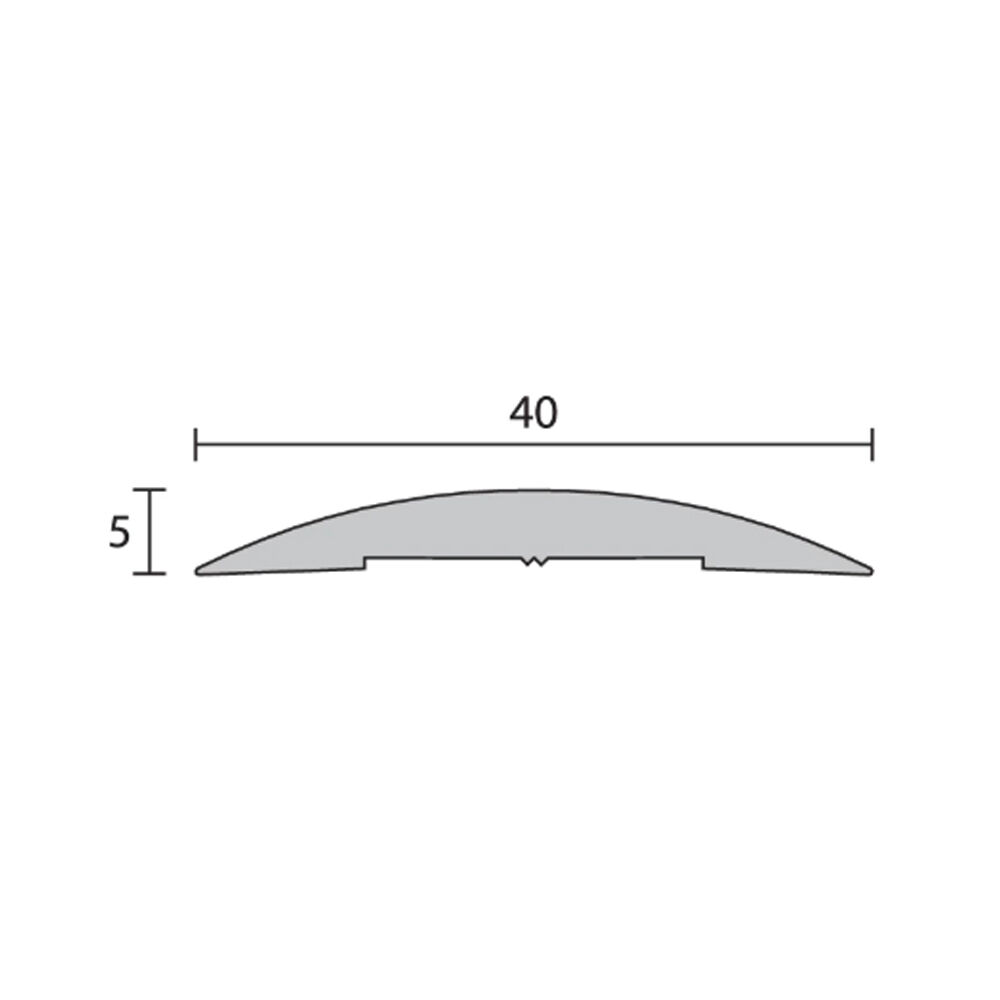

Raven RP82 Low Profile Threshold Plate
A82B1000

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

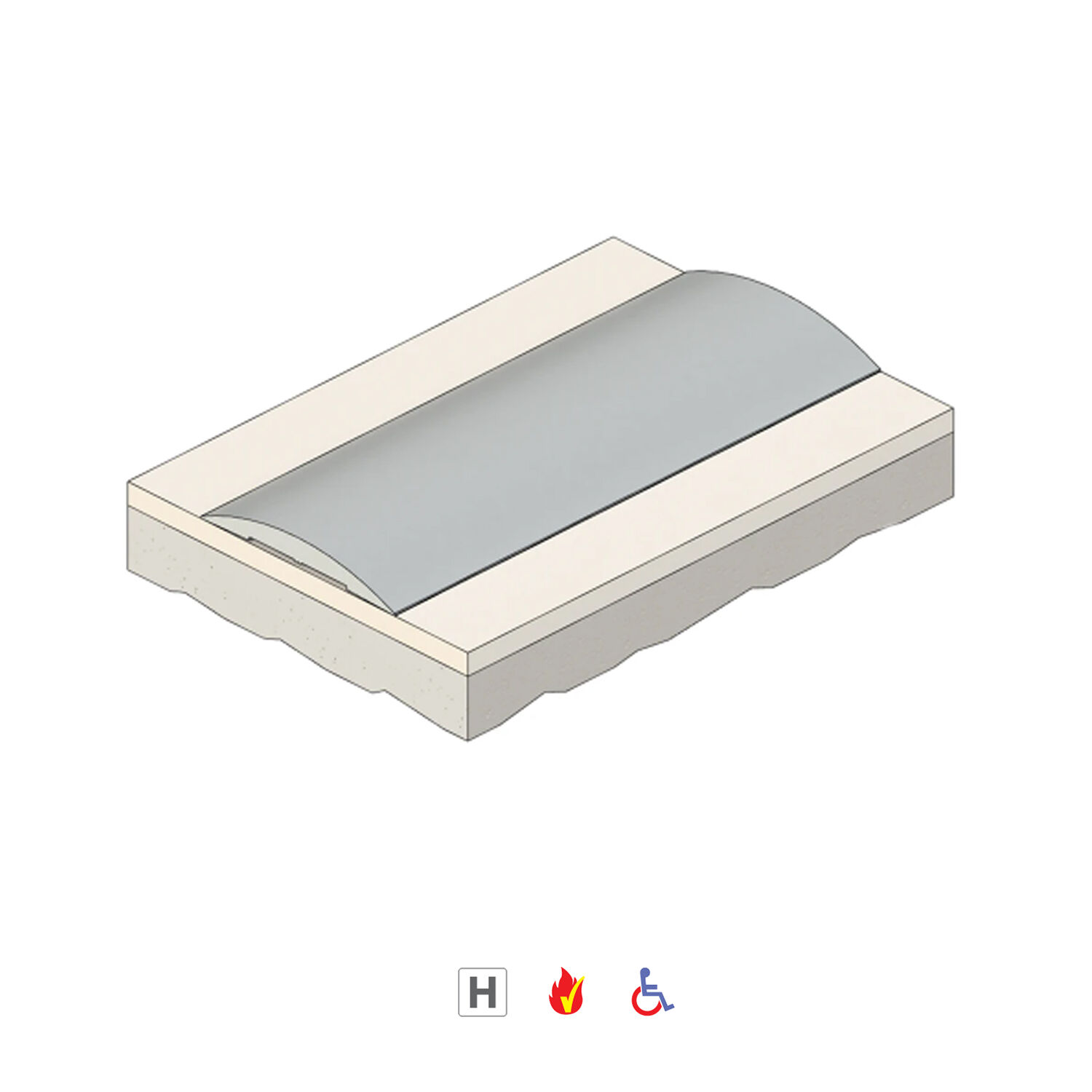

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• A low profile threshold plate that is ideal for use in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration

Specifications:

• Location: Door sill
• Size: 1000mm
• Fixing: Screw Fixed, Adhesive Fixed
  • Screw fix or builders adhesive for concealed fixing (user determined). Colour matched zinc plated, cross recess head CSK S.T. screws supplied.
• Material: Aluminum
• Finish: Bronze Anodised

Approvals:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: UL: R37913, ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1530.4, NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FRL & FRR-/240/30
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
