Raven RP85 Perimeter Meeting Stile Seal
A85C2250

Meeting Stile Seal is commonly used on double doors in commercial buildings to prevent air, sound, and light from passing through the gap where the doors meet.

Meeting Stile Seal Function - a seal between double doors to block light, sound, smoke, and weather, improving energy efficiency and privacy.

Features:

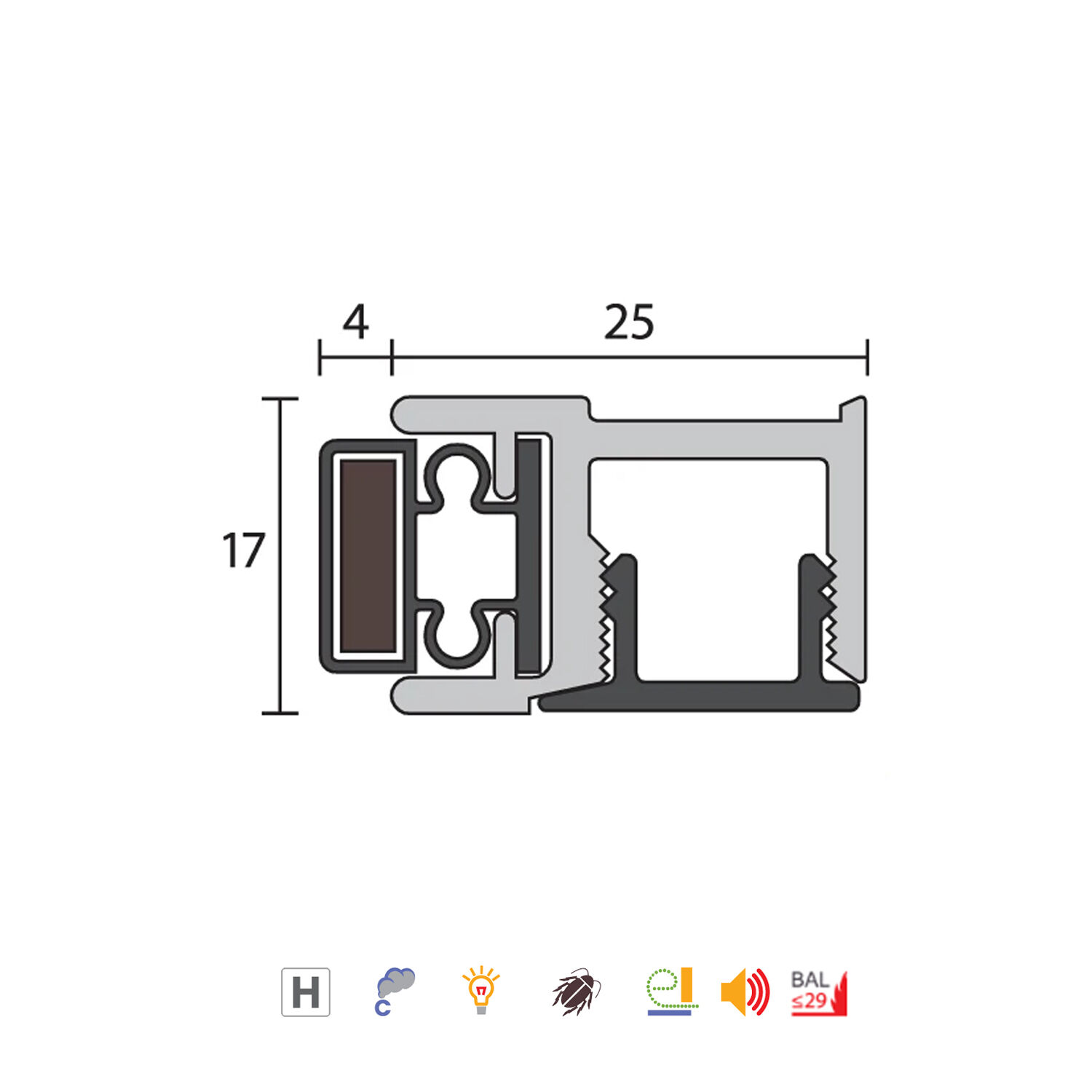

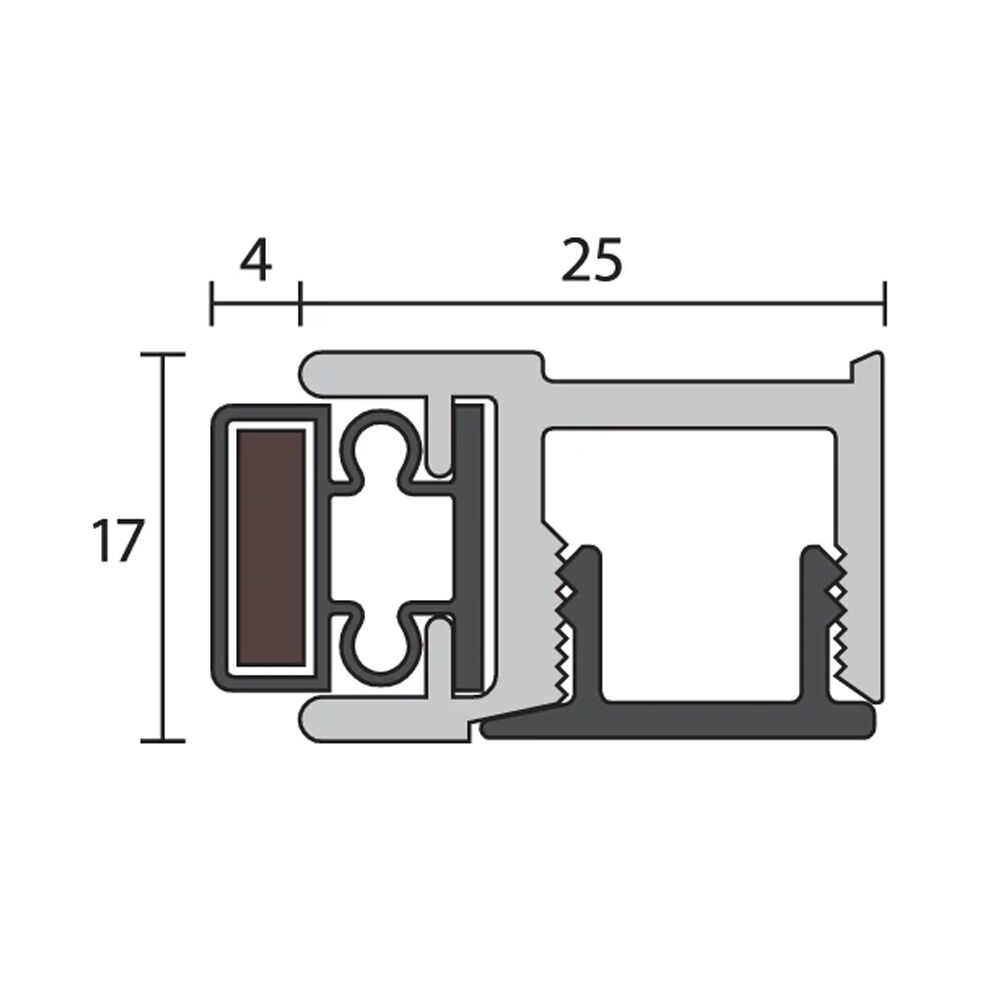

• A refrigeration type vinyl magnetic strip in an anodised aluminium housing with concealed fixings
• RP85 provides a tight seal for steel clad doors and jambs and may be used as a stop

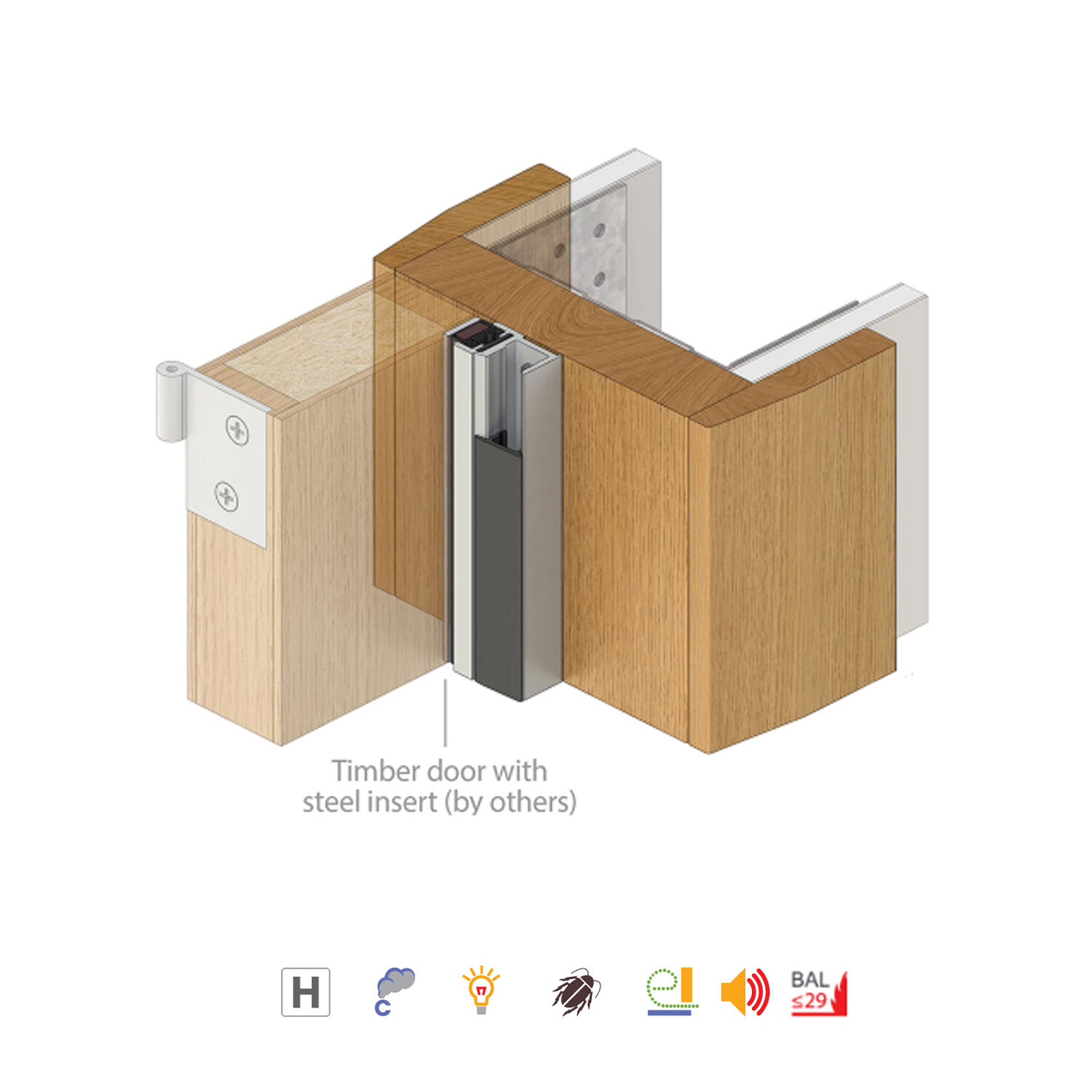

• For timber doors, a thin steel strip can be attached to the door face
• The magnetic strip has sufficient closing strength that latches may not be required
• Can be used in conjunction with Raven door bottom seals and meeting stile seals (astragals)

Specifications:

• Location: Head and jambs of single and double butt hinged doors.
• Size: 2250mm
• Fixing: Screw Fixed
  • Concealed screw fix. Zinc plated, cross recess head S.T. screws and cover strip supplied.
• Min and Max Gap: 0mm to 4mm
• Material: Aluminum
  • Anodised aluminium with black PVC gasket and magnet strip.
• Door/Frame Construction: Timber, Steel, Aluminium
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
• Finish: Silver Anodised
• Note: If fixing to rebated frames of single doors, specify a long backset door latch.

Approvals:

• Accreditations: Certifire: CF 5710
• Acoustic AUS/NZ: NCC F7D6
• Acoustic UK/EU: Approved Document E, Rated to BS EN ISO 717-1
• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
