Raven RP88 Astragal Meeting Stile Seal
A88C3000

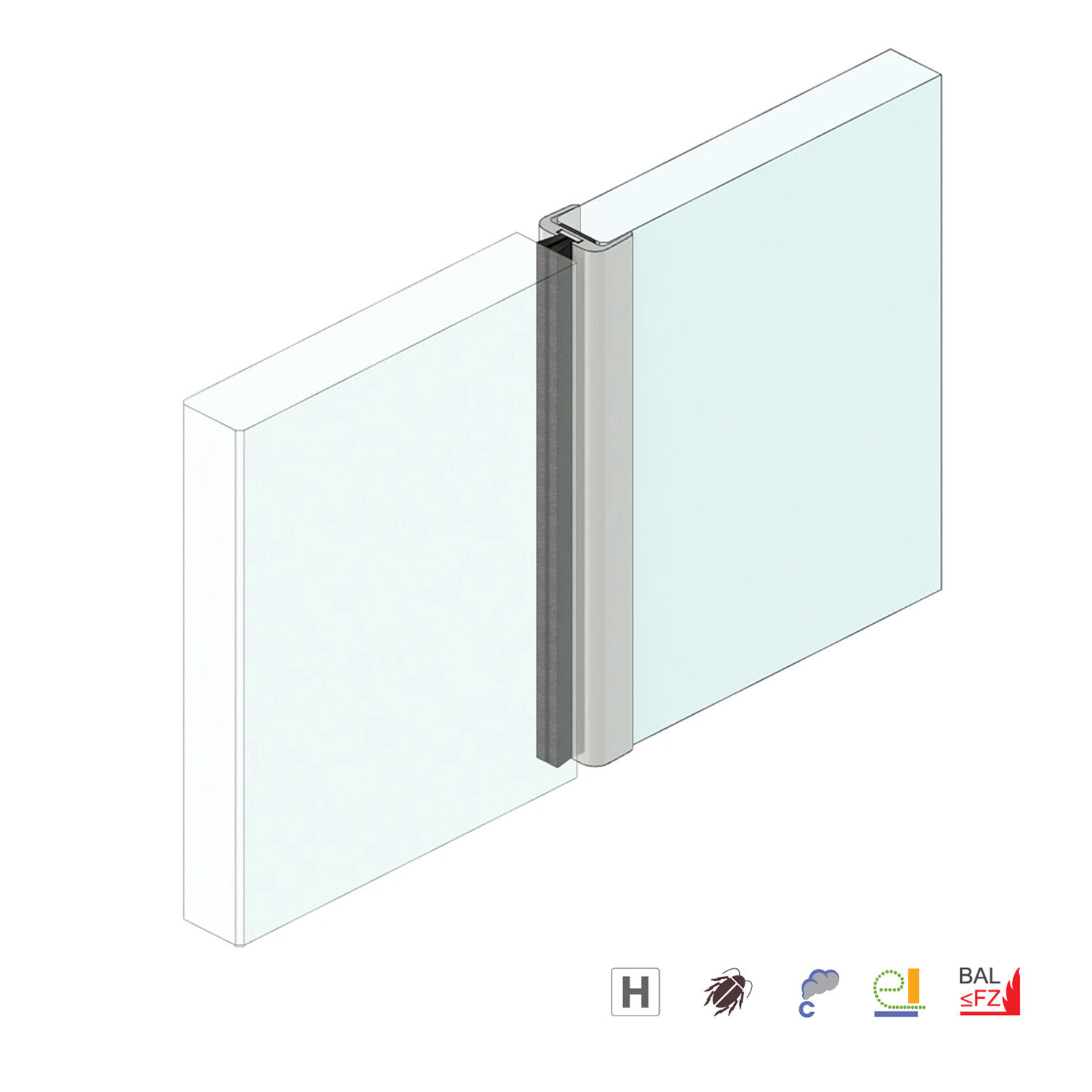

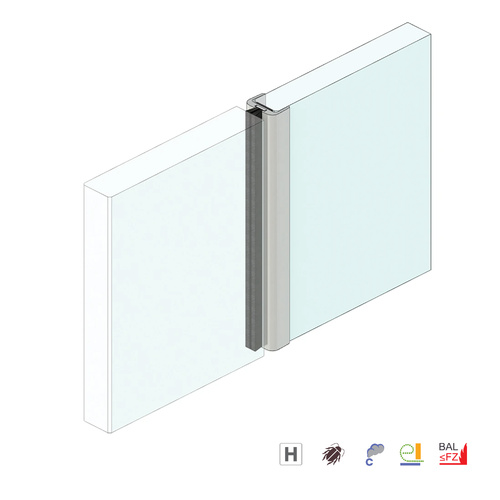

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• An aluminium meeting stile seal (astragal) designed for frameless glass doors. The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
• Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates
• Global GreenTag - Platinum

Specifications

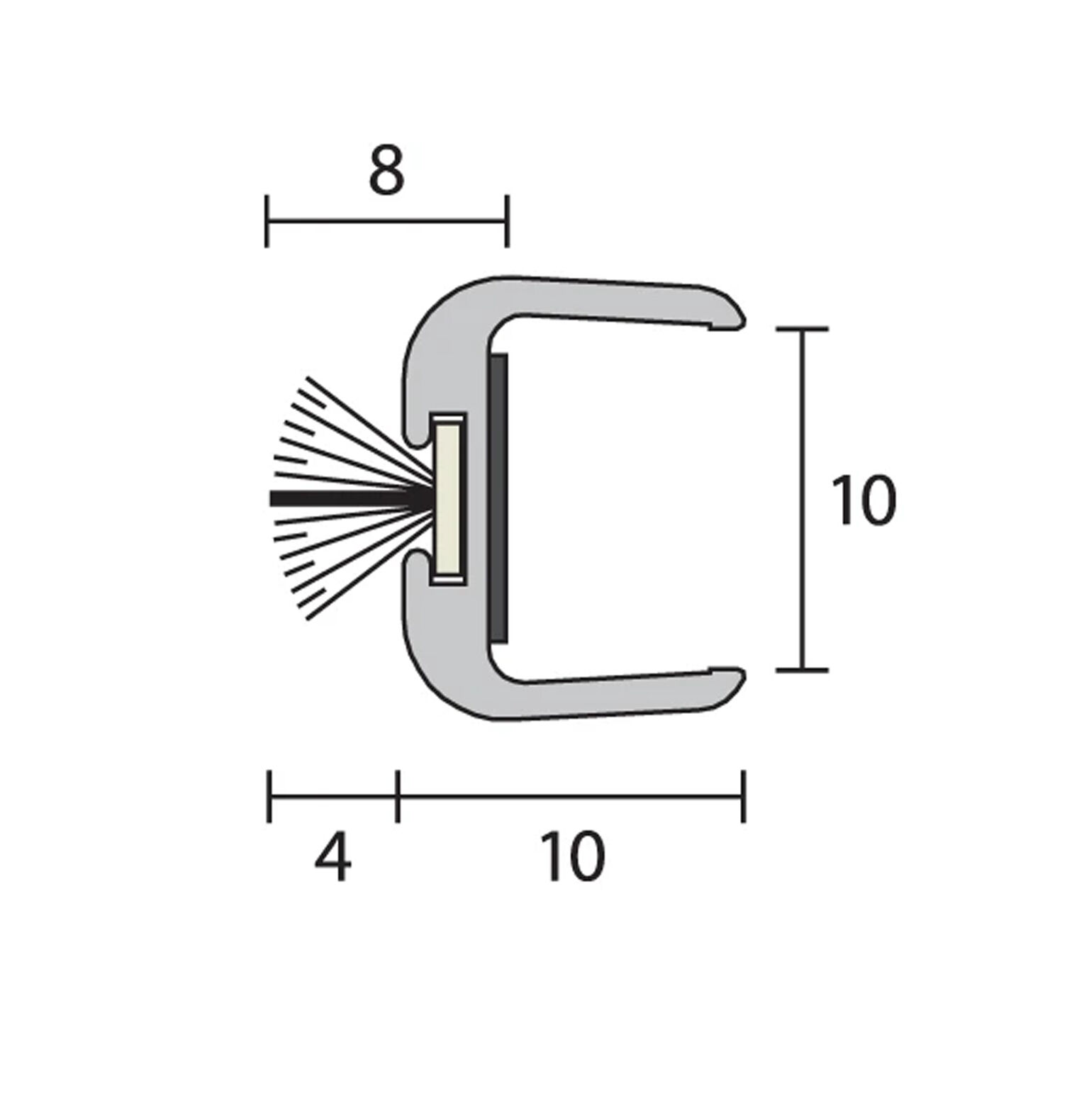

• Location: Meeting stiles of 10mm thick frameless glass doors.
• Size: 3000mm
• Fixing: Self-adhesive (Self-adhesive. Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces
• Minimum and Maximum Gap: 8mm to 9mm (Gap is determined prior to installation)
• Replacement Seals: RP71PP
• Material: Aluminium (Anodised aluminium with black polypropylene pile with weather fin)
• Door/Frame Construction: Glass
• Door Type: Double Inward Opening, Double Outward Opening, Sliding, Pivot
• Finish: Celar Anodised

Note: Architectural perimeter seal and door bottom extrusions are anodised 15μm and threshold plates are anodised 25μm for maximum durability. Black aluminium is anodised 25μm to 40μm.

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
