Raven RP89 Door Bottom Sweep Seal
A891000

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• A Rigid and Flexible co-polymer weather and energy seal. RP89 suits leading proprietary brand, hollow channel aluminium door suites. Concealed in the bottom of aluminium butt hinged doors or the bottom and head of pivot doors, RP89’s unique design accommodates OEM and retrofit applications
• When used in conjunction with a Raven threshold plate an excellent weather and energy seal is achieved
• Global GreenTag - Platinum

Specifications:

• Location: Bottom or top of 40-45mm hollow channel aluminium doors. Suits butt hinged and pivot hinged systems. Sliding doors (user determined).
• Size: 1000mm

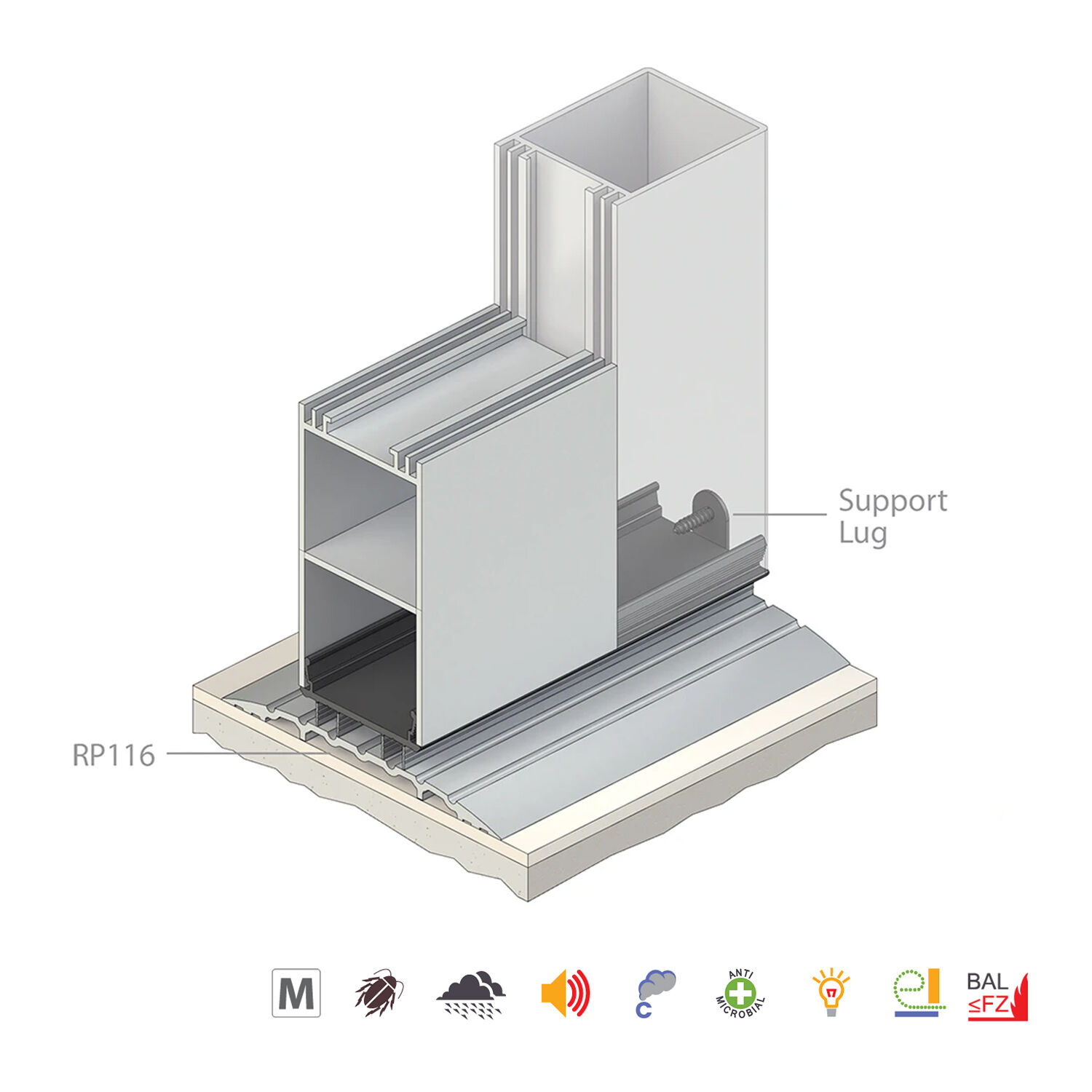

• Fixing: Screw Fixed, Push-in Friction Fit (Snap fit design with end support lugs and screws supplied)

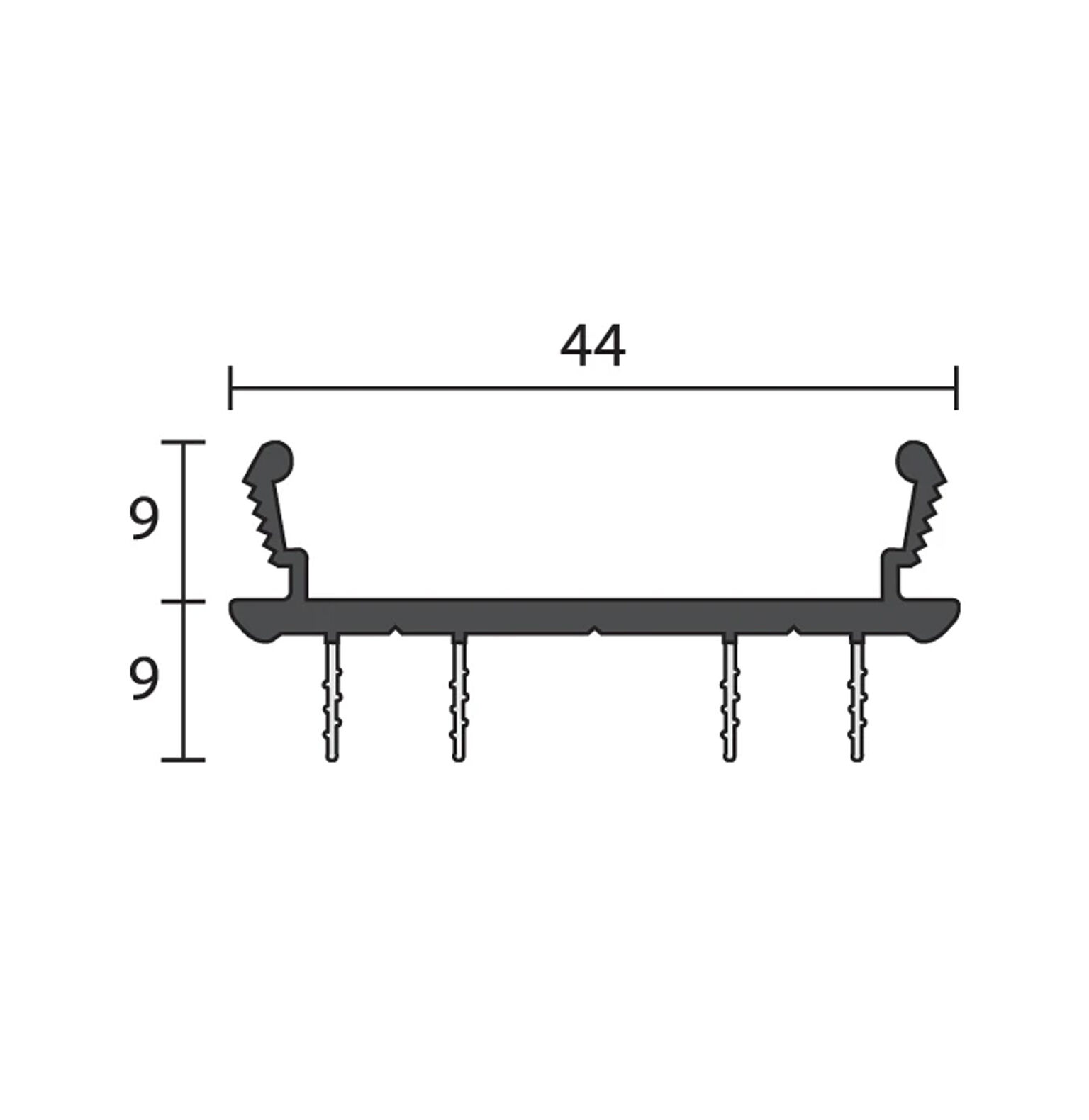

• Minimum and Maximum Gap: 6mm to 9mm
• Material: Rigid and Flexible PVC (Black Rigid and grey Flexible UV stabilised co-polymer)
• Door/Frame Construction: Aluminium
• Door Type: Single Inward Opening, Single Outward Opening, Double Inward Opening, Double Outward Opening, Pivot
• Finish: Black

Note: A Raven threshold plate is recommended to clear floor surface.

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Durability: Tested to over 500,000 operating cycles without failure
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
