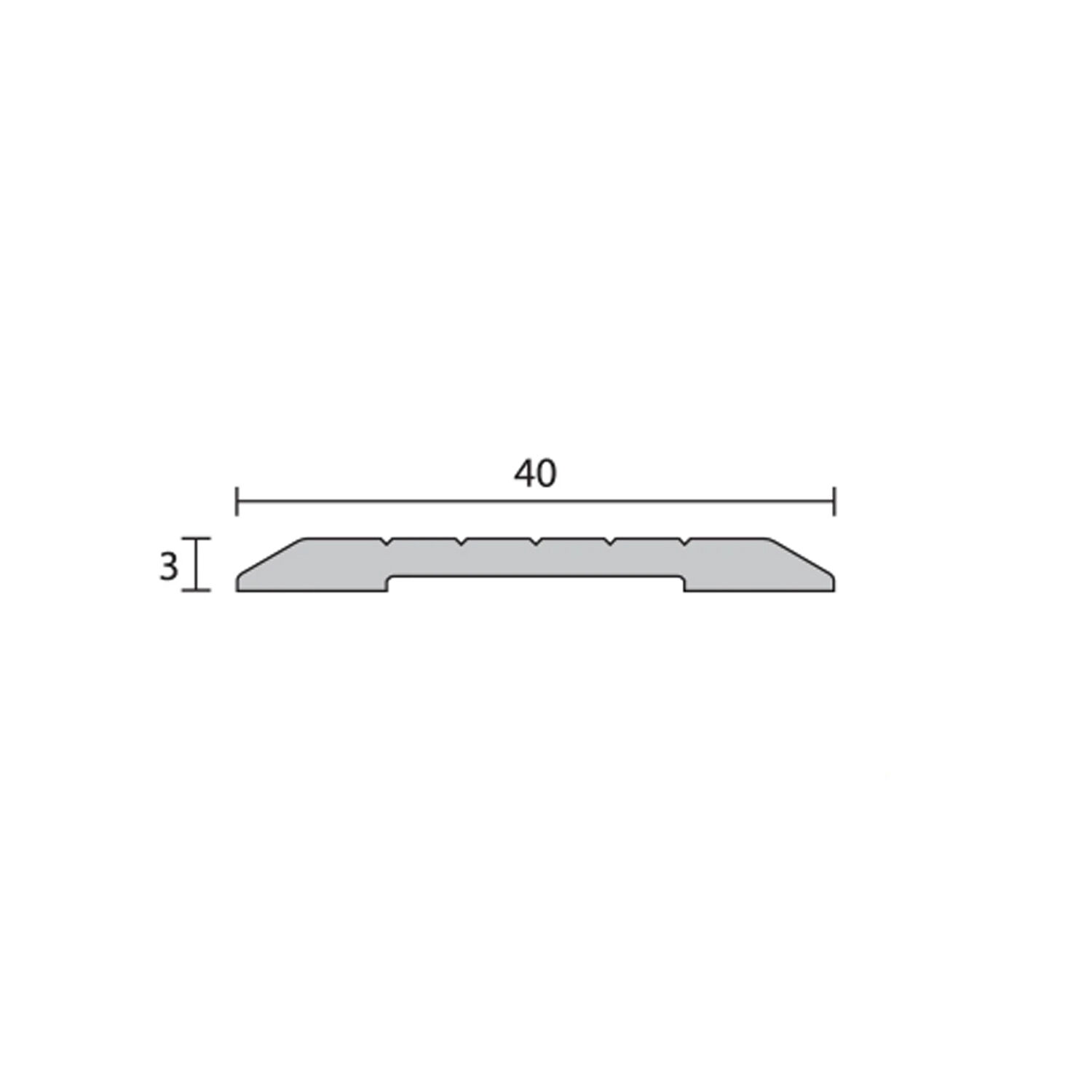

Raven RP95 Threshold Plate

Threshold Plate enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

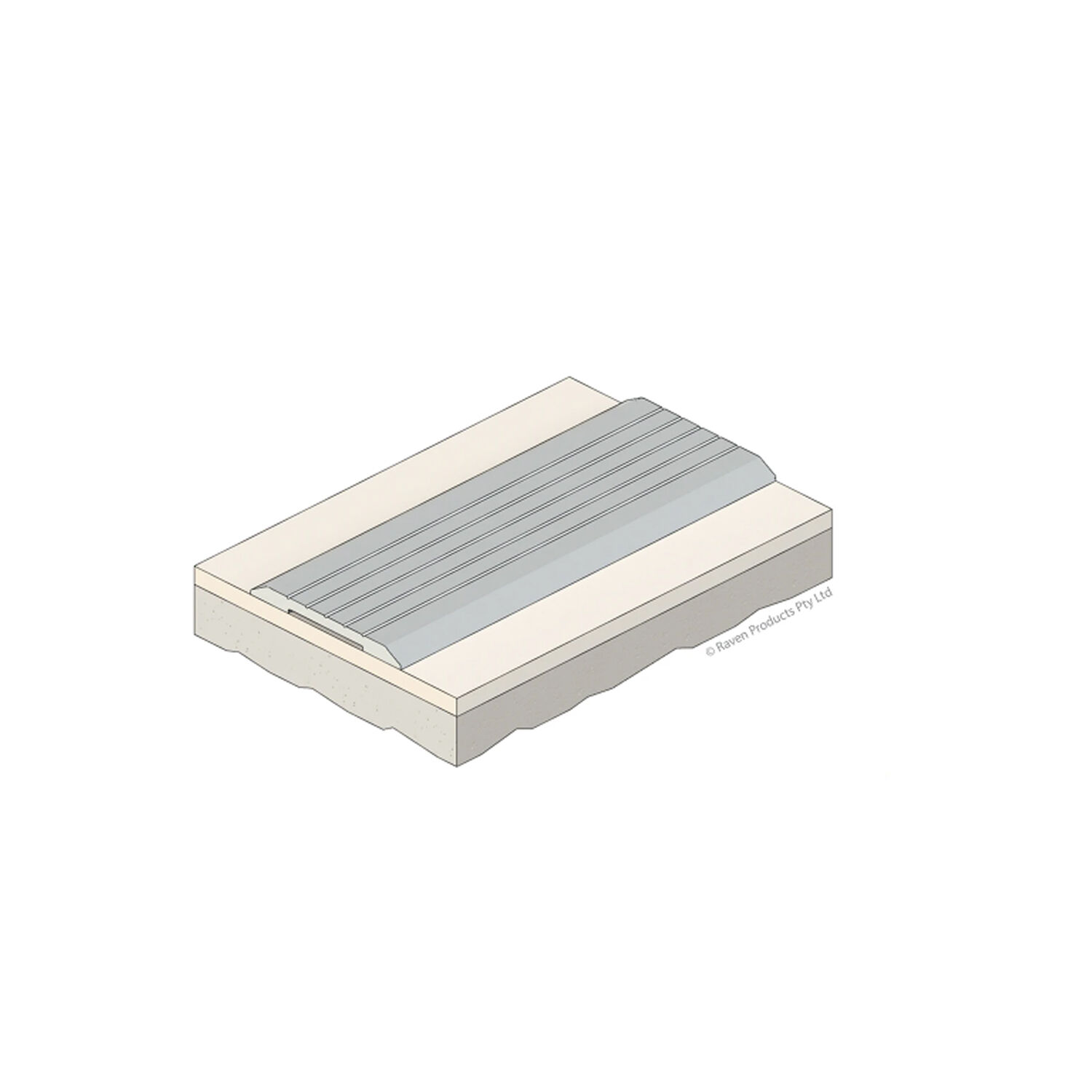

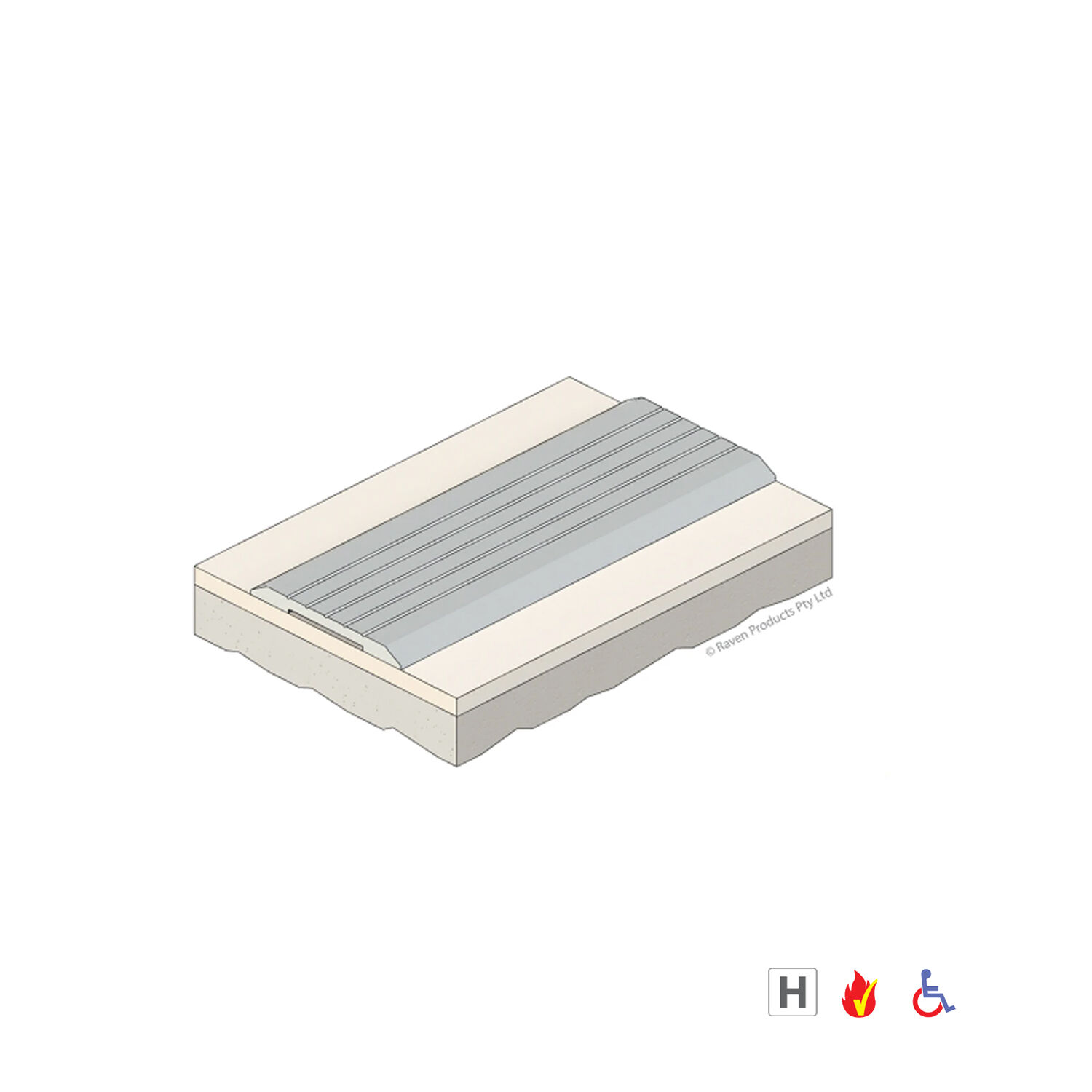

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Global GreenTag - Platinum
• A low profile threshold plate that can be used in conjunction with Raven door bottom seals
• Prevent rain, draught, noise and smoke infiltration.

Specification:

• Fixing: Screw Fixed, Adhesive Fixed
• Material: Aluminium
• Location: Door sill
• Available Sizes:
  • 1000mm
  • 2000mm
  • 3000mm
• Available Finishes:

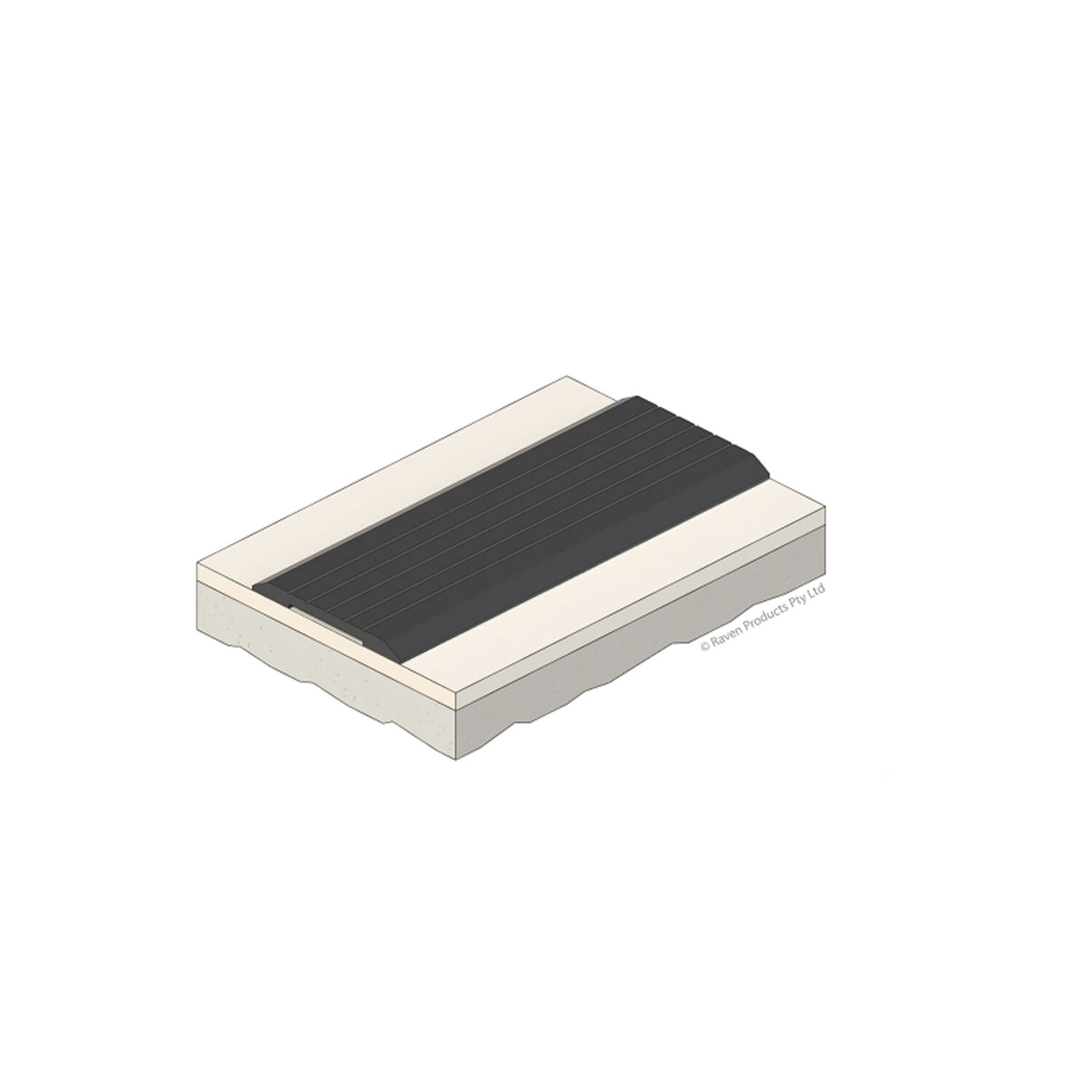

  • Bronze Anodised
  • Silver Anodised

Approval/s:

• Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
• Access & Mobility UK/EU: Approved Document M
• Accreditations: UL: R37913, ANSI/BHMA: A156.21
• Fire AUS/NZ: AS 1530.4, AS 1905.1, NCC S12C2, NZBC C/AS2 4.16.2(a) & App C6.1.1
• Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
• Fire Rating: Up to FRL & FRR-/240/30, Up to FD240
• BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959
