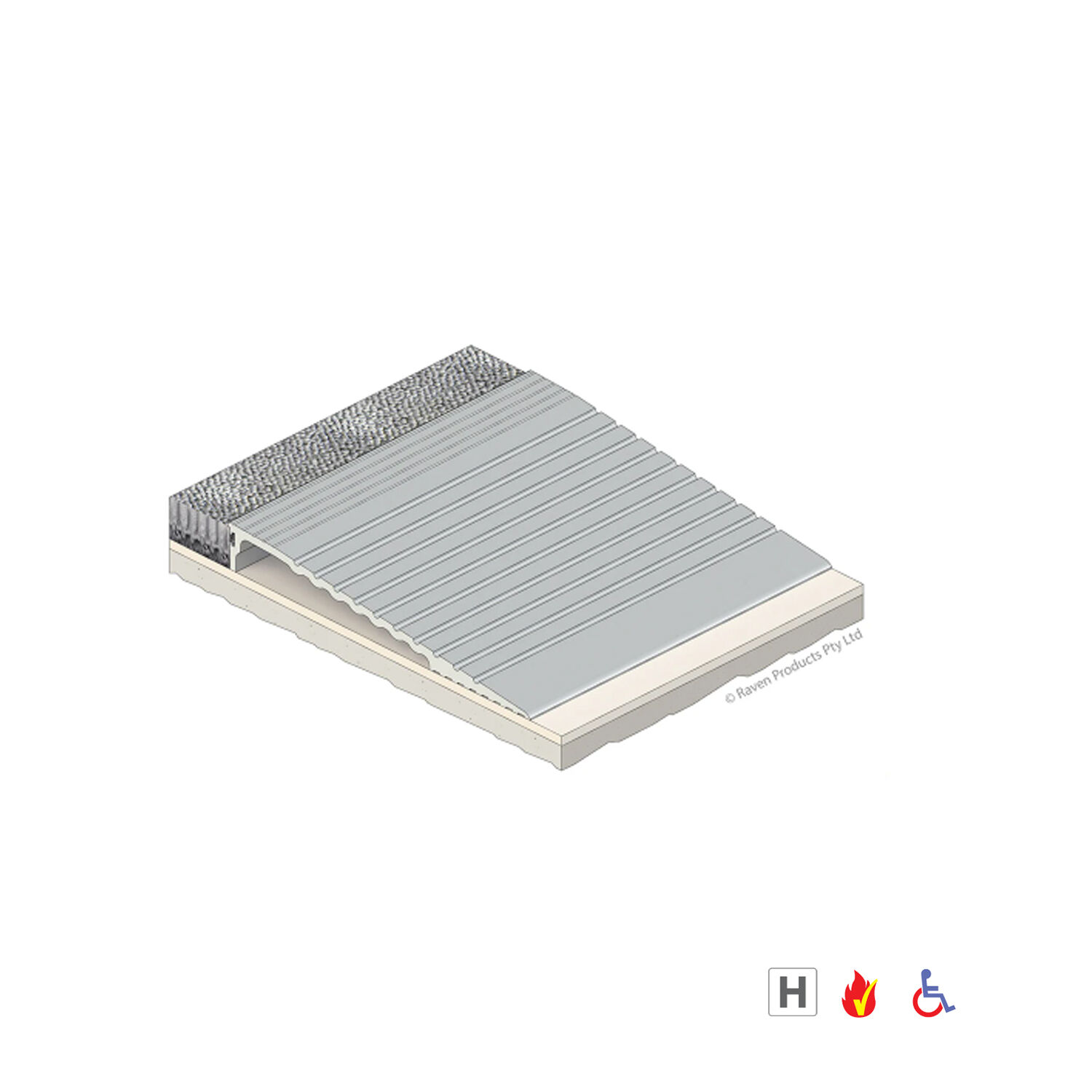

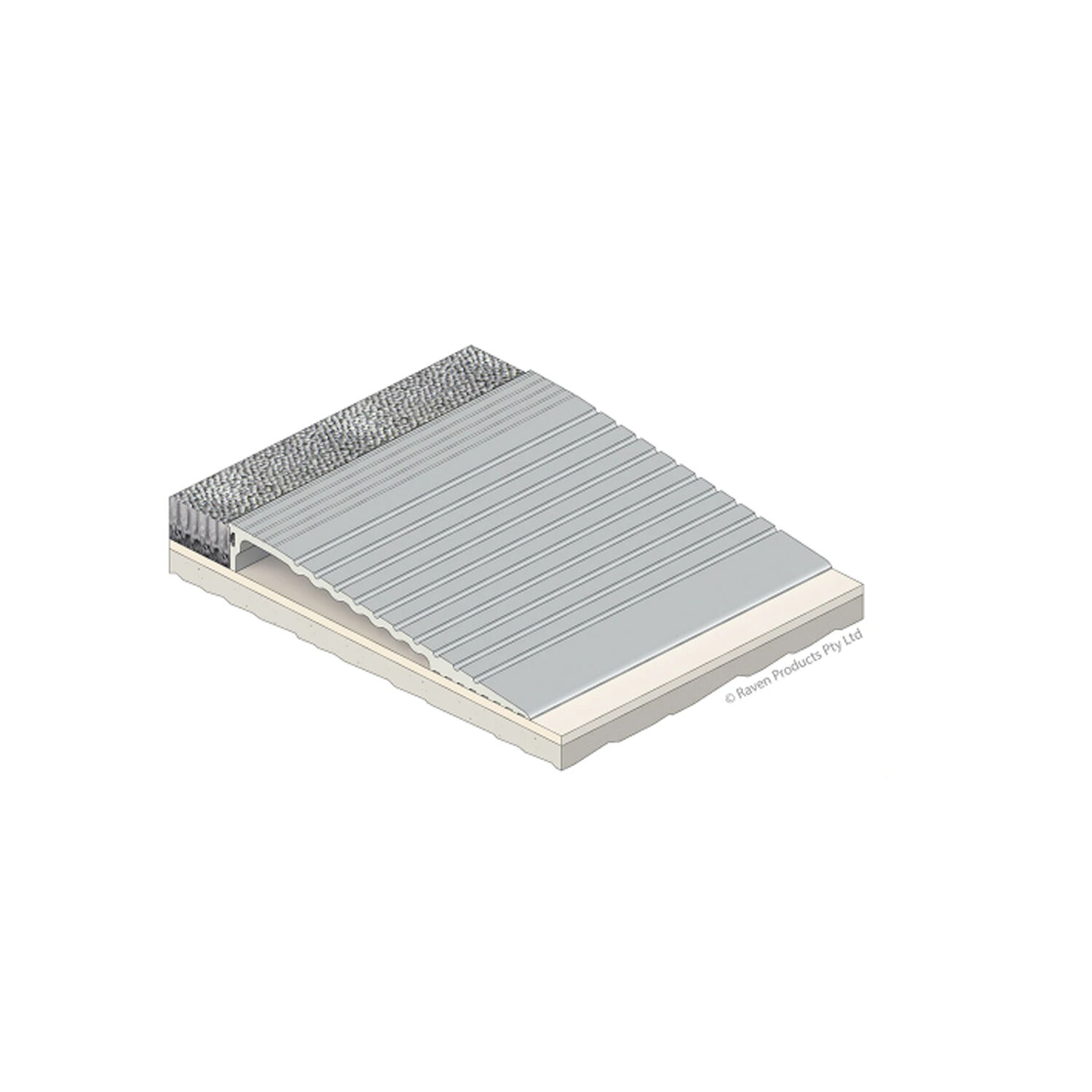

Raven RP98 Threshold Ramp

Threshold Ramp enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Ramp Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

  • Global GreenTag - Platinum
  • Heavy duty threshold ramp
  • With ribbed design which can be positioned back-to-back to form a two-way threshold ramp conforming to NCC D3D16 (b).
  • Can be used in conjunction with Raven door bottom seals to prevent rain, draughts, noise and smoke infiltration
  • Suitable for use with most floor pivots.
  • Ideal for commercial shop fronts providing a neat ramp detail between carpets or tiles at door ways.
  • Can also be used to provide a ramped frame for internal door mats.

Specification:

  • Fixing: Screw Fixed, Adhesive Fixed
  • Material: Aluminium
  • Location: Door sill
  • Finish: Silver Anodised
  • Available Sizes:
    • 1000mm
    • 1250mm
    • 2000mm

Approval/s:

  • Access & Mobility AUS/NZ: NCC D3D16, NCC D4D4, AS1428.1:2009 Part 7.2. AS1428.1:2021 Part 4.2, NZBC D1/AS1 1.3.2
  • Access & Mobility UK/EU: Approved Document M
  • Accreditations: UL: R37913, ANSI/BHMA: A156.21
  • Fire AUS/NZ: NCC S12C2, AS 1905.1, NZBC C/AS2 4.16.2(a) & App C6.1.1, AS 1530.4
  • Fire UK/EU: Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
  • Fire Rating: Up to FRL & FRR-/240/30
  • BAL Statement: BAL FZ when used with a BAL rated door bottom seal in accordance with AS3959

Note:

  • When ordering, specify longer length than doorway to allow for neat installation around door frame.
SKU RAVA98C_
Brand Raven
