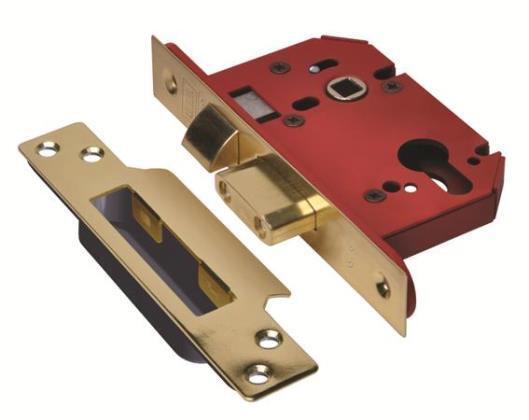

22EU - Euro profile cylinder Sashlock


  • For timber doors hinged on the left or right
  • Suitable for doors up to 54mm thick
  • For use with an euro profile cylinder


  • Easily reversible radius latch that uses the unique
  • UNION SwitchLatch technology, No tools are needed,
  • it's Time saving and Simple
  • Anti rattle adjustable strike for on site fine tuning
  • Radius plastic splinter guard for easy installation and a
  • professional finish
  • Anti­saw security features for resistance against attack
  • Chamfered bolt design increases the performance of the lock under side load testing.
  • Radius inner forend for ease of installation
  • Deadbolt locked or unlocked by the cylinder key or turn
  • 14mm deadbolt for secure positive deadlocking
  • Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
  • Hardened steel pins provide resistance to attack from sawing


  • Case Sizes:
    • 68mm (2.5")
    • 81mm (3")
  • Backsets:
    • 45mm
    • 57mm
  • Case: Steel, red powder coat
  • Forend: Stainless steel or brass plated
  • Striking Plate: Finished to match forend
  • Faceplate: Supplied with square faceplate which covers a radius inner forend
  • Deadbolt: Zinc with hardened steel rollers
  • Latch Bolt: Zinc
  • Follower: Sintered Steel
  • Rebate Kit: 2200REB 13mm (0.5")
  • Suitable for use on 30 and 60 min fire doors
  • Available Finish:
    • Polished Brass
    • Stainless Steel
Brand Union
