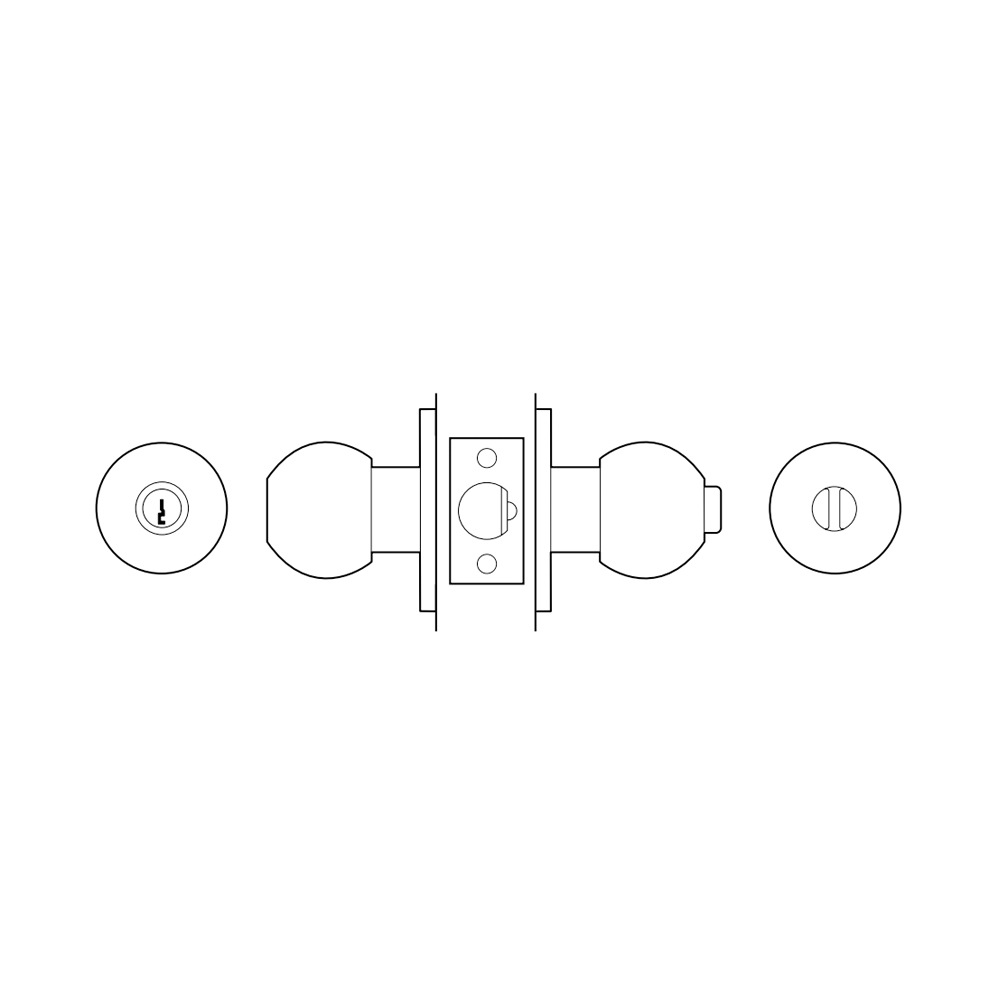

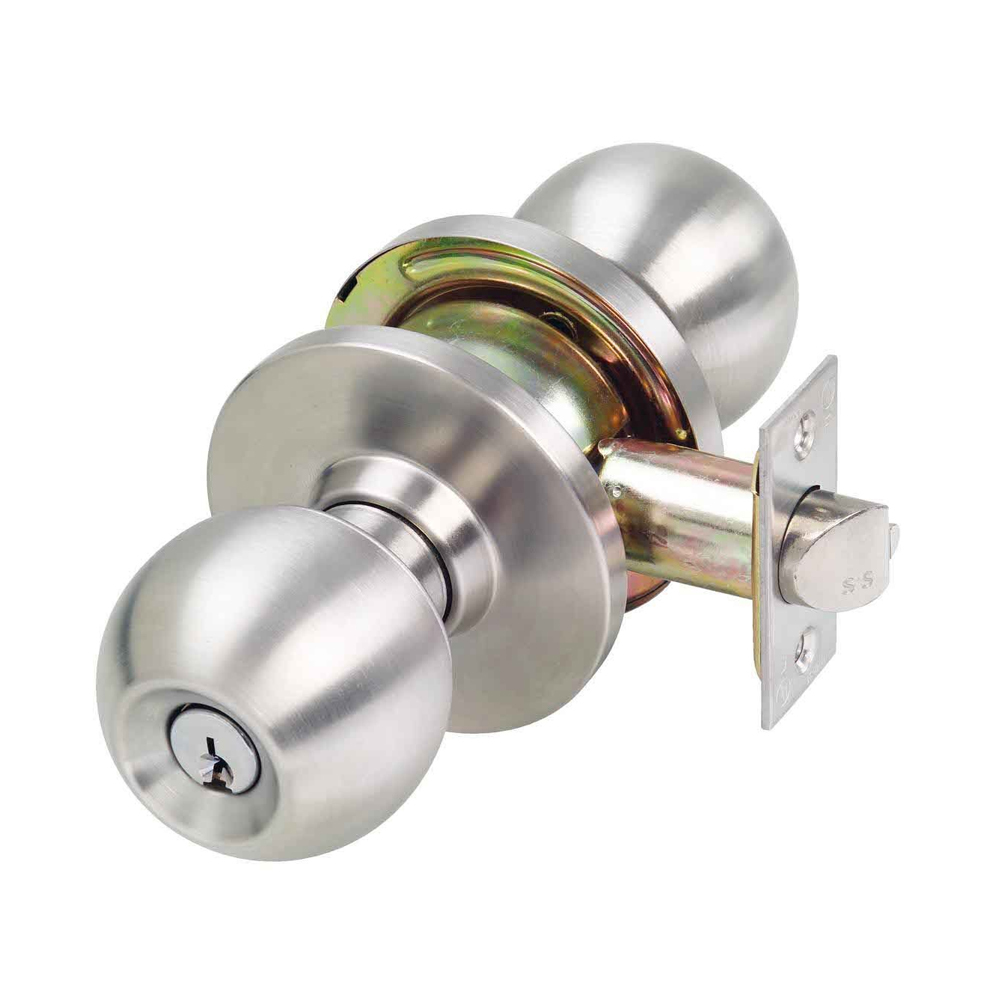

Yale Commercial Key in Knob Entrance Set
YK16/EXT/SS

Entrance Knob are have a key and are used at entrances to buildings or other spaces such as offices or conference rooms.

Entrance Knob Function - Outside key unlocks outside knob. Inside knob free at all times, push button locks outside knob.

• The Yale Commercial Series Locksets incorporate a cylindrical chassis design housing a PD cylinder.
• The Yale Commercial Series offers a wide range of functions to accommodate a broad range of applications.
• For added security it is recommended that Yale Commercial Series Knob and Lever Locksets are used in conjunction with Yale Commercial Deadbolts.

Features:

• Yale Commercial Series cylindrical locksets have been successfully tested up to 2 hours on fire door assemblies in accordance with Australian Standard AS-1905 Part 1, Fire Resistant Doorsets
• Stainless steel latch bolt
• Standard "PD" type cylinder keyed to C4 profile with two keys
• Supplied individually keyed with two keys per lock

Specifications:

• Door Function: Entrance Set
• Diameter Rose: 75mm
• Knob Projection: 69.5mm
• Strike: 70mm x 27mm x 1.2mm
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door Handing: Non-handed
• Key Blanks: V06 5PIN C4 (Standard)
• Backset: 60mm
• Door Thickness: 32mm - 46mm
• Fire Rated: Yes
• Finish: Satin Stainless Steel
