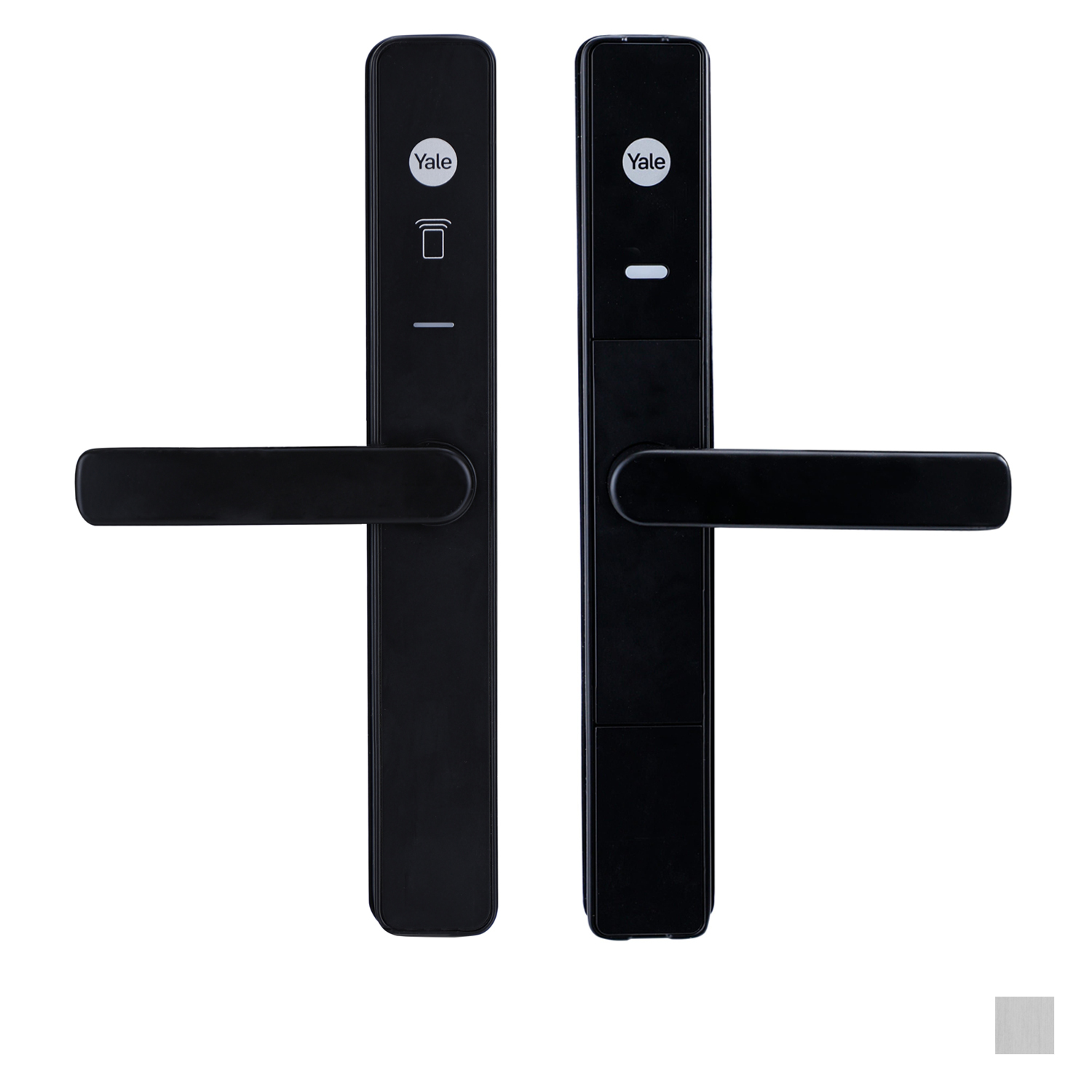

Yale Unity Digital Security Screen Door Smart Lock

Screen Door Lock is commonly used in residential area. Necessary to make sure the screen door closes securely.

Screen Door Lock Functions - secures the screen door in a closed position preventing the door from lifting or removing it from the sliding door track on which it slides.

The Unity Security Screen Door Lock provides seamless entry into your home.

Using various technologies including Bluetooth, Wi-Fi and GPS as well as the Yale Access App, the auto-unlock feature unlocks your door as you approach.

With Yale Access you can:

  • Lock and unlock your door via your smart device.
  • Grant access to others for one time access, access for a set period of time or a date range.
  • Keep track of children and visitor access.

How many times when you walk up to your screen door and have to search your pockets or bag for your house keys, now imagine walking up to your screen door and your lock unlocks the door as you approach.

An optional 3 point lock kit is available with your Unity Security Screen Door Lock to give you 3 locking points. Activating the 3 point locking is as simple as lifting the lever to throw the bolts.

Lock alert indications shows users the lock mode via a built in LED. The locks has three modes, Unlock (Green), Locked (Yellow) and Secure (Red). You can also press the internal electronic button to lock and unlock from the inside if you choose.

The built in door position sensor checks the status of the door and tells you if your door is securely closed and locked.

Include 2 x Contactless Key Cards.


  • Digital Deadlocking
  • Fits industry standard cut out/door preparation
  • Total Control via Yale Home APP - The Yale Home
  • App allows you to lock and unlock your door, grant
  • access to others and keep track of visitor access.
  • Auto Unlock
  • Tailor User Access
  • Lock alert
  • 24/7 Lock Activity Trails
  • Door Position Sensor
  • 100% keyfree


  • Australian Standard:
    • AS4145.2.2008
    • SL6 Security
    • D7 Durability
  • Compliance: Regulatory Compliance Mark (RCM) for Australia and New Zealand
  • Locking Type:
    • Single point Zinc diecast screen door mortice and locking furniture
    • Self latching with stainless steel hook
    • Deadbolt for improved security performance
    • Additional 3 point locking kit with hook bolts actuators for premium security.
  • Door Thickness: 18-25mm
  • Door Preparation: Fits industry standard cut outs/door preparation
  • Retrofits: Retrofits Lockwood 8654, Whitco Tasman Mk2 & Yale Quattro Screen Door Locks
  • Handing: Suits left or right hand opening doors
  • RFID: 2 x Contactless Key Tags
  • IP Rating: IP55
  • Operating Temperature: -25 - 70 Degrees Celsius
  • Humidity: 0 - 90%
  • Power: 4 x AA Alkaline batteries
  • Battery Life on Lock: Approximately 12 months
  • Low Battery Warning: 20%
  • Volume Settings: Mute, Low, High
  • Use: Security Screen Doors, not for use where internal escutcheon is directly exposed to outside elements e.g. an outdoor gate.
  • Available Finish:
    • Matt Black
    • Silver
Brand Yale
