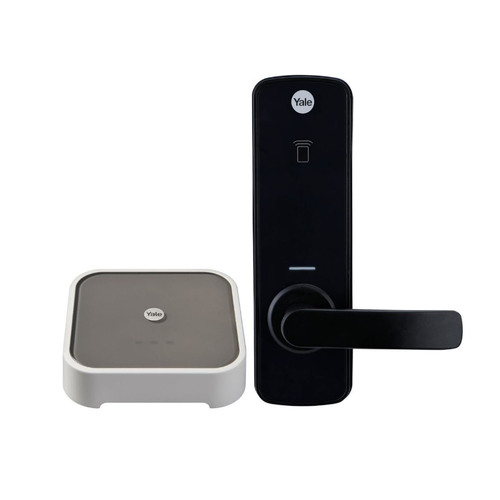

Yale Unity Entrance Smart Lock with Connect Plus Bridge

Smart Lock is designed for medium to heavy duty applications. Its full size lever handles and its large 10 digit keypad enables to control access in a wide variety of applications.

Smart Lock Function - The door can be unlocked by entering the correct code on the digital keypad (allowing keyless entry).


  • Lose Your Keys. For Good
  • Designed to suit the Australian market, the Unity Entrance Lock achieves patented digital dead locking technology, locking both the internal and external handles of your lock
  • Lock alert indications shows users the lock mode via a built in LED. The locks has three modes, Unlock (Green), Locked (Yellow) and Secure (Red)
  • Controllable by either the Yale Home APP, key card or Yale Smart Keypad, the Unity Entrance Lock provides you with a range of options to control your lock
  • Yale Home APP allows you to lock and unlock your door, grant access to others and keep track of visitor access, all via your smartphone
  • Grant users one time access, access for a set period of time or a date range, avoiding any lost keys or having your keys stolen or copied
  • Unity Entrance Lock with Connect PLUS Bridge allows you to access your lock from wherever you are
  • Allowing you to lock and unlock, change PIN codes and lock settings remotely.
  • Yale Connect PLUS Bridge allows Works with ability, integrating into your Apple, Google, Samsung or Alexa smart home hubs
  • Keyless Entry
  • Digital Deadlocking
  • Tailored User Access
  • Lock Alert
  • Total Control Via App
  • Auto Unlock
  • Battery Powered
  • Battery Back-Up
  • Time Controlled User Codes


  • Lock Type: 530 Latch
  • Door Thickness: 35mm to 60mm
  • Backset: 60mm to 70mm (70mm latch sold separately – Y530-222SC)
  • RFID: 2 x Contactless Key Tags
  • Power: 4 x AA Alkaline batteries
  • Battery Life on lock approximately: 12 months
  • Low Battery Warning: 20 percent
  • Volume Settings: Off, Low and High
  • Operating Temperature: -25-70 degree celsius
  • Humidity: 0-95 percent
  • IP Rating: IP54
  • Voice assistant compatible: Yes
  • Remote access: Yes
  • WiFi: Yes
  • Handing: Reversible

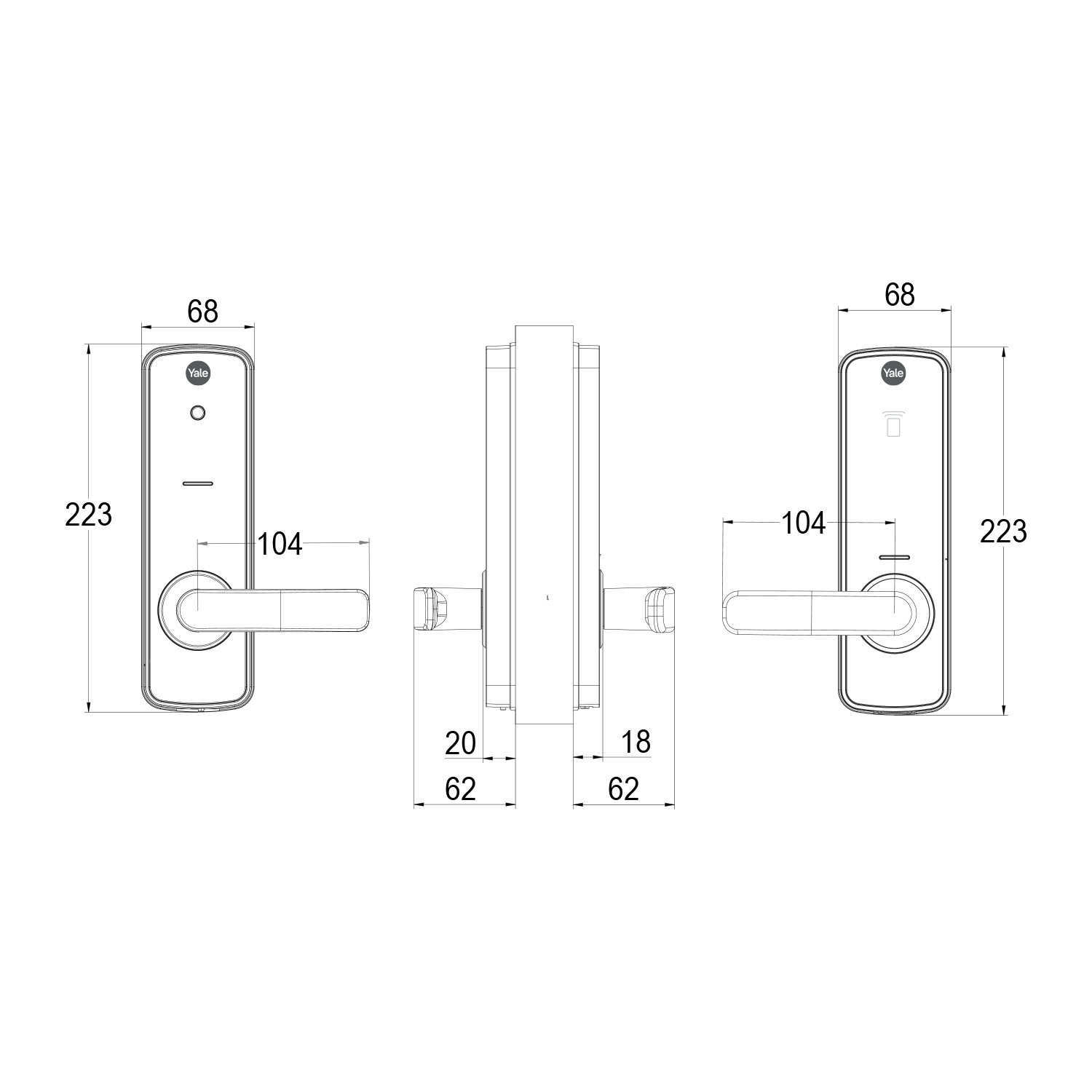

  • Lever Length: 104mm
  • Height: 223mm
  • Width: 63mm
  • Finish: Matt Black


  • Yale Smart Keypad sold separately


  • Meeting Australian lock standards AS4145.2:2008, SL8 and D8, you can be sure that the Unity Entrance Lock meets your security needs.
  • Approved Standards Rating Level Security S8, Durability D8
  • Regulatory Compliance Mark (RCM) for Australia and New Zealand
Brand Yale
