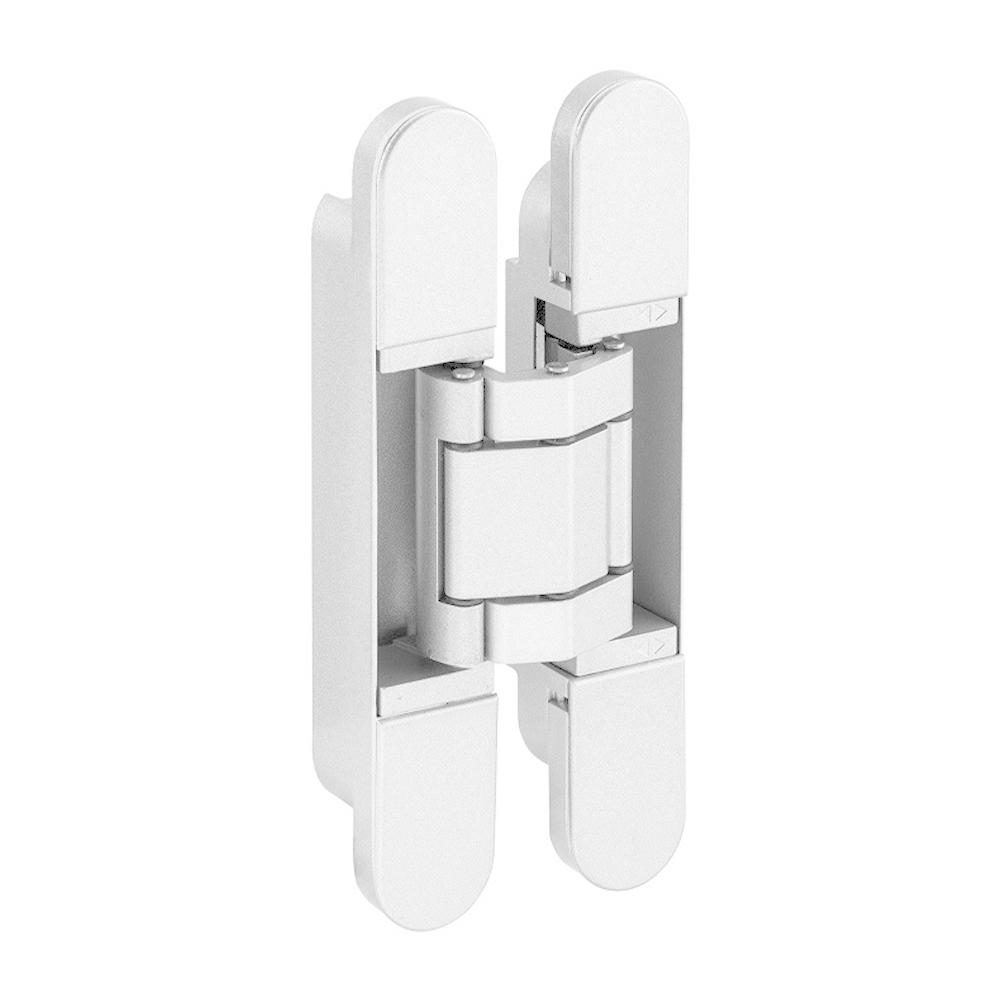

Zanda 3D Adjustable Concealed Hinges
5970.WHT

Concealed Hinge is tucked away behind the door and out of sight. The concealed hinge's ability to be adjusted for various drilling and fitting patterns is an additional benefit.

Concealed Hinge Function - to provide a smooth surface to the outer appearance of a door run.

Features:

• Can be used on interior or exterior doors.
• These hinges allow three-dimensional adjustment (depth, vertical and horizontal). This means the door can be aligned with the wall to perfection where there is frameless architecture.
• Hinge reversible for right/left doors.
• Comes with Self-lubricating anti-friction washers.
• Fire proof and tested for 200,000 cycles

Specifications:

• Width: 25mm
• Height: 152mm
• Max. Opening Angle: 180 degrees
• Min. Door Thickness: 36mm
• Max. Door Weight:
  • 2 x Hinge - 50kg
  • 3 x Hinge - 60kg
• Finish: White
