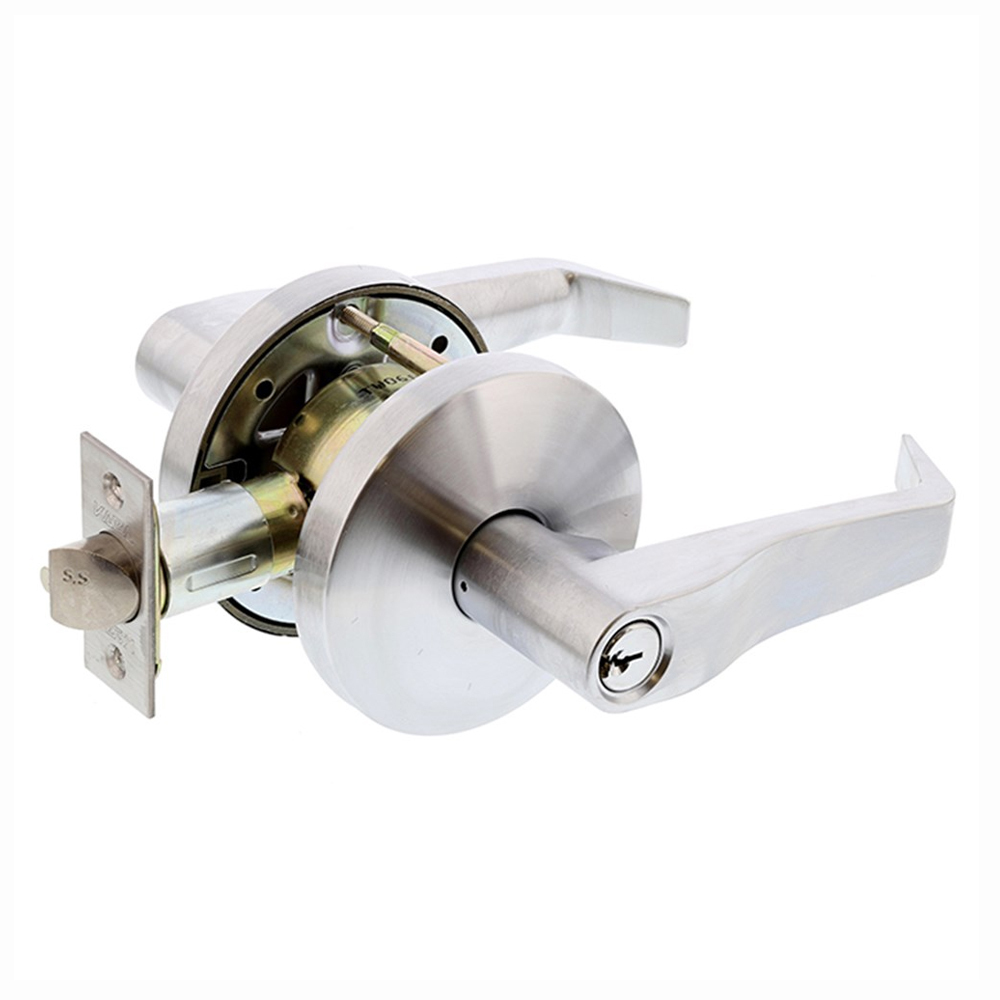

Dormakaba Door Lever Handle on Round Rose Classroom Set
LC70ASCP70

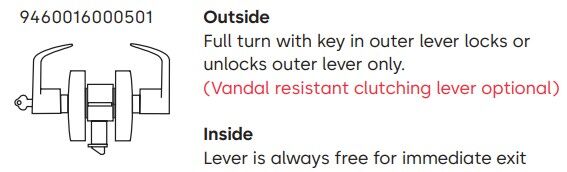

Classroom Outside Function - Operated by handle when unlocked. Key locks or unlocks handle.

Classroom Inside Function - Opened by handle at all times.

Features:

• Dormakaba LC series classroom leverset
• Commercial grade
• Screw post to prevent lock rotation are removable
• DDA compliant lever design
• Cylindrical fixing
• Silca LW5 profile 6 pin cylinder
• Incorporates the popular PD 8221 barrel
• Compatible with most restricted keying systems
• Boxed and bar coded
• 2 keys supplied

Specifications:

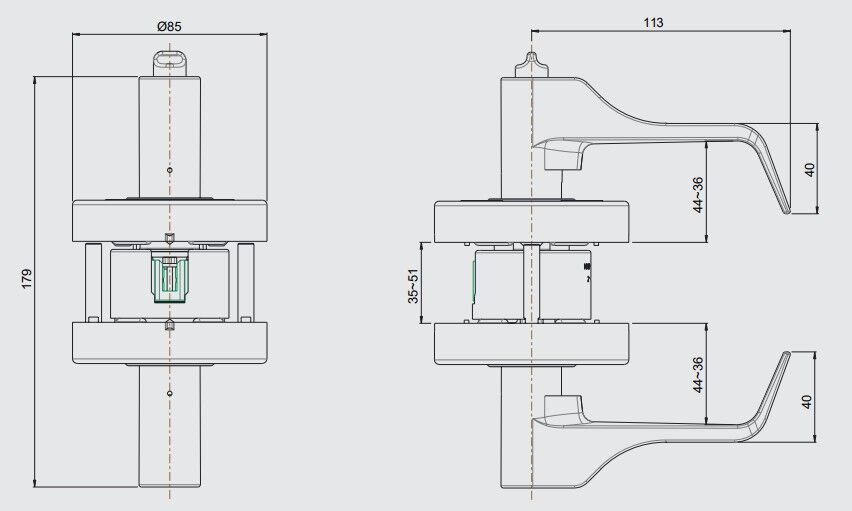

• Door Thickness: 35mm - 51mm
• Backset: 70mm
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW5 Profile
• Door Handing: Non-handed levers
• Rose Diameter: 85mm
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Has Classroom Function: Yes
• Function: Classroom
• Lock Grade: Commercial
• Lock Type: Cylindrical
• Fire Rated: Yes
• Finish: Satin Chrome
