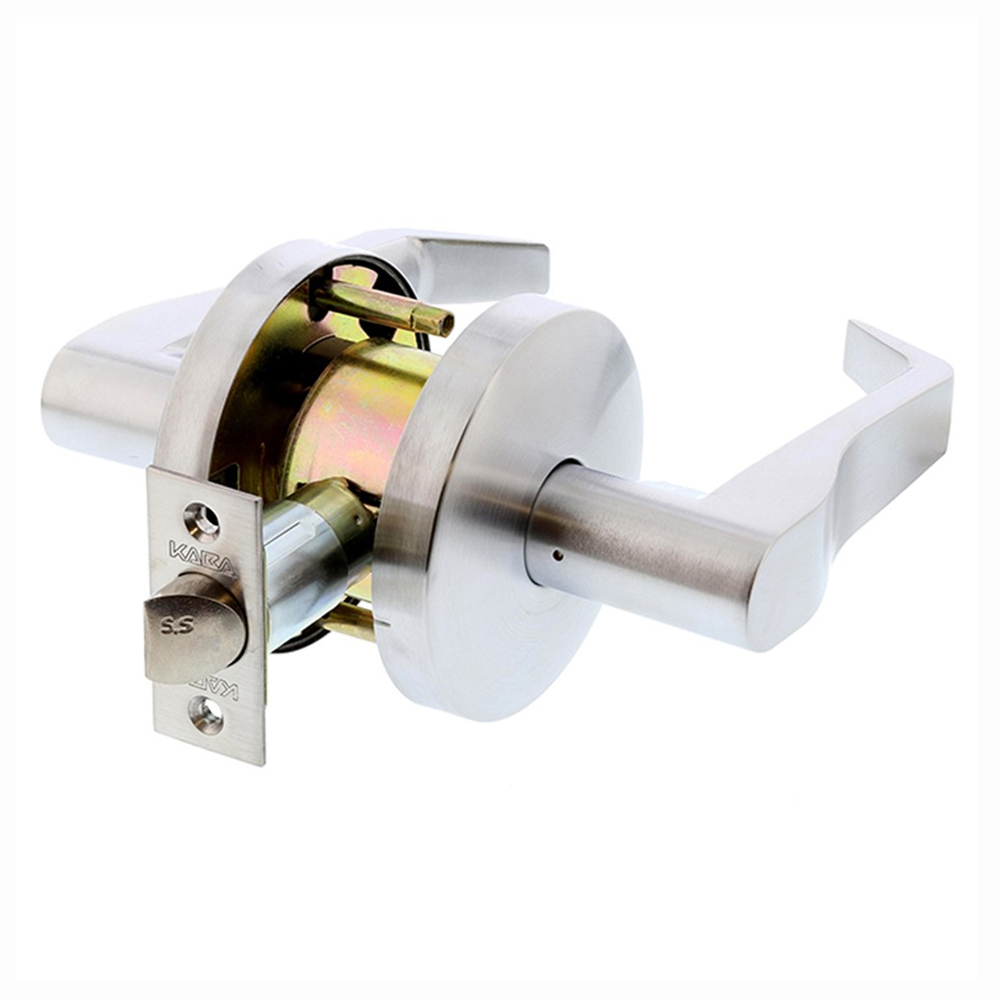

Dormakaba Door Lever Handle on Round Rose Passage Set
LC10ASCP70

Passage ideal for interior hallways, closets and other rooms that don't need privacy locks.

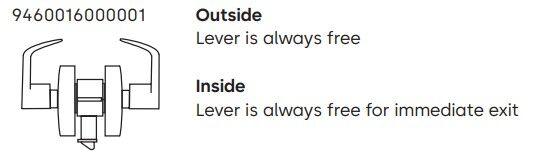

Passage Function - Both outside and inside levers are always free.

Features:

• Dormakaba LC series commercial grade passage leverset
• Screw post to prevent lock rotation are removable
• DDA compliant lever design
• Cylindrical fixing
• Boxed and bar coded

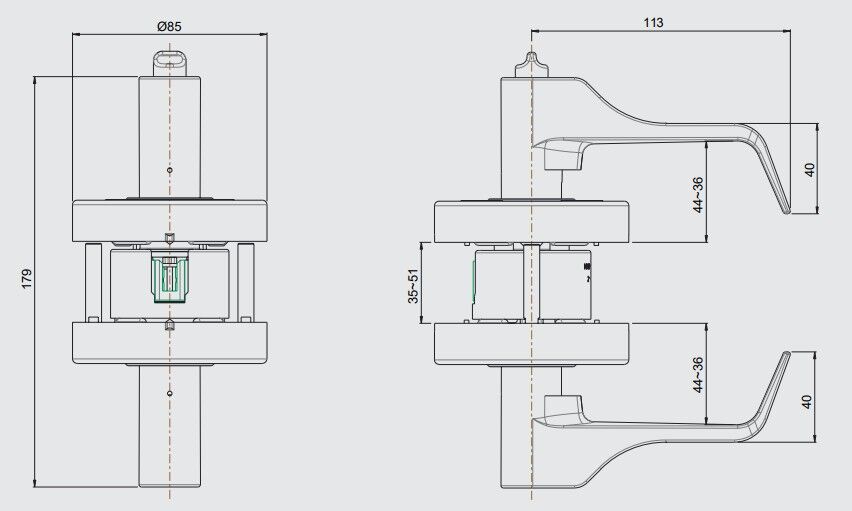

Specifications:

• Door Thickness: 35mm - 51mm
• Backset: 70mm
• Strike: 28mm x 70mm x 2mm
• Latch: 70 mm (12.7 mm throw)
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed levers
• Rose Diameter: 85mm
• Function: Passage
• Lock Grade: Commercial
• Lock Type: Cylindrical
• Fire Rated: Yes
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Finish: Satin Chrome
