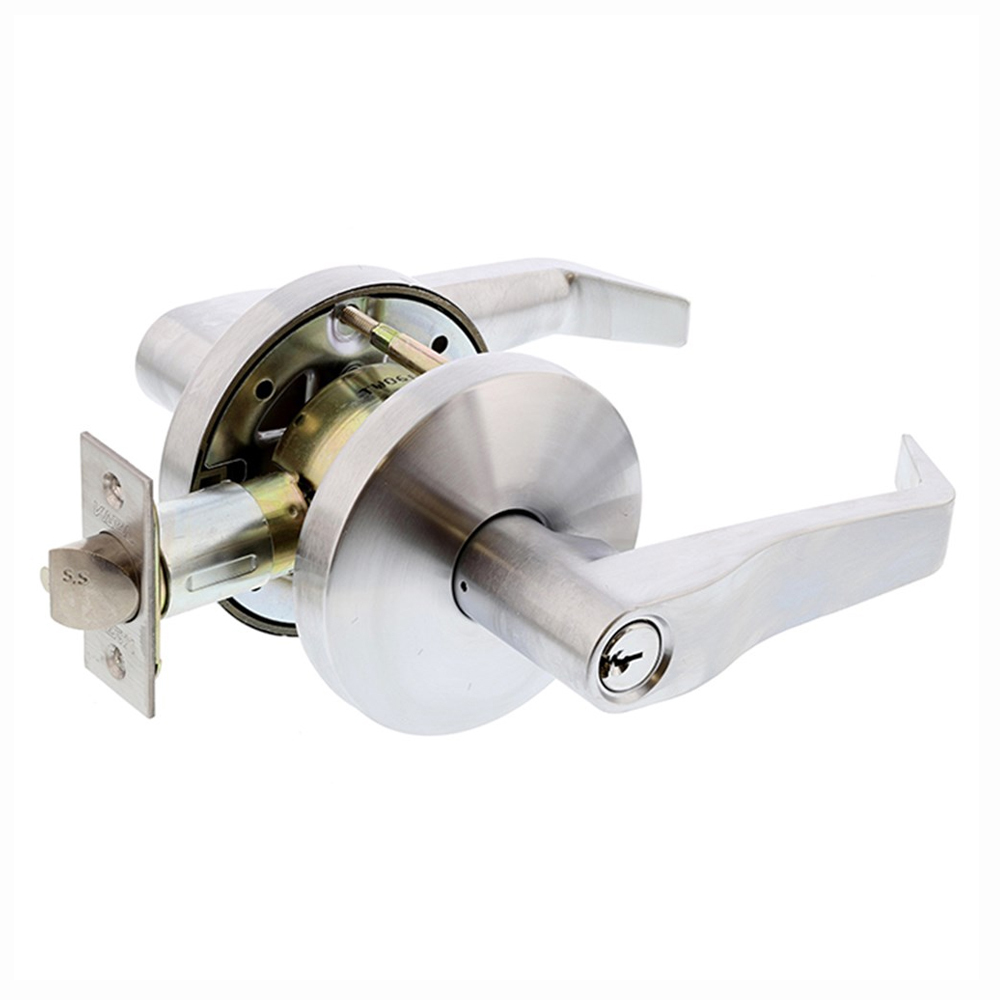

Dormakaba Door Lever Handle on Round Rose Entrance Set
LC53ASCP70

Entrance Set is defined as a lock that can be unlocked by a key from the outside when the outer lever is locked by a turn button on the inside lever.

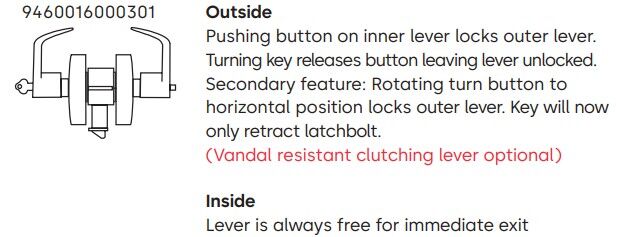

Entrance Set Function - Outside key unlocks the outside lever, the inside knob is free at all times, push button locks the outside lever.

Features:

  • Dormakaba LC series entrance leverset
  • Commercial grade
  • Screw post to prevent lock rotation are removable
  • DDA compliant lever design
  • Cylindrical fixing
  • Silca LW5 profile 6 pin cylinder
  • Incorporates the popular PD 8221 barrel
  • Compatible with most restricted keying systems
  • Boxed and bar coded
  • 2 keys supplied

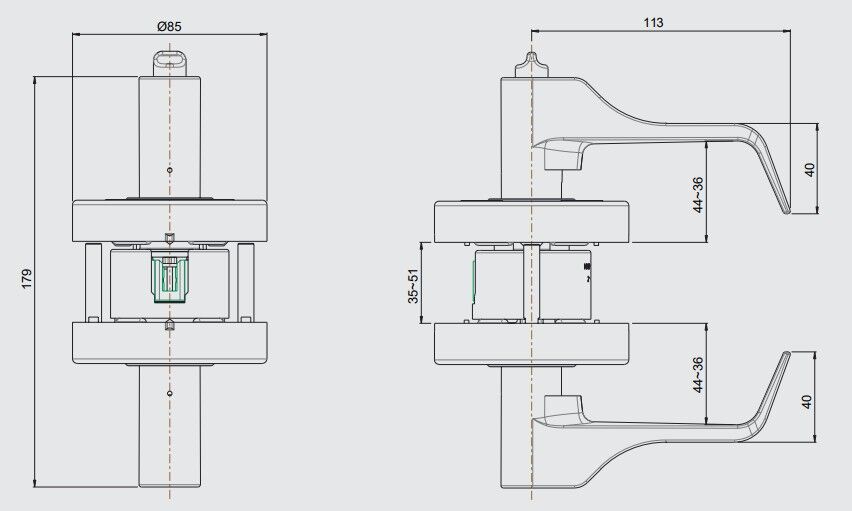

Specifications:

  • Door Thickness: 35mm - 51mm
  • Backset: 70mm
  • Strike: 28mm x 70mm x 2mm
  • Latch: 70mm (12.7mm throw)
  • Latch Face Plate: 57mm x 25mm
  • Cylinder: LW5 Profile
  • Door Handing: Non-handed levers
  • Rose Diameter: 85mm
  • AS1428.1 Compliant Lever (AS1428.1CO): Yes
  • Has Entrance Function: Yes
  • Function: Entrance
  • Lock Grade: Commercial
  • Lock Type: Cylindrical
  • Fire Rated: Yes
  • Finish: Satin Chrome



SKU DORMLC53ASCP70
Barcode # 9322844089081
Brand Dormakaba
