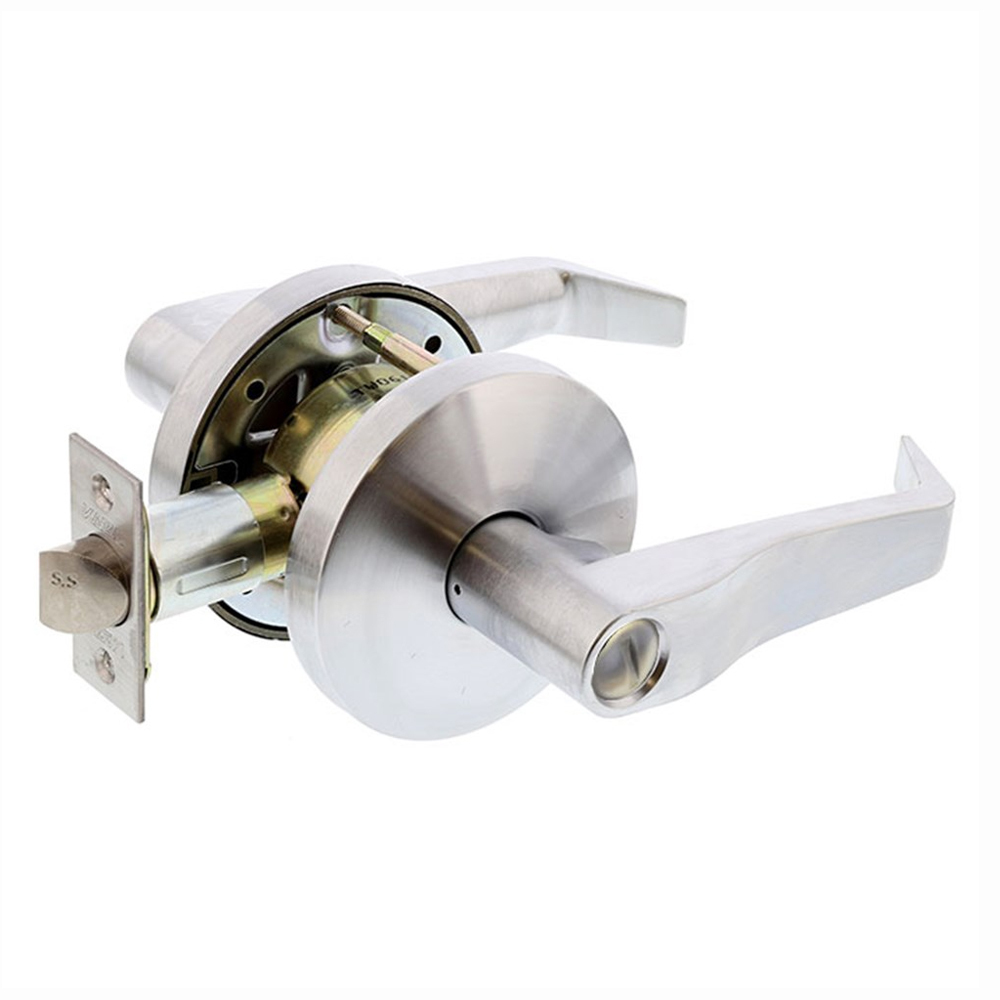

Dormakaba Door Lever Handle on Round Rose Privacy Set
LC40ASCP70

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Features:

• Dormakaba LC series commercial grade privacy leverset
• Automatic kick off
• Screw post to prevent lock rotation are removable
• DDA compliant lever design
• Cylindrical fixing
• Boxed and bar coded

Specifications:

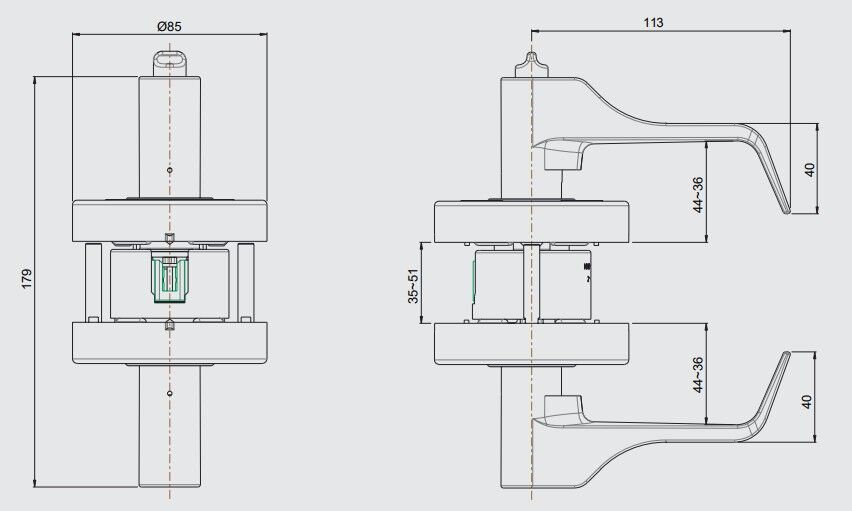

• Door Thickness: 35mm - 46mm
• Backset: 70mm
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch Face Plate: 57mm x 25mm
• Door Handing: Non-handed levers
• Rose Diameter: 85mm
• AS1428.1 Compliant Lever (AS1428.1CO): Yes
• Function: Privacy
• Lock Grade: Commercial
• Lock Type: Cylindrical
• Fire Rated: Yes
• Finish: Satin Chrome
