Halliday & Baillie Bracket with Light Wiring Capability
HB526

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 6-8 business weeks after payment is made.

Stair Rail Bracket - is installed directly on a wall. Typically used for Commercial & Domestic projects

Stair Rail Bracket Function - are used to attach stairway railings to the wall of a stairway for safety and utility

Features:

  • The Halliday + Baillie HB 526 has been developed from the HB 530 Bracket and incorporates a channel in both the body and upstand allowing for wiring to connect through the bracket to LED lighting strips
  • Includes all fasteners
  • Epoxy required for installation, not included
  • Been tested and comply with AS/NZ1170. 1:2022 Structural Design Action Standards, and the International Building Code (IBC 2003) 200lb fall rating. In addition, all of our brackets work within the New Zealand Building Code Acceptable Solutions D1/AS1 Access Routes, depending on the balustrade used.

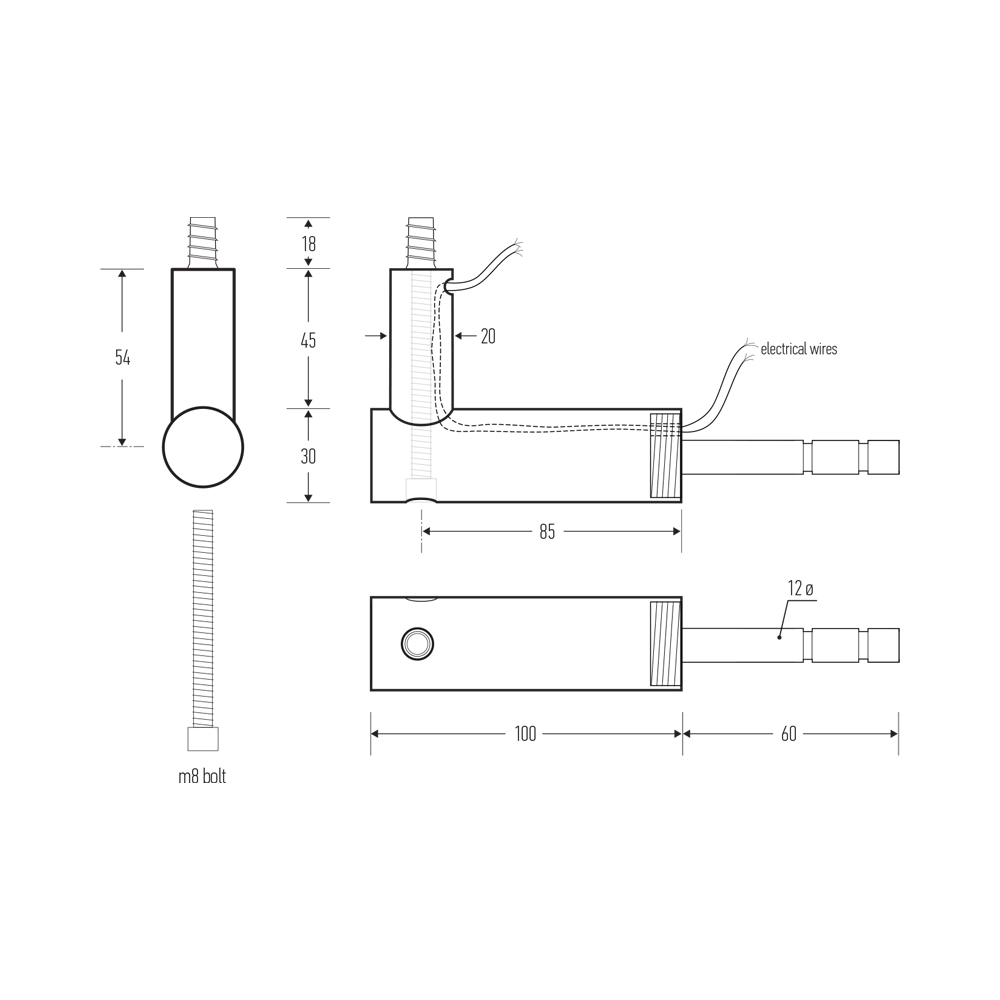

Specifications:

  • Material: Milled 316 Marine Grade Stainless Steel
  • Projection from wall: 100mm (Off stand)
  • Overall Height: 76mm (Up stand)
  • Recommended Spacing: 600mm to 800mm
  • Finish: Stainless Steel

Note: cannot be used with glass fixing kits

SKU HB526SS
Brand Halliday & Baillie
