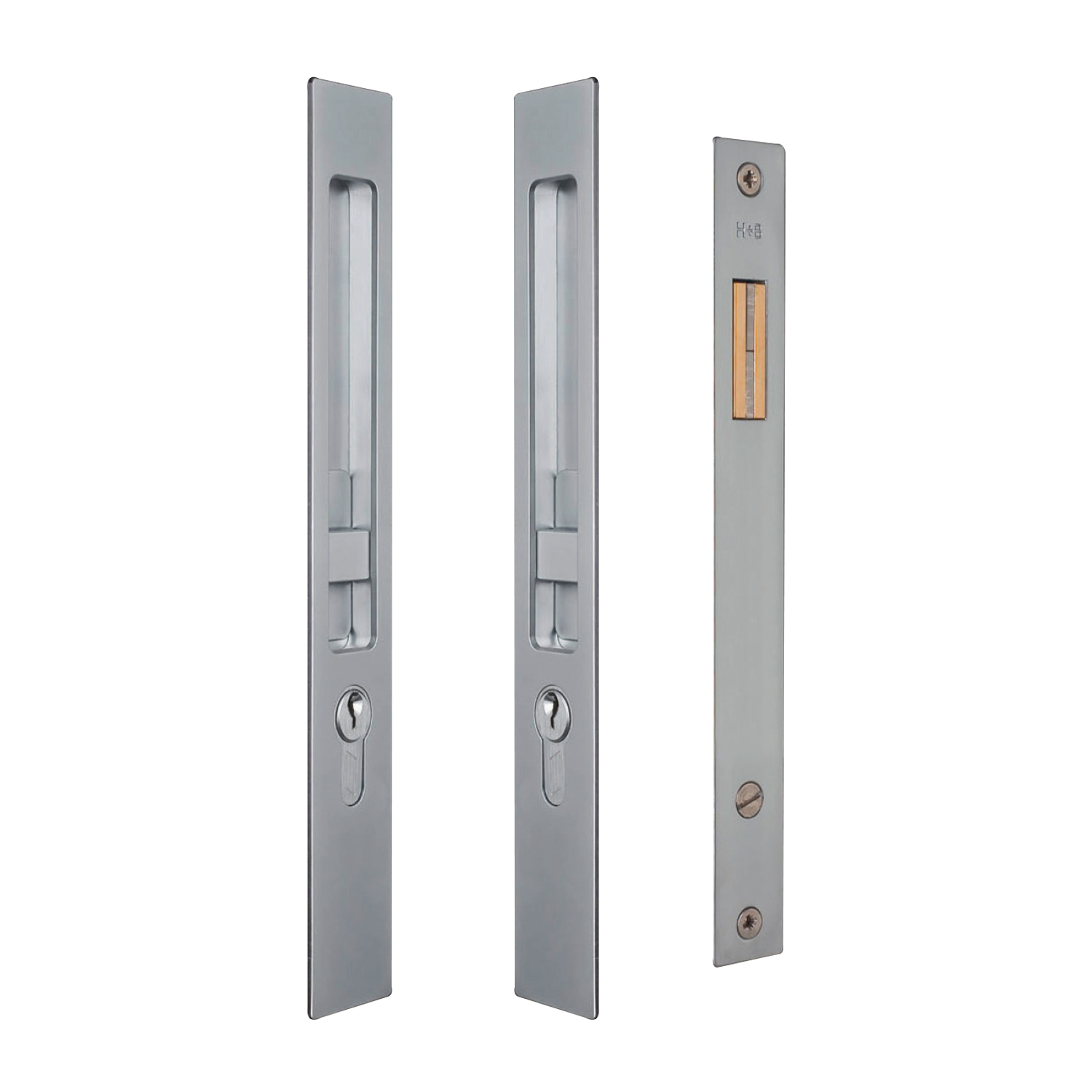

Halliday & Baillie Sliding Door Lock Set with Keyhole Snib/Snib

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.


  • 1 x HB 630 Series Lock Body
  • 2 x HB 668 Flush Pulls
  • 2 x HB 604 Timber Fixing Kit
  • 1 x Strike and Dust Box - Standard
  • 2 x Spindle Lengths (please specify door thickness for doors over 50mm)
  • Fasteners
  • Cylinder ordered separately for slider thickness


  • Ideal for external timber and aluminium sliding doors where locking is required


  • Flush Pull Material: Diecast Zinc and Brass
  • Lock Body Material: Diecast Zinc, Brass, 316 Stainless Steel
  • Lock Body Length: 163mm
  • Lock Body Width: 15mm
  • Lock Body Depth: 75mm
  • Backset: 55mm
  • Lock Faceplate Length: 213mm
  • Lock Faceplate Width: 25mm
  • Minimum Door Thickness: 38mm

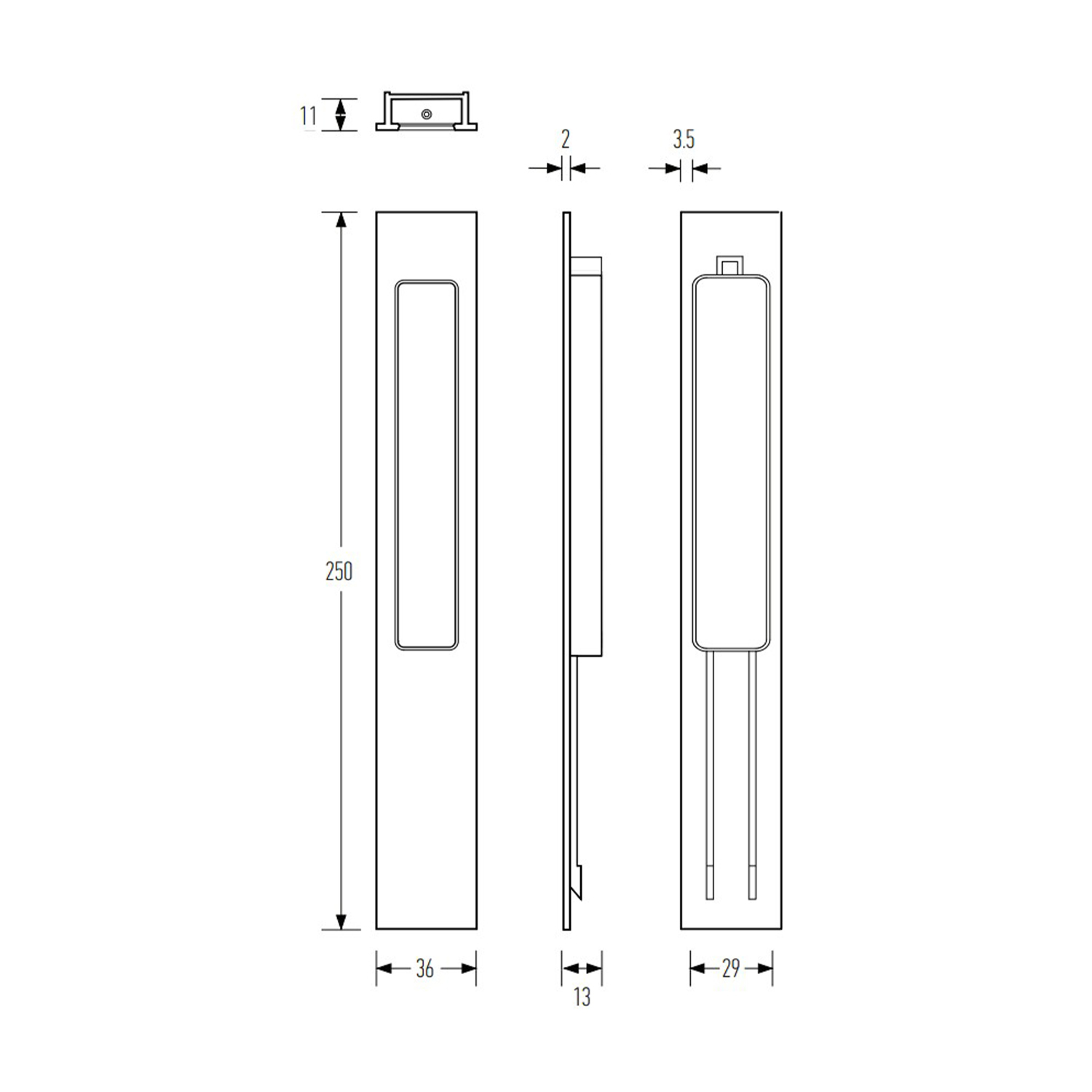

  • Flush Pull Length: 250mm
  • Flush Pull Inner Length: 133mm
  • Flush Pull Width: 36mm
  • Flush Pull Inner Width: 29mm
  • Flush Pull Depth: 13mm
  • Internal Depth: 11mm
  • Finish: Satin Chrome
Brand Halliday and Baillie
