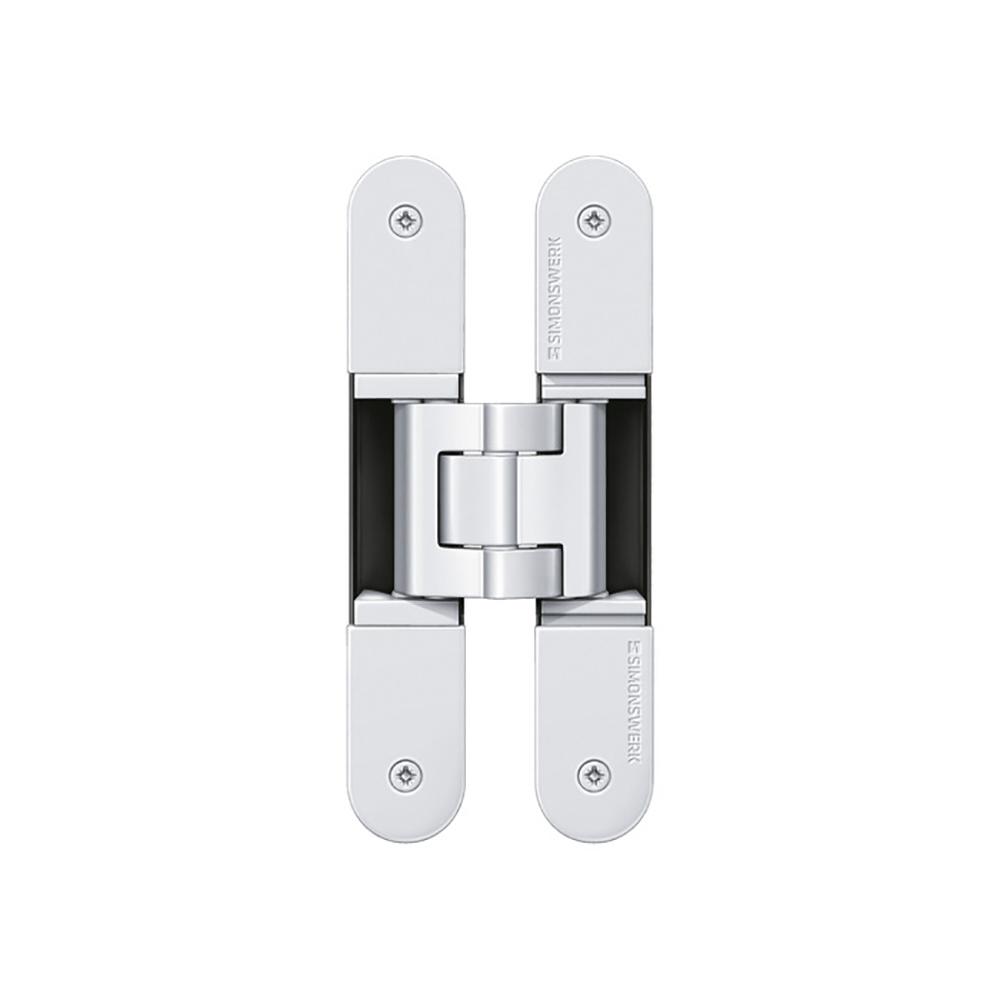

Halliday & Baillie Tectus Concealed Hinge
TE240 3D SW070

Concealed Hinges is also known as Euro hinges or cup hinges, are commonly used in cabinetmaking for a variety of reasons. These hinges are called "concealed" because when the cabinet door is closed, the hinge is not visible from the outside.

Concealed Hinges Function - provide a clean and modern look to cabinets. The absence of visible hardware on the exterior of the cabinet contributes to a seamless and sophisticated appearance, which is especially popular in contemporary and minimalist designs.

Features:

• Provide options for quality residential doors and heavy duty doors distinguished by exceptional quality construction of the hinge body, without the look of a hinge

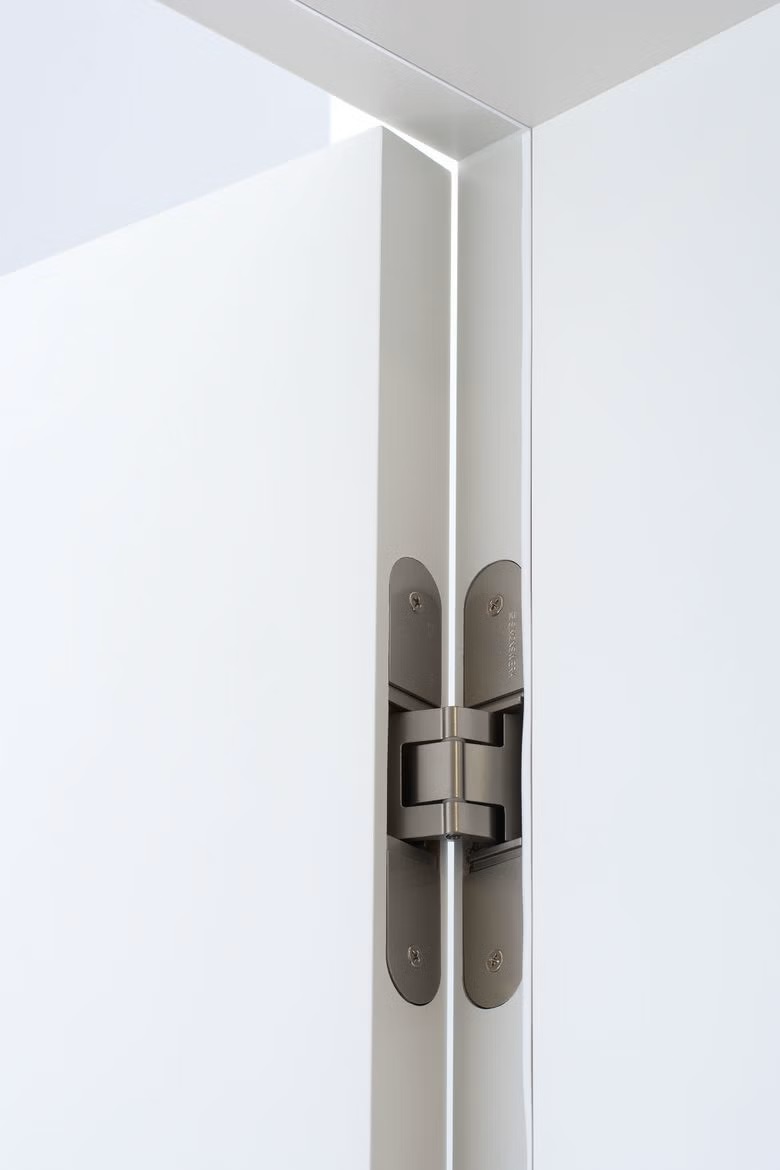

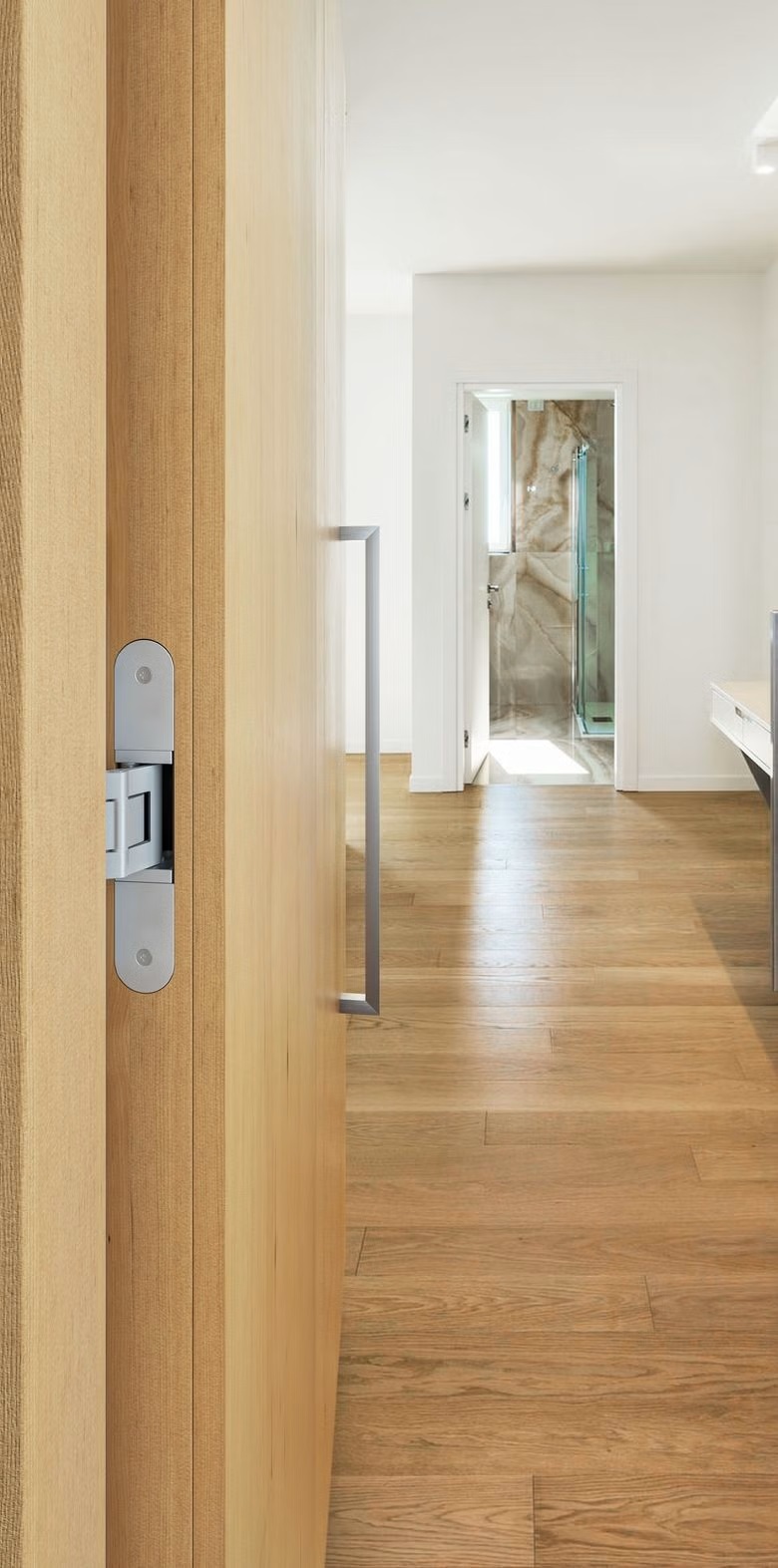

• Perfect for hidden doors, flush cabinetry doors/walls, and wherever a seamless look is required
• The newly developed convenient continuous height adjustment of +/- 3 mm prevents the Specifications:door from sagging and enables the door manufacturer to align the door efficiently and hassle free. All types show a full hinge body which covers the routing entirely
• The small gap between door and jamb avoids finger injury

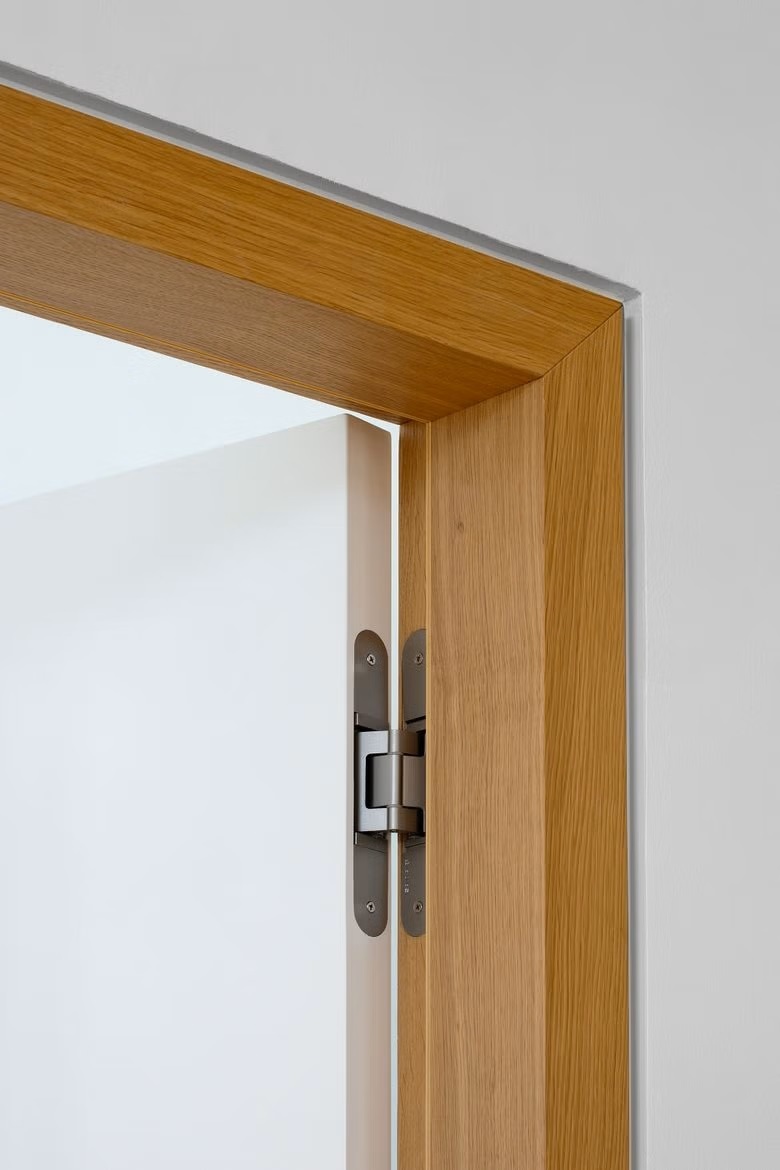

• TECTUS hinges have an opening angle of up to 180 degrees and can be used with wood, steel and aluminium frames
• Hinges can be adjusted in all three dimensions and require no maintenance
• Used on high-quality residential doors and functional heavy-duty doors in public buildings

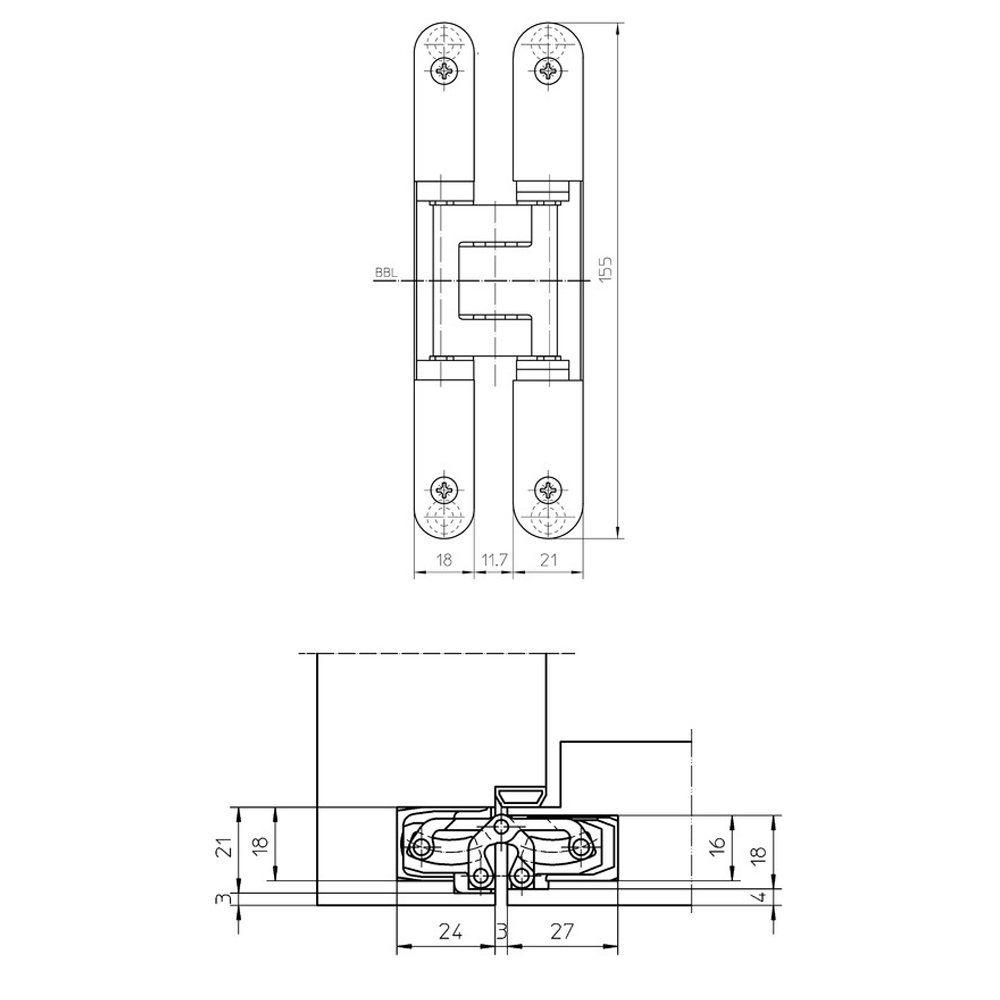

Specifications:

• Load Capacity: up to 60 kg
• Min Door Thickness: 30mm
• Overall Length: 155mm
• Width (Door Part): 18mm
• Width (Frame Part): 21mm
• Cutter Diameter: 16mm
• Collar Ring Diameter: 30mm
• Opening Angle: 180 Degree
• Leaf Type: Timber, Metal
• Frame Type: Aluminium frame, Blind frame, Block frame, Casing frame, Steel frame
• Finish: White
