Halliday & Baillie Pocket Sliding Door Privacy Lock
HB690/35 WHT

Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

Includes:

• 1 x HB 690 Series Lock Body

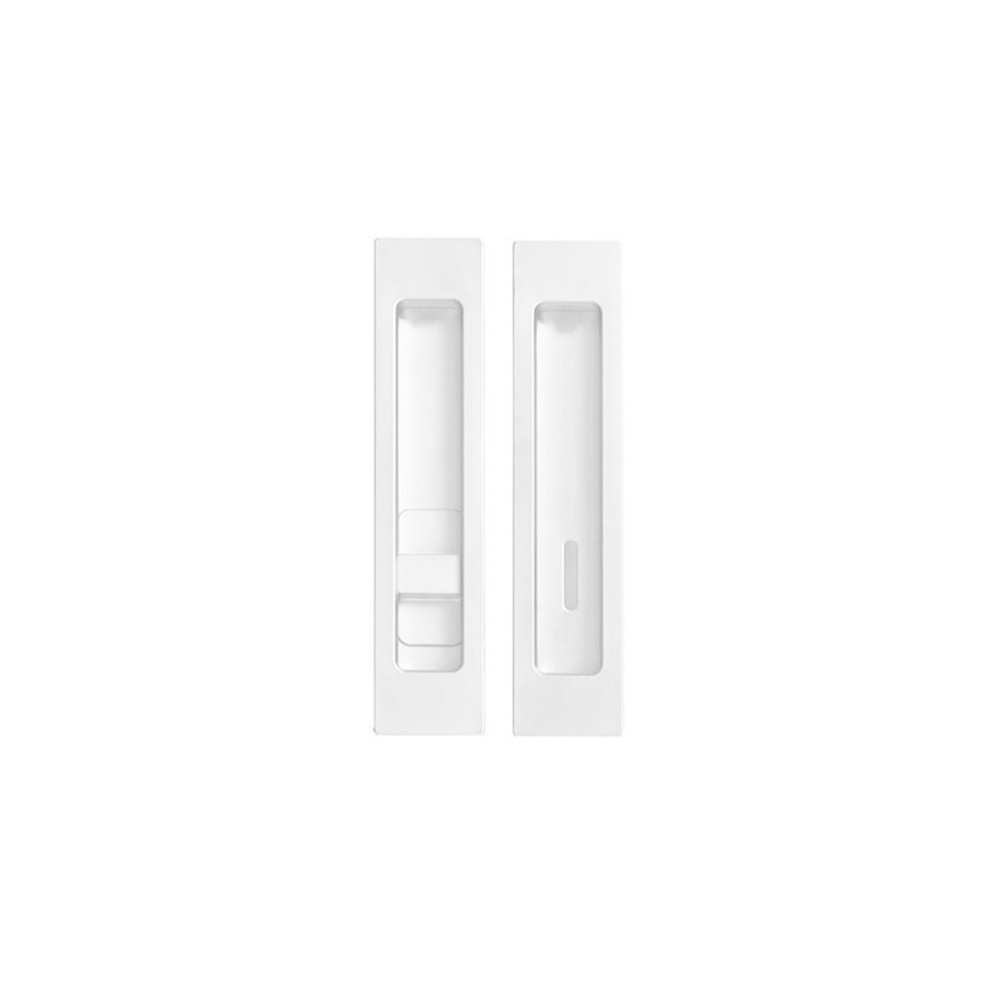

• 2 x HB 660/35 Flush Pulls
• 1 x HB 604 Fixing Kits (one set for HB 693)
• Strike and Dust Box
• 2 x spindle lengths
• Fasteners

Features:

• Has an integrated push button activated edgle pull for pocketed doors.
• The operable "snib" (a slide block that acts like a traditional thumb turn) slides upwards to engage the lock.
• Discrete emergency release indicator pull can be operated with a pen or other object to disenage the lock from the outside
• Standard lock body with shallower flush pull to suit 35mm to 38mm doors
• Suitable for Timber or Wide profile aluminum doors

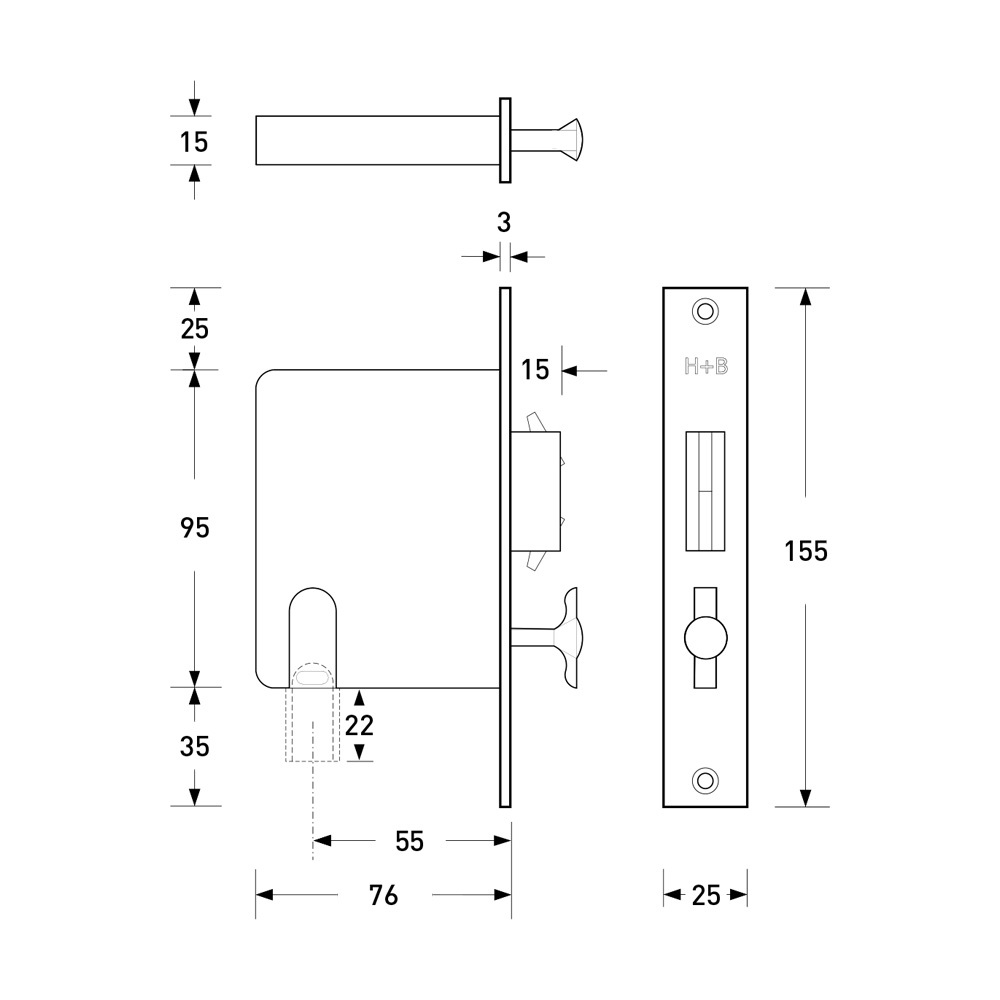

Specifications:

• Material: Diecast zinc with brass and 316 stainless steel
• Backset: 55mm
• Minimum Door Thickness: 35mm
• Height: 175mm
• Width: 75mm
• Length: 54mm
• Internal Grip Depth: 11mm
• Finish: White (Glossy)
