Iver Como Door Lever Handle on Chamfered Backplate Kit

Entrance Lock is defined as a lock where the unlocked by key from outside when outer lever is locked by turn-button on inside lever. Inside lever always unlocked.

Entrance Lock Function - Outisde key unlocks outside knob, inside knob free at all times, push button locks outside knob.

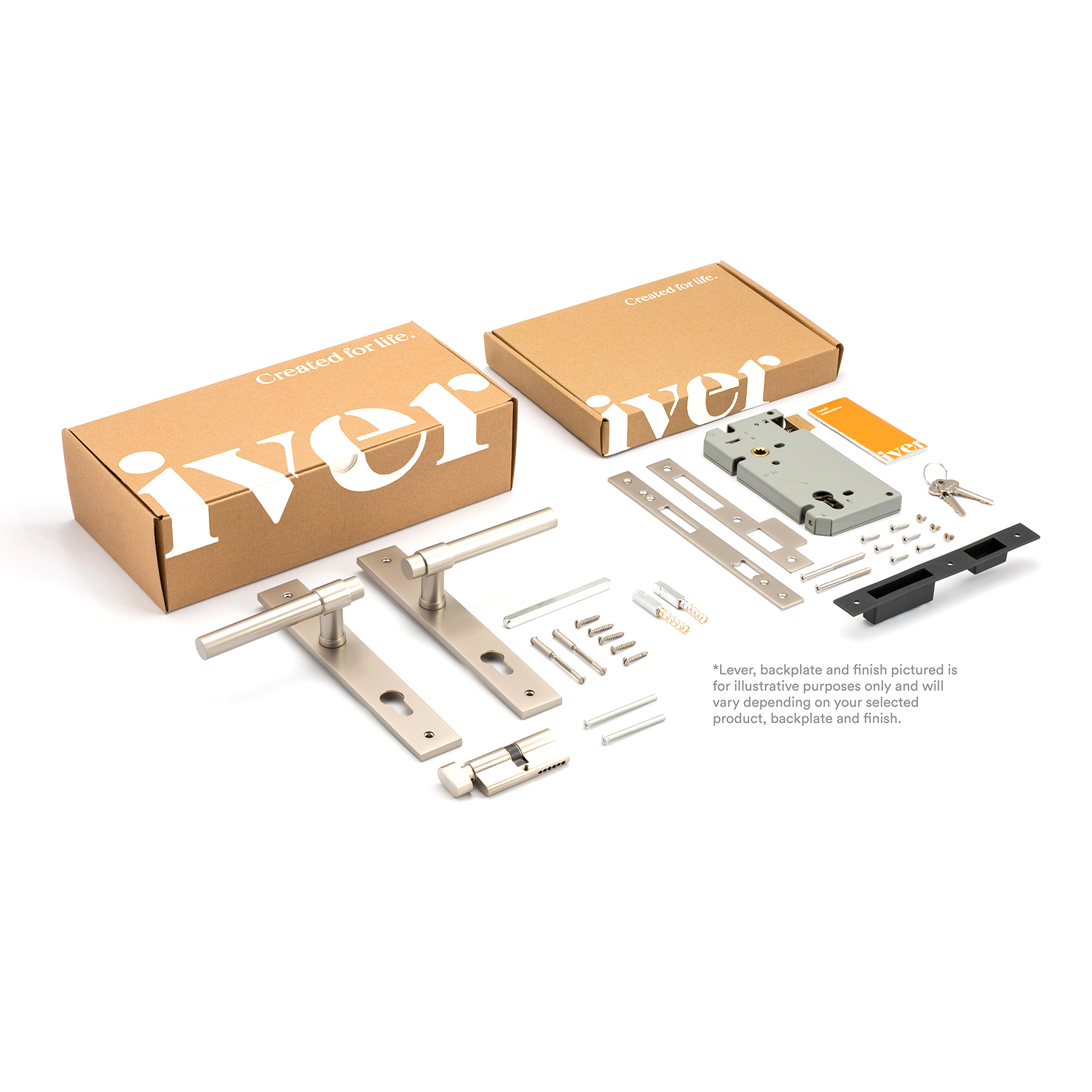

Includes:

• 2 x Como Levers on Chamfered Backplate

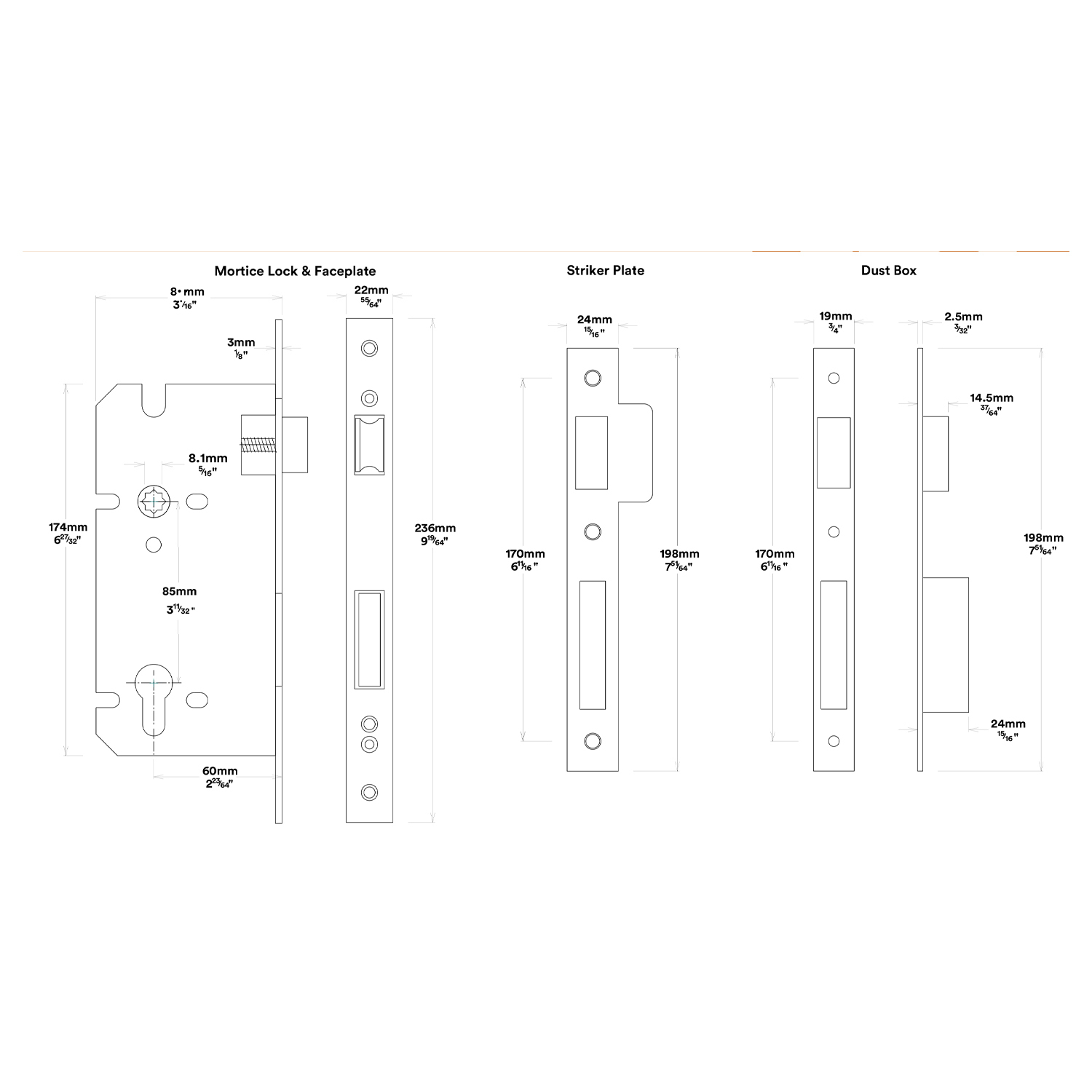

• 1 x Euro Mortice Lock CTC85mm Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

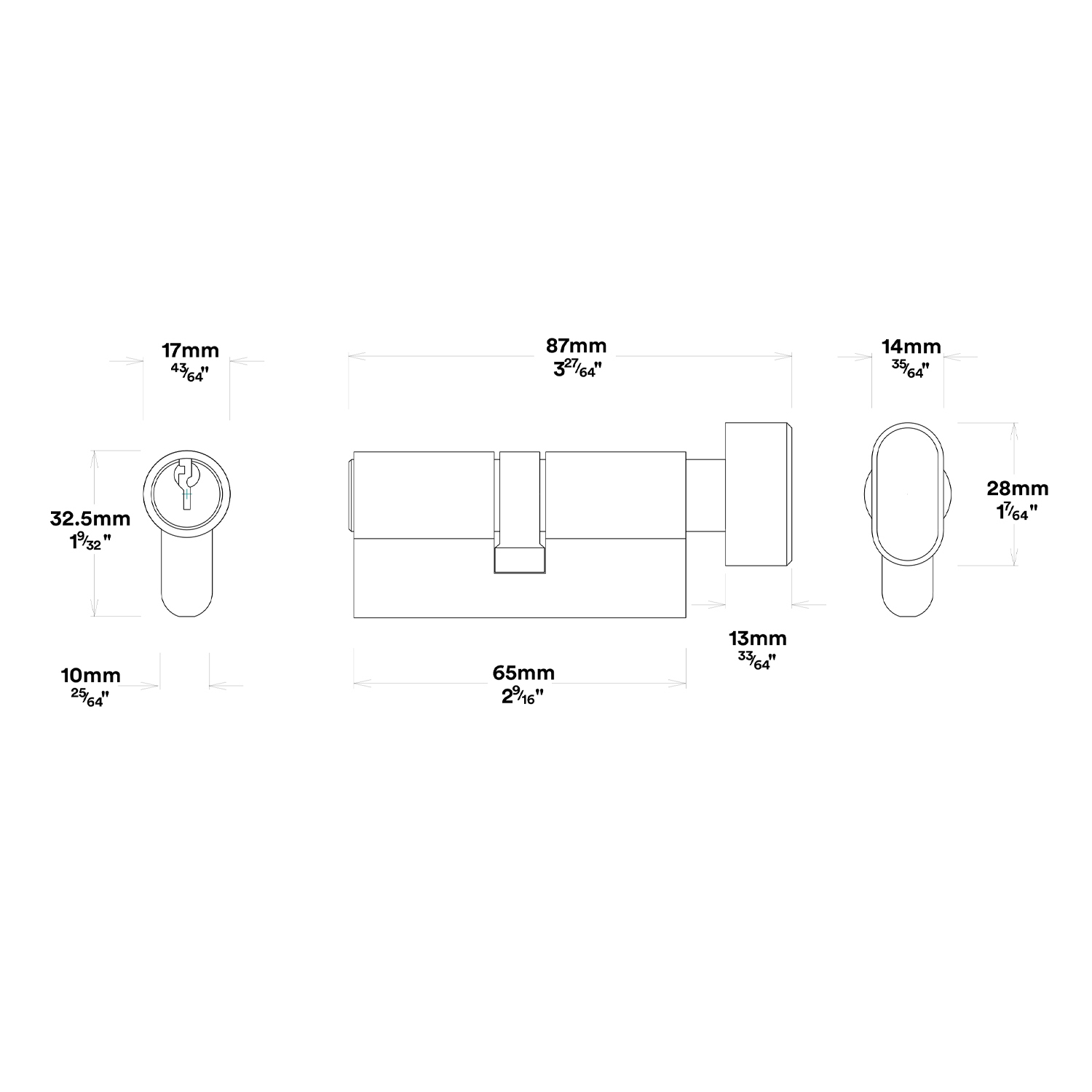

• 1 x Euro Cylinder 5 Pin
• 2 x Keys
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 2 x Tie Bolts
• 18 x Screws
• 1 x Dust Box
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Inspired by the elegant designs of mid-century Italian architecture, the Como lever offers minimalist sophistication
• A tapered front profile is contrasted by a broad top surface that is both functional and tactile
• For external doors that need high security locks, including front and back entrance doors, garage access, patios and storerooms

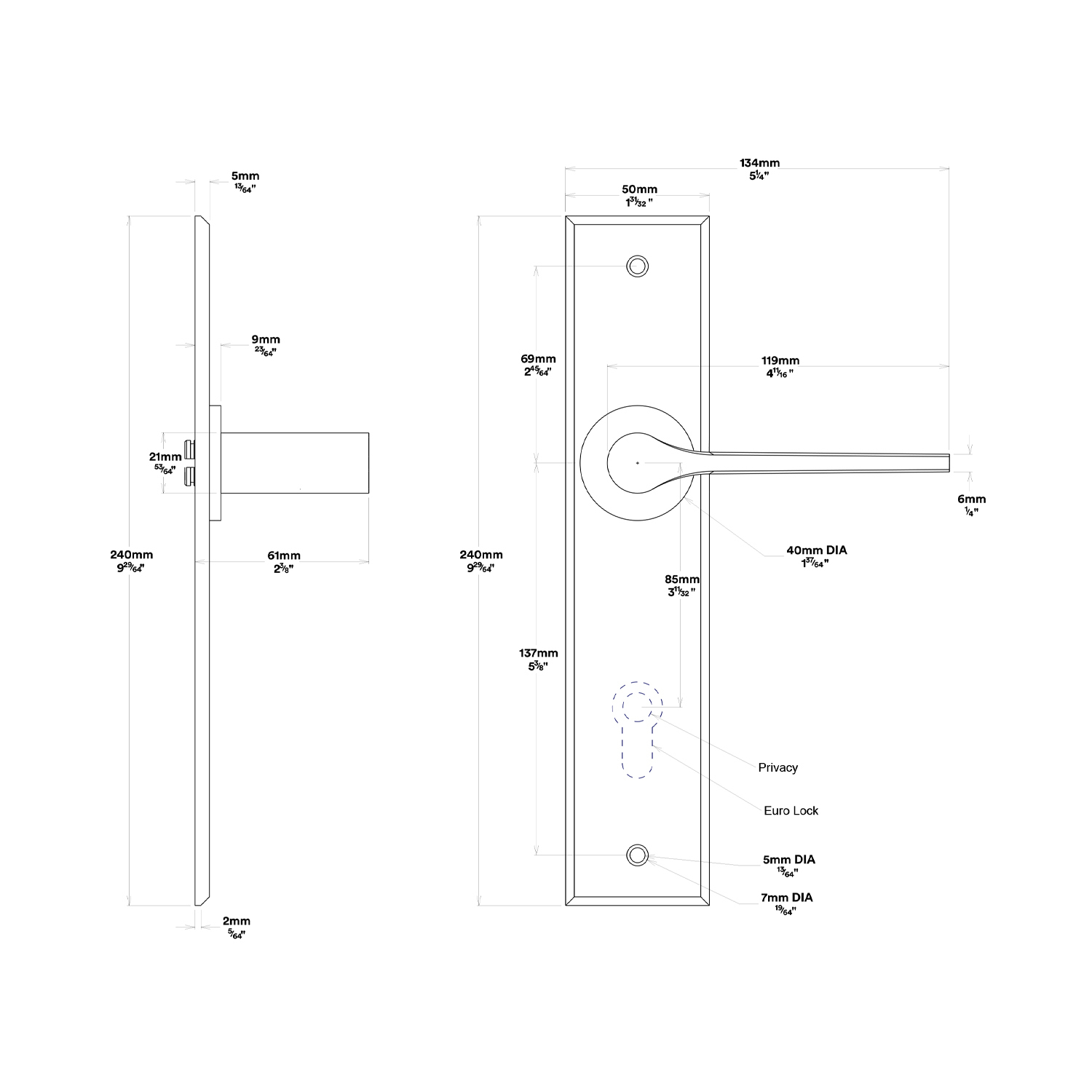

Specifications:

• Height: 240mm
• Width: 50mm
• Length: 119mm
• Projection: 61mm
• Centre to Centre: 205mm
• Function: Key / Key

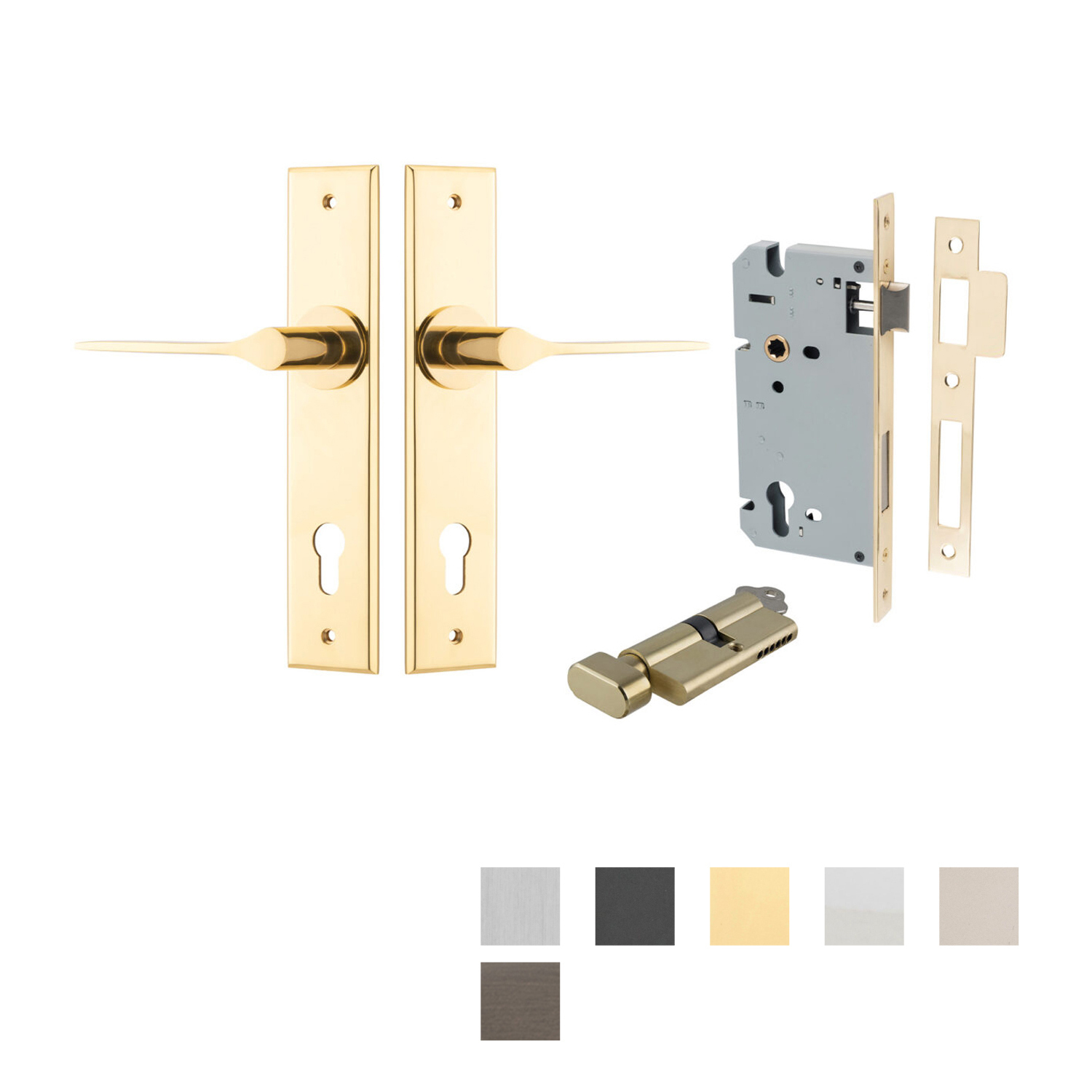

• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Brass
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire-rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
