Iver Helsinki Door Lever on Oval Backplate Privacy Kit with Turn

Privacy is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

Privacy Function - can be locked by a button or a turn piece on the inside with no key function.

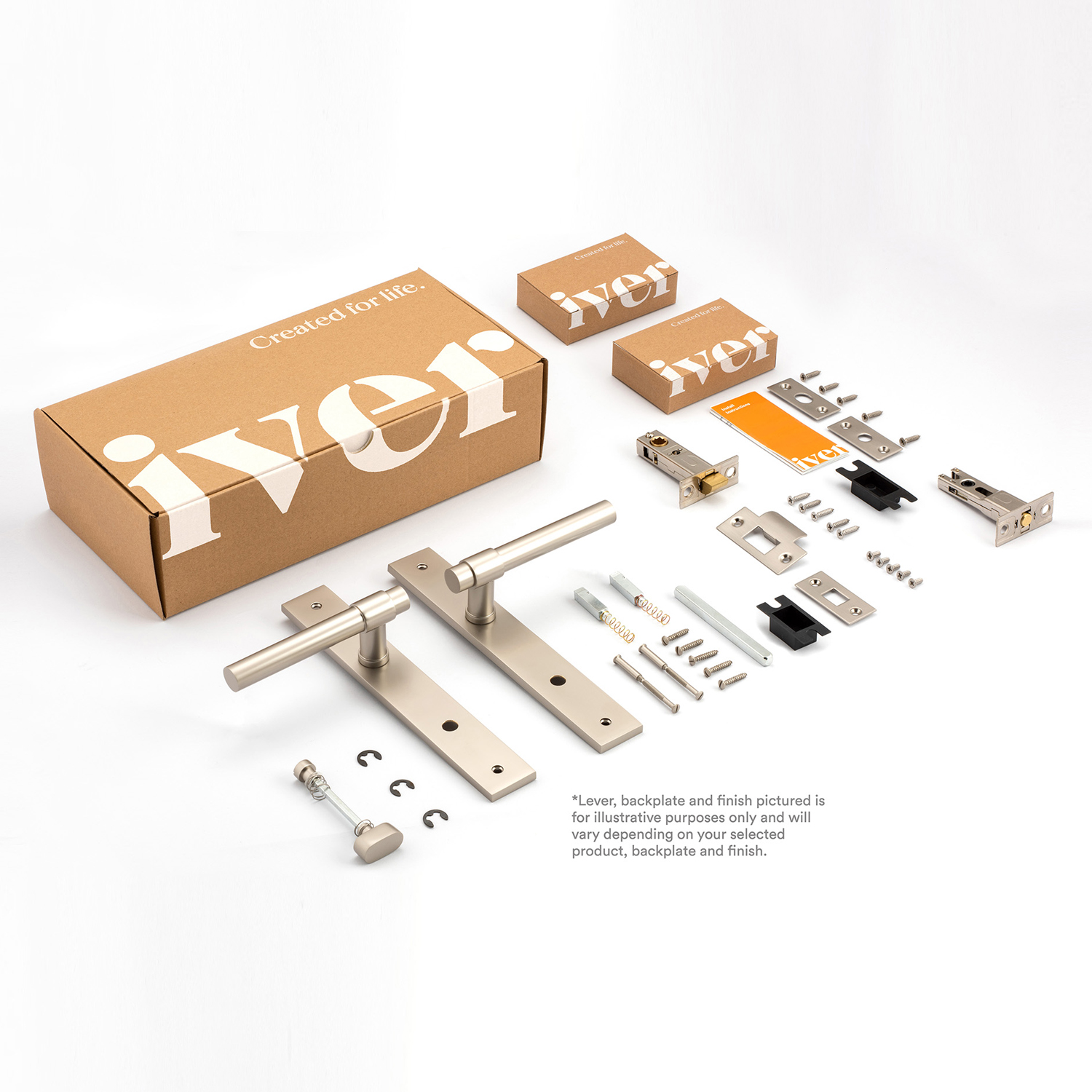

Includes:

• 2 x Levers on Backplates

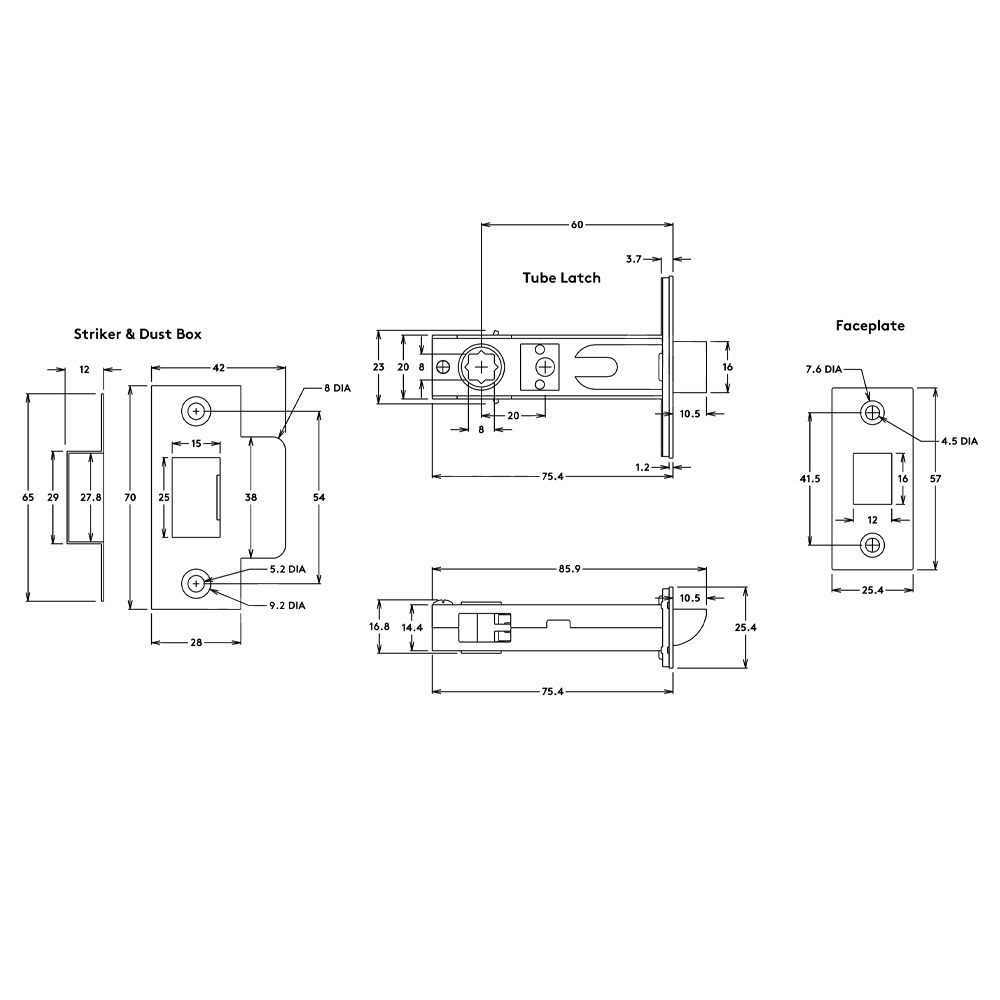

• 1 x Tube Latch Split Cam Backset 60mm
• 1 x Face Plate
• 1 x Striker Plate

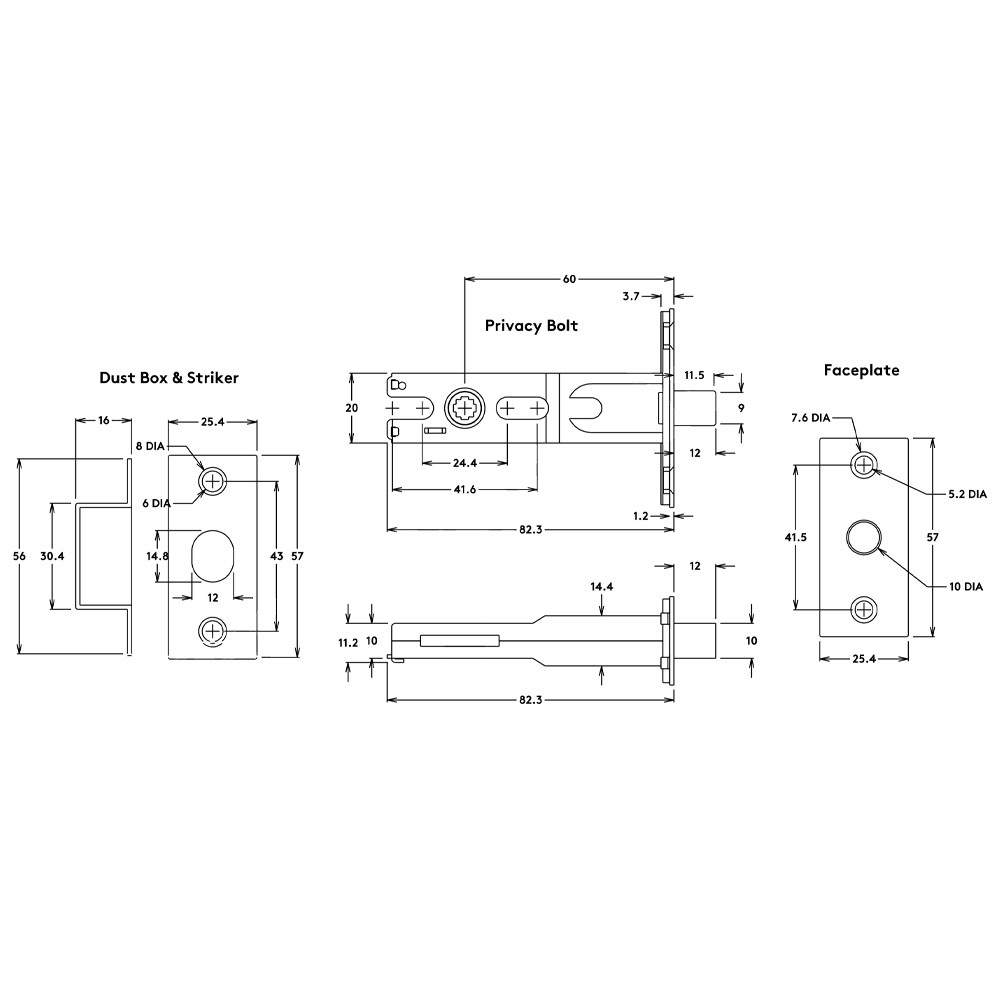

• 1 x Privacy Bolt Round Backset 60mm
• 20 x Screws
• 2 x Tie Bolts
• 1 x Standard Spindle
• 2 x Sprung Spindles
• 1 x Privacy Adaptor
• 2 x Dust Boxes
• 1 x Drill Template
• 1 x Instruction Manual

Features:

• Industrial design, celebrating the simplicity of clean lines with a design accent at the join with minimalistic tubular lever
• For internal doors where privacy is needed, including bathrooms, powder rooms, offices and bedrooms

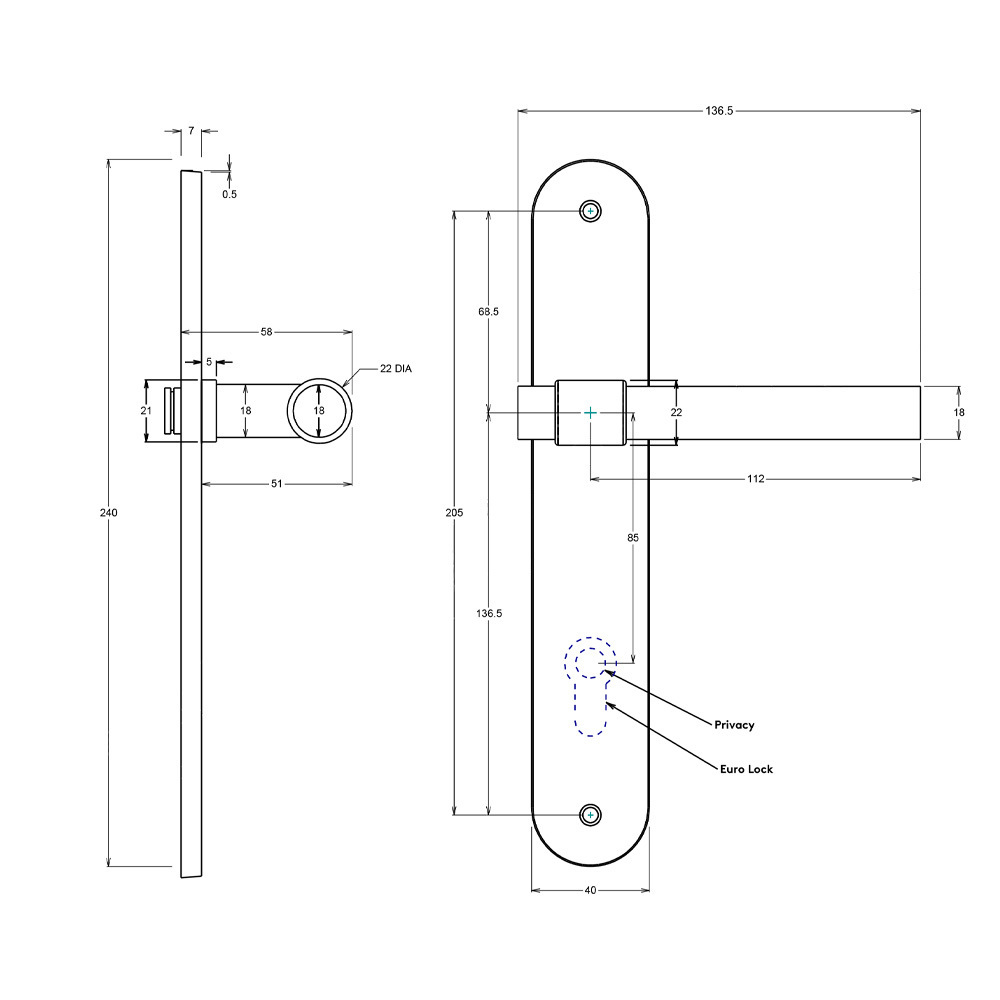

Specifications:

• Backset: 60mm
• Height: 240mm
• Width: 40mm
• Length: 137mm
• Projection: 58mm
• Centre to Centre: 205mm

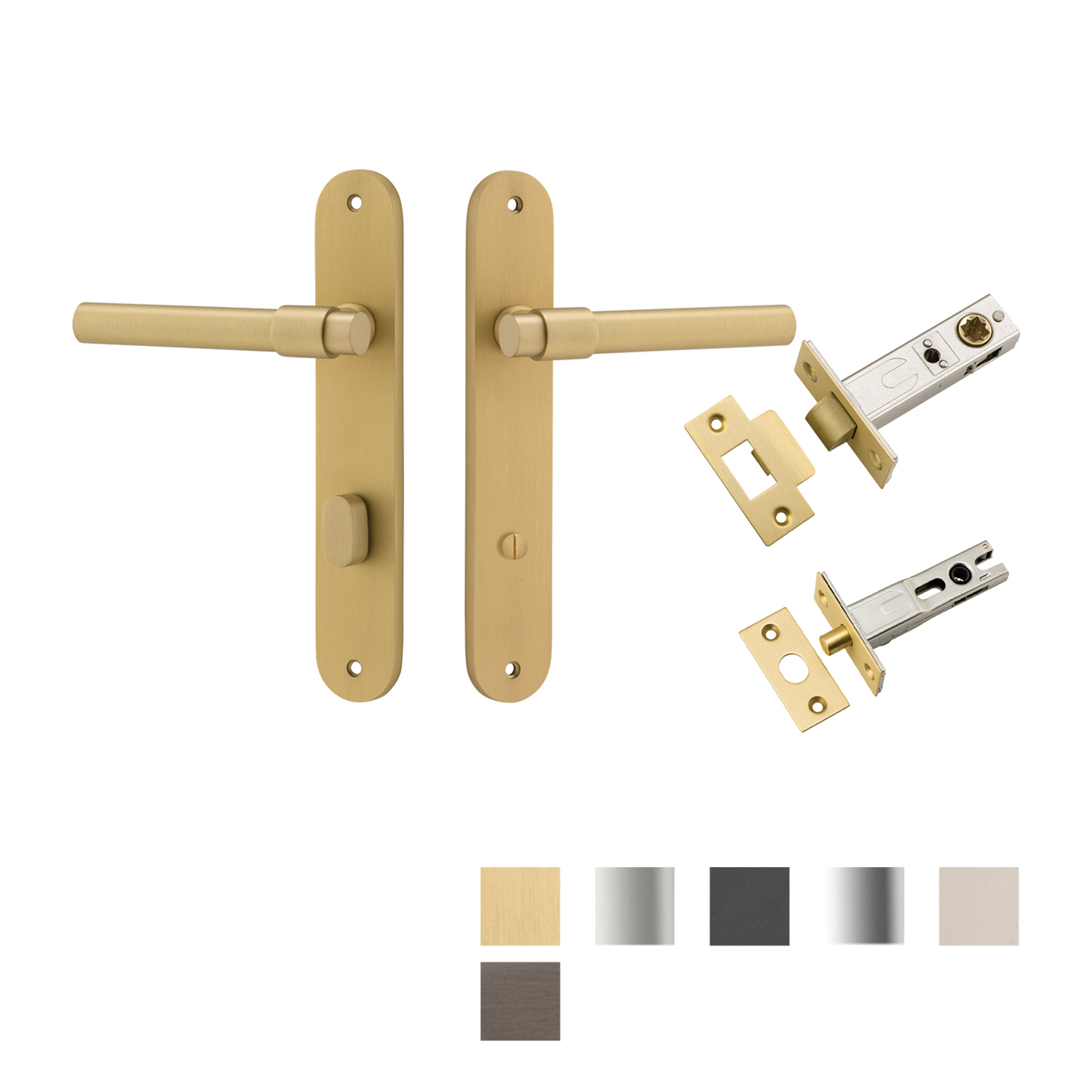

• Available Finish:
  • Brushed Brass
  • Brushed Chrome
  • Matt Black
  • Polished Chrome
  • Satin Nickel
  • Signature Brass

Notes:

• Levers and backplates have been successfully fire rated to 2 hours to meet the requirements of the Australian Standard (AS1530.4:2014).
