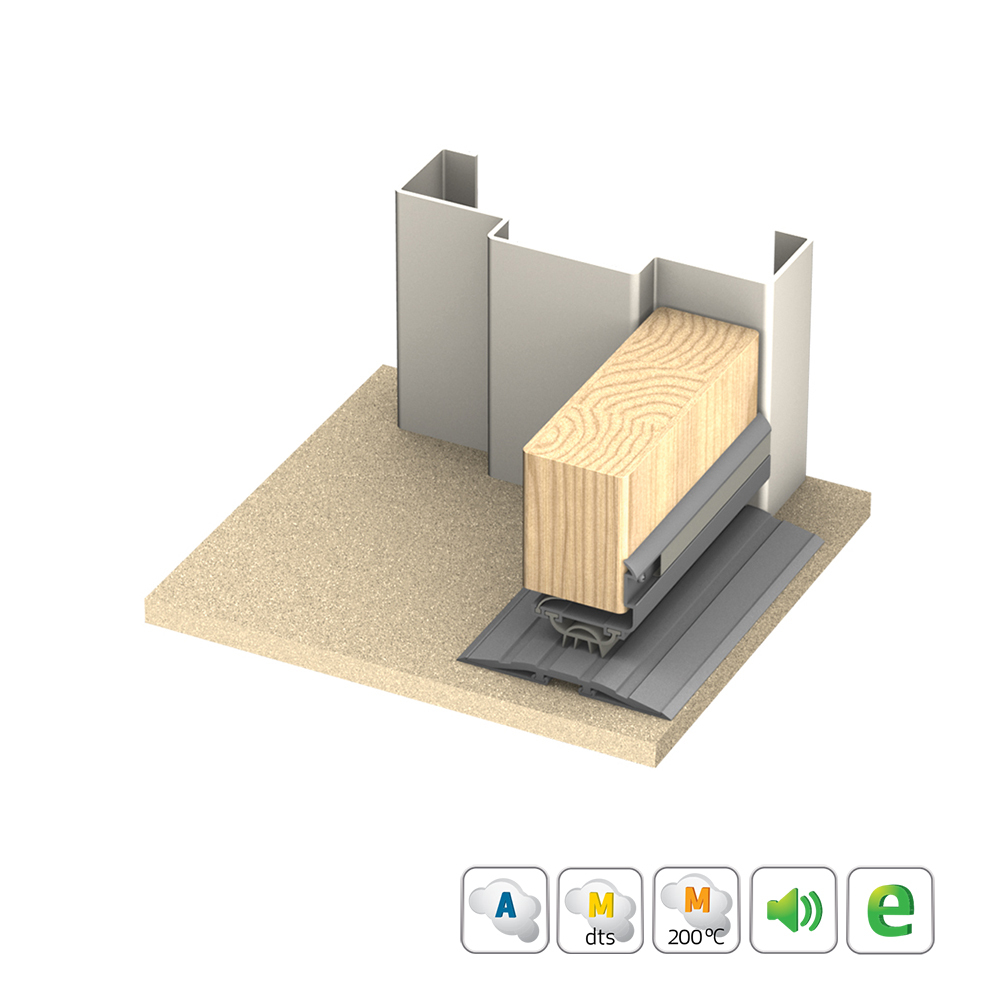

Kilargo IS3070si Weather Resistant Door Bottom Seal
IS3070si-1000CA

This is a non-stocked item which has a handling time of 3-5 business days after payment is made.

Door Bottom Seal - used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

Features:

• Can be fitted without removing the door, and can be used with alternative threshold plates.
• Provides effective containment against cold smoke, sound, dust, light, insects and weather.
• Aesthetic cover strip ensures there is no visible screw line.

Specifications:

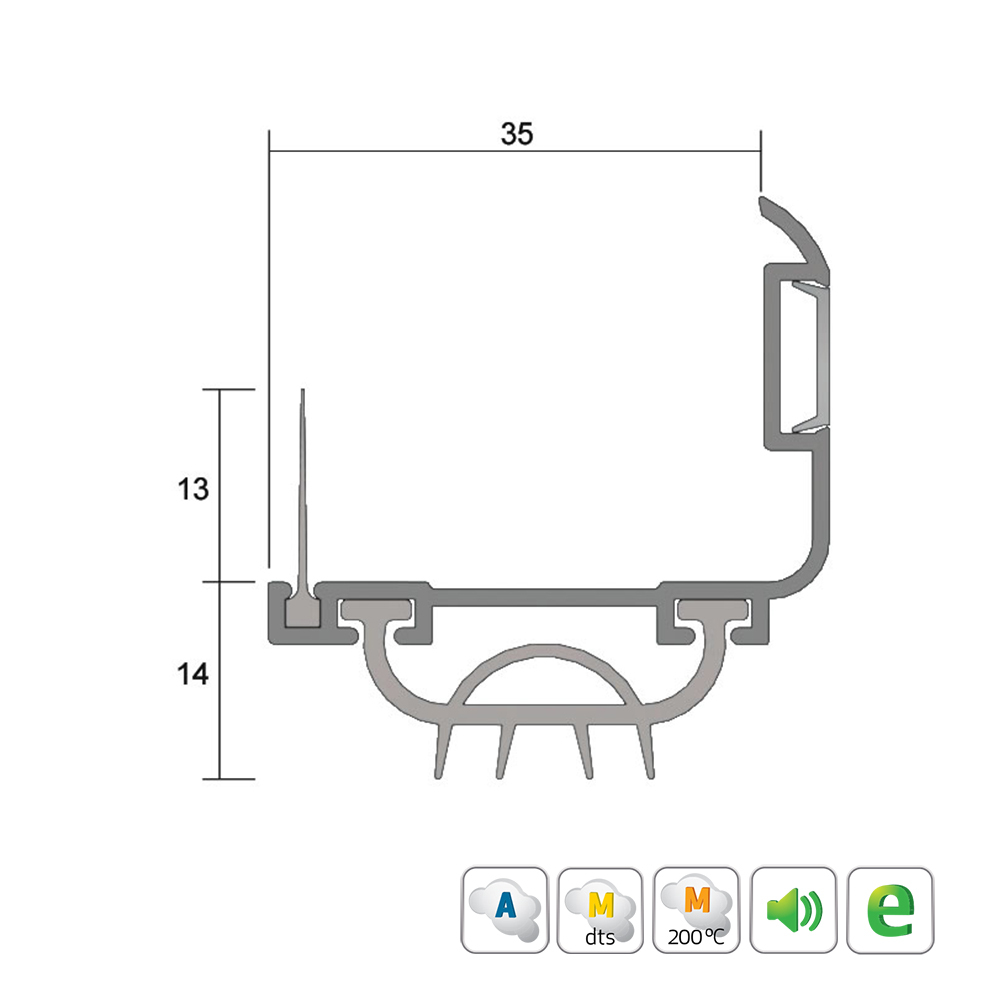

• Gap Size: Min. 12mm / max. 20mm
• Size: 1000mm
• Antimicrobial: No
• Fixing:
  • Fixing screws are supplied with detailed fitting instructions
  • Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately
• Finish: Clear Anodised

Approvals:

• Conforms to BCA Specification C3.4 smoke sealing requirements
• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
