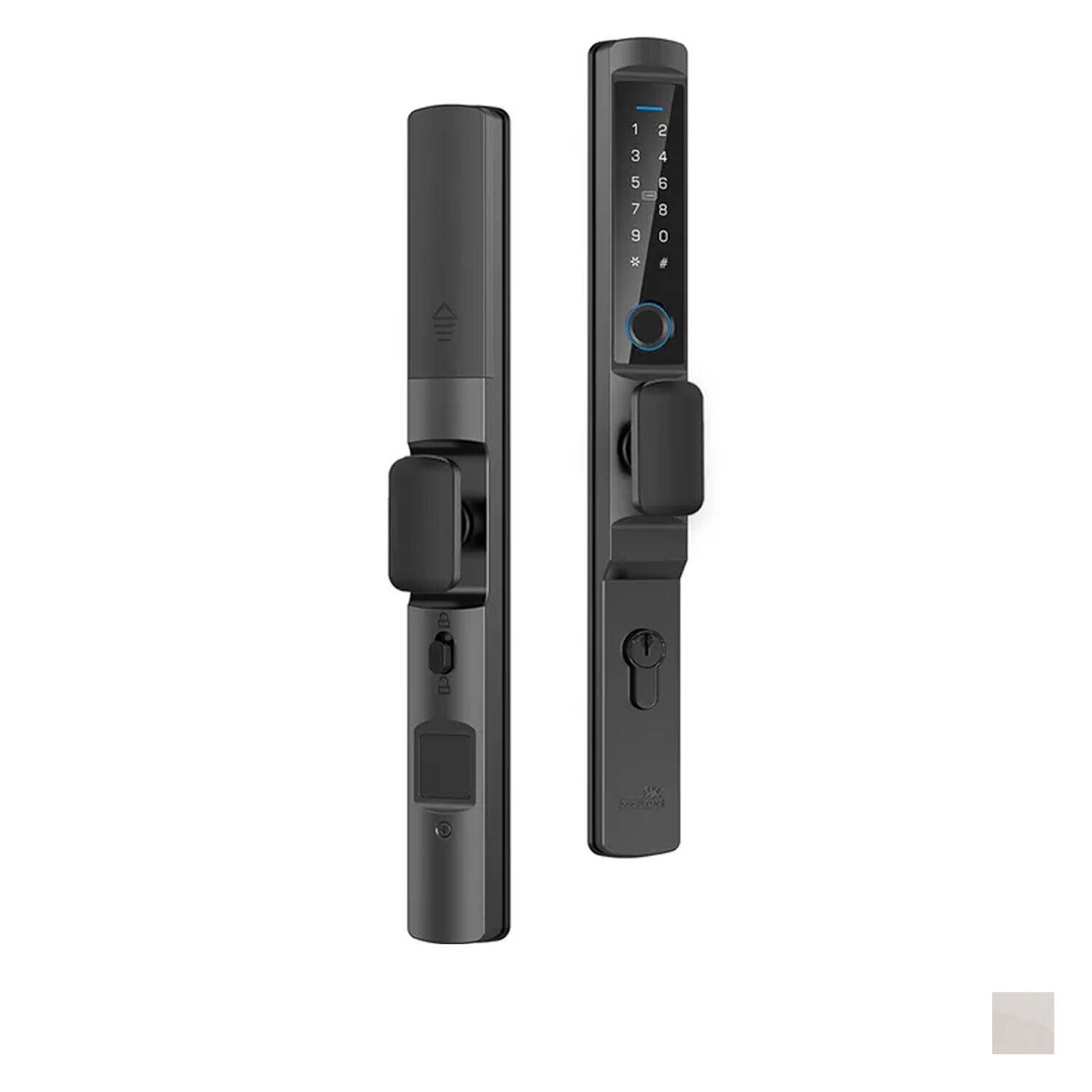

Lockton E-Series Smart Sliding Door Lock

Smart Sliding Door Lock is commonly used in modern residential and commercial properties to provide secure, keyless access for sliding doors.

Smart Sliding Door Lock Functions - to enhance security and convenience by allowing keyless entry through fingerprint, PIN code, RFID tag, or smartphone access on sliding doors.

• LOCKTON 'E-Series' Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

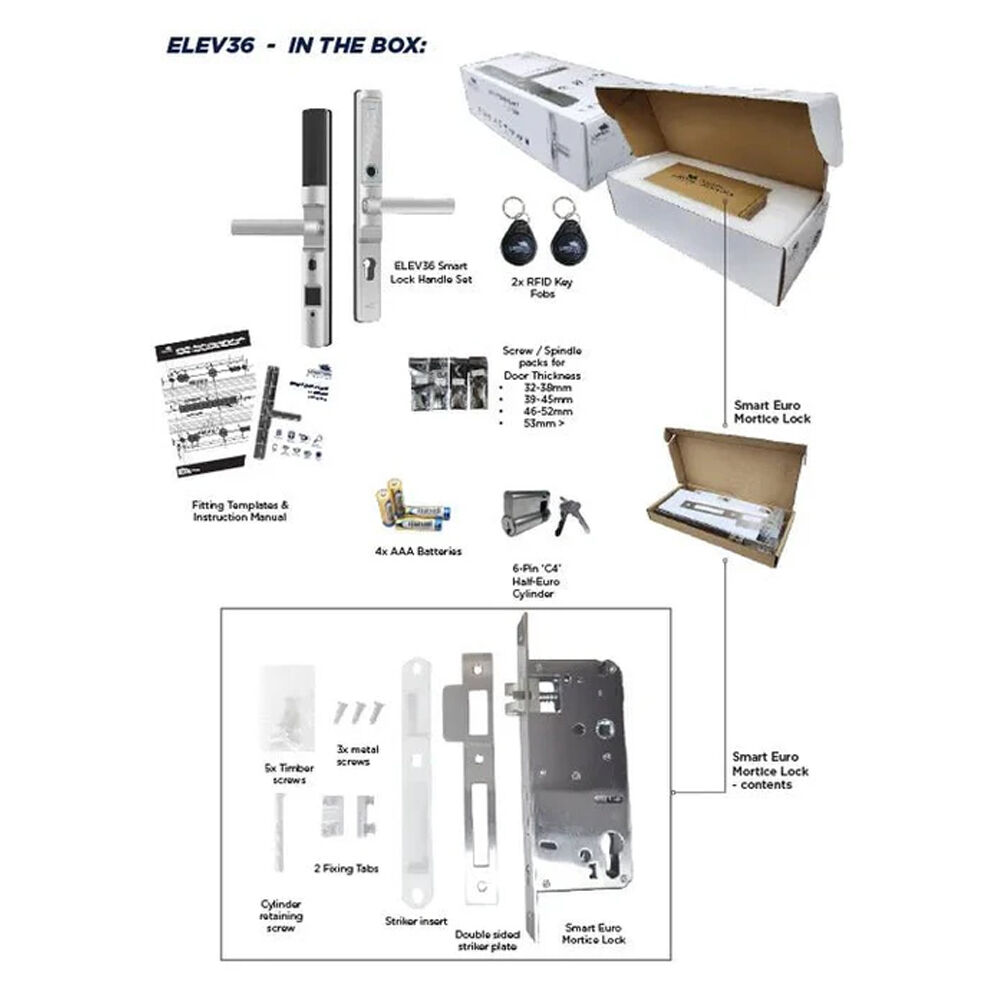

Includes:

• 1 x ELEV36 Smart Lock Handle Set
• 1 x Art. ELEV36-SLHD-BLK Set
• 2 x RFID Key Fobs
• 4 x Screw/Spindle Packs for varying door thicknesses
• 4 x AAA Batteries
• 1 x Smart Euro Sliding Mortice Lock (ordered to desired backset from dropdown)
• 1 x 6-pin C4 Half-Euro Cylinder
• 1 x Fitting Template
• 1 x Instruction Manual

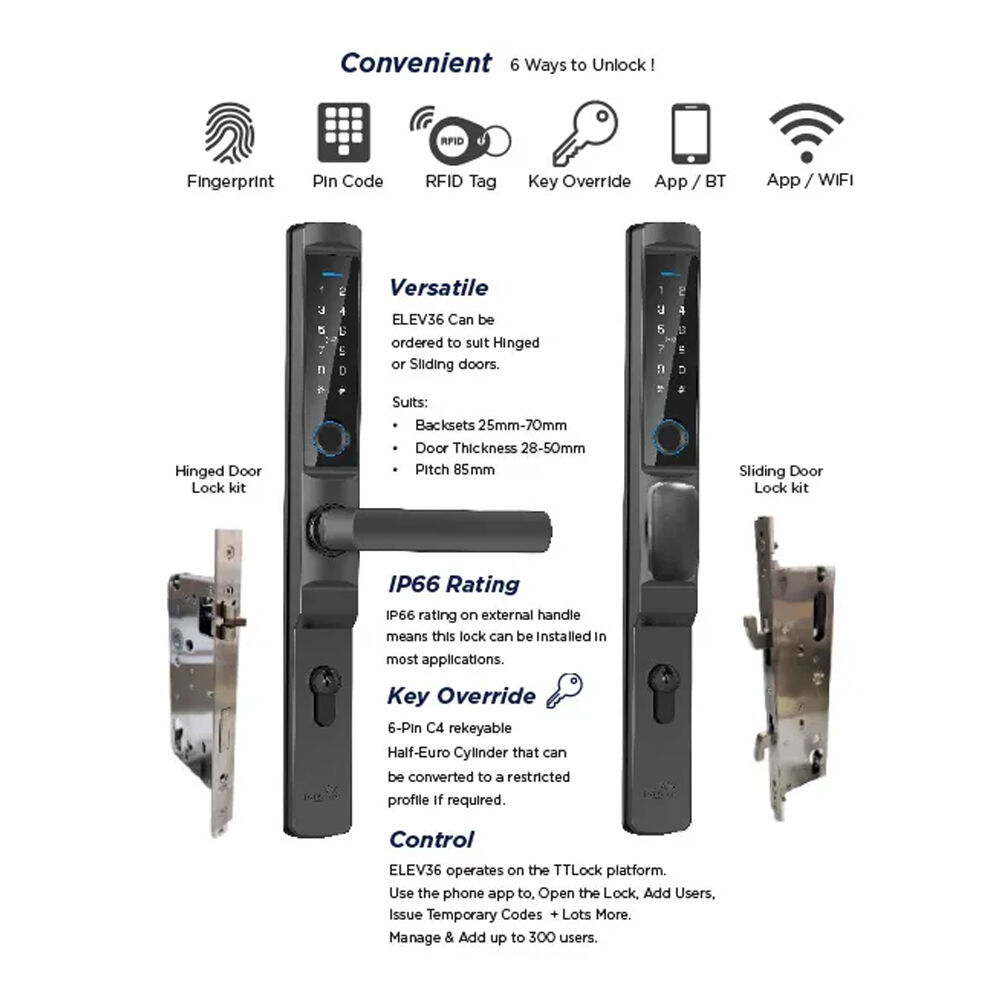

Features:

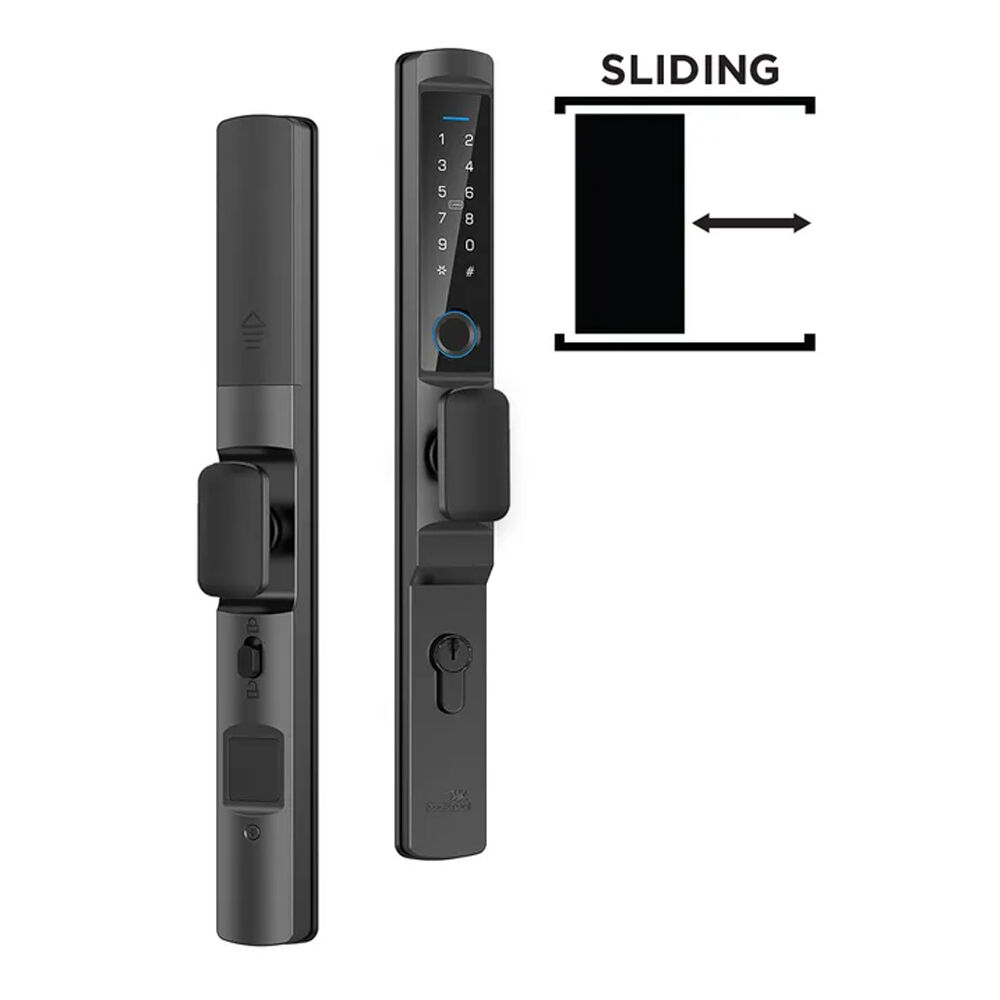

• Designed for Sliding Door installations
• The ELEV36 - Smart Euro Mortice Lock has a single throw two point locking mechanism to suit most sliding door locks
• IP66 Rating on external handle means this lock can be installed in almost any application
• Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
• Lock is available in multiple backset sizes (20-45mm) to suit most installations
• Step by step instructions ensure ease of installation and operation
• Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
• Add up to 300 x Users
• Fingerprint sensing area is perfectly located within proximity of the handle to naturally read a thumb print for quick entry
• Optional G2 and G3 Gateway accessories allow for remote access and control of lock via internet
• Lock has Art. ELEV36-SLHD-BLK supplied but not fitted

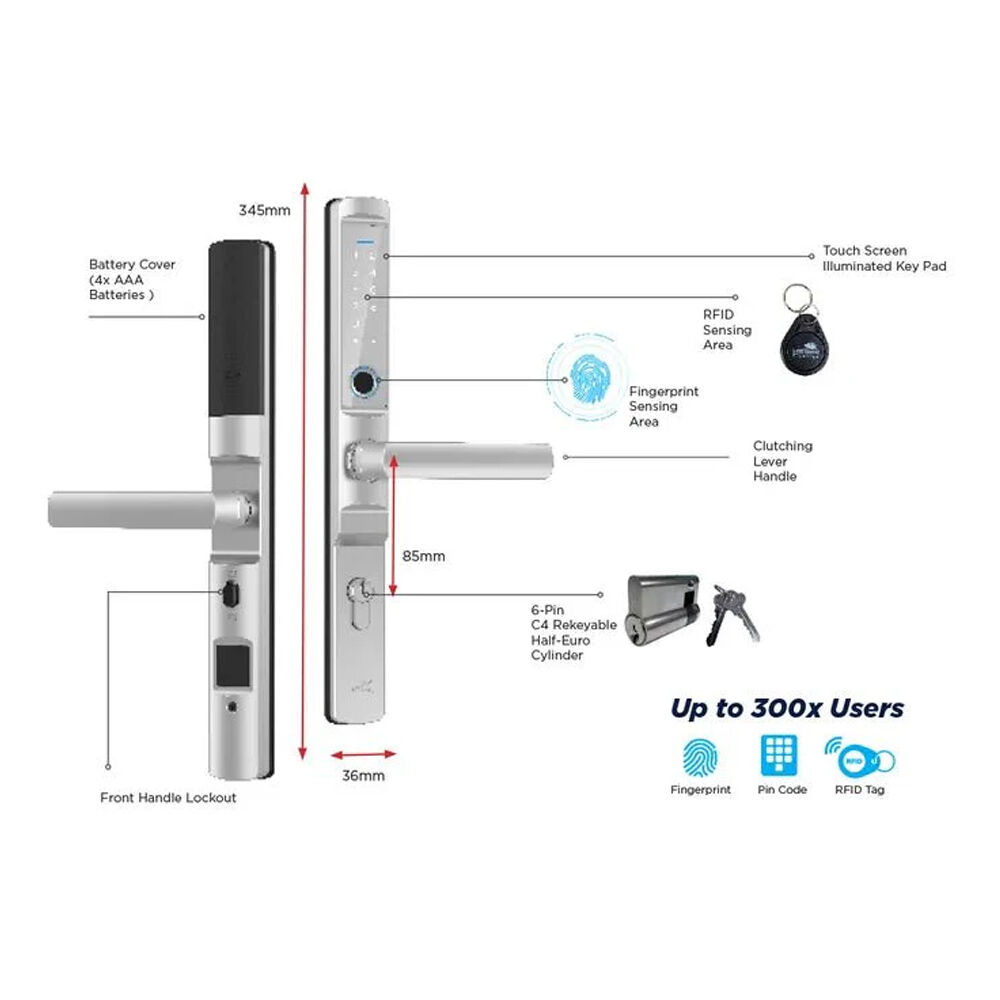

Specifications:

• Door Type: Sliding Doors
• Available Backset:
  • 28mm
  • 35mm
• Length: 345mm
• Width: 36mm
• Pitch: 85mm
• IP Rating: 66 (External Handle Only)
• Lock Backset Range: 20mm - 45mm
• Sliding Lock Face Plate:
  • Length: 270mm
  • Width: 22mm
• Sliding Lock Strike Plate Dimensions:
  • Length: 190mm
  • Width: 15mm
• Door Thickness: 28mm - 50mm
• Spindle Size: 8mm
• Screw Type: M5
• Handle Projection: 30mm
• Handle Height: 58mm
• Handle Width: 30mm
• External Handle: Protrudes 46mm from door
• Power Supply: 4 x AAA Alkaline Batteries
• Battery Life: Approx. 10,000 openings
• Safe Working Temperature: -20 Degrees Celsius to 50 Degrees Celsius
• Available Finish:
  • ​​​​​​​Black
  • Silver
