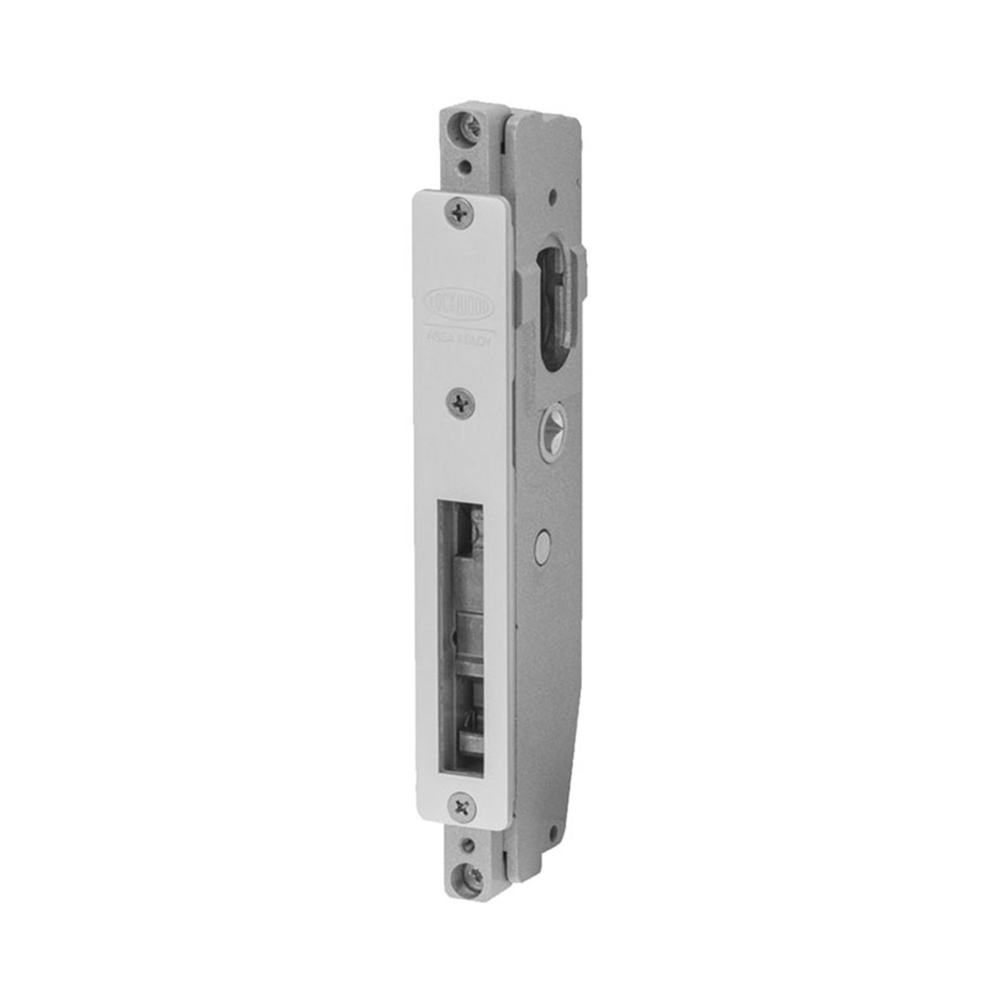

Lockwood Primary Lock Short Backset

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which has a handling time of 10 business days after payment is made.

Primary Lock Short Backset is commonly used as the primary locking mechanism on residential entry doors, especially when the door has a narrow stile or limited space between the door edge and frame.

Primary Lock Short Backset Function - designed to engage with a corresponding strike plate installed on the door frame or jamb. When the door is closed and the bolt is engaged, it securely holds the door in place.


  • Ideal for commercial sliding door and shop front applications.
  • Fabricator primary lock body only
  • Suits sliding or hinged doors.
  • Chamfered bolt for better self latching
  • Positive deadlocking action
  • Can be adapted to suit most function with the addition of appropriate cylinders and turns
  • Suits hollow stile door sections with 36 mm internal width and 58 mm maximum external width
  • Compatible to most restricted keying systems


  • Door Thickness: 32mm - 50mm
  • Backset: 30mm
  • Face Plate Length: 155m
  • Face Plate Width: 25mm
  • Locking Bolt Length: 28mm
  • Finish: Satin Chrome

Note: Strike plate and cylinder not included.

Barcode # 9311847863774
Brand Lockwood
