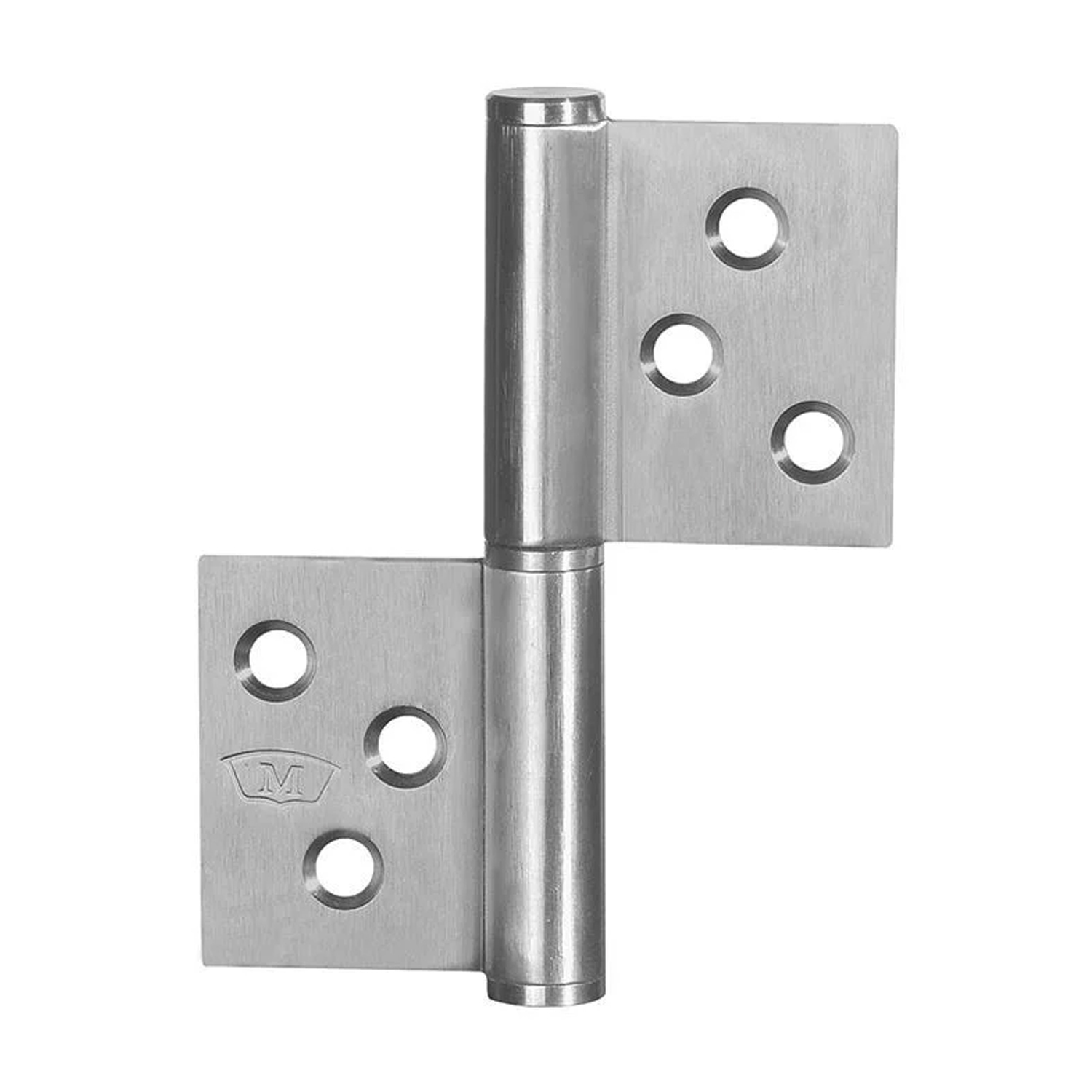

McCallum Stainless Steel Lift Off Hinge

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function -  a mechanical bearing that allows doors to pivot on one edge when they open and close, allowing for limited rotational movement of the object to which it is attached.


  • Suitable for timber and aluminium doors or frames
  • Universal fitting means application for both left and right handed doo
  • Fastening screws supplied
  • Pop rivets are not recommended


  • Hinge Type: Liff Off
  • Material: Stainless Steel 304 Grade
  • Knuckle: Round
  • Hinge Pin: 6.9mm
  • Endcaps: Pressed-in interference fit
  • Material: Stainless Steel 304 Grade
  • Handing: Non- Handed
  • Pin Length: 15mm
  • Frame Type: Metal and Timber
  • Door Thickness: 25mm to 35mm

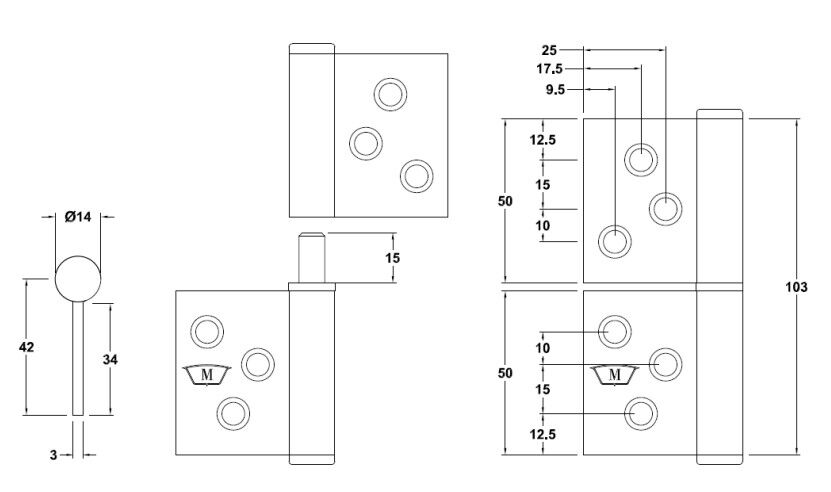

  • Dimension: 100mm x 82mm x 3mm
  • Door Weight: up to 25kg
  • Finish: Stainless Steel



Barcode # 2000000009964
Brand McCallum
