Raven RP134 Meeting Stile Seal
A134LS

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

• Co-extruded PVC acoustic and smoke seal

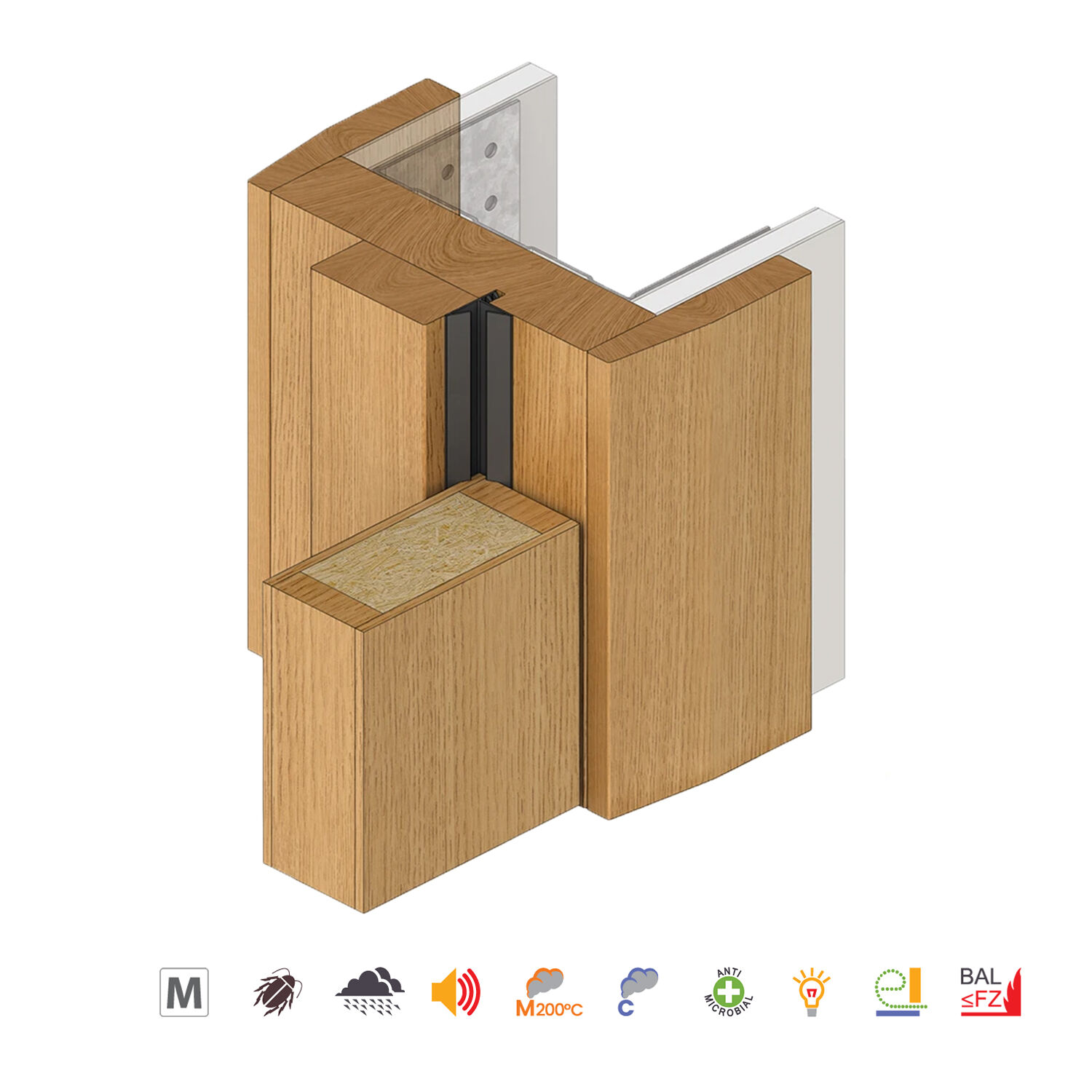

• Discreetly located in the protected corners of rebated timber doors and window frames
• Suitable for new and retrofit applications

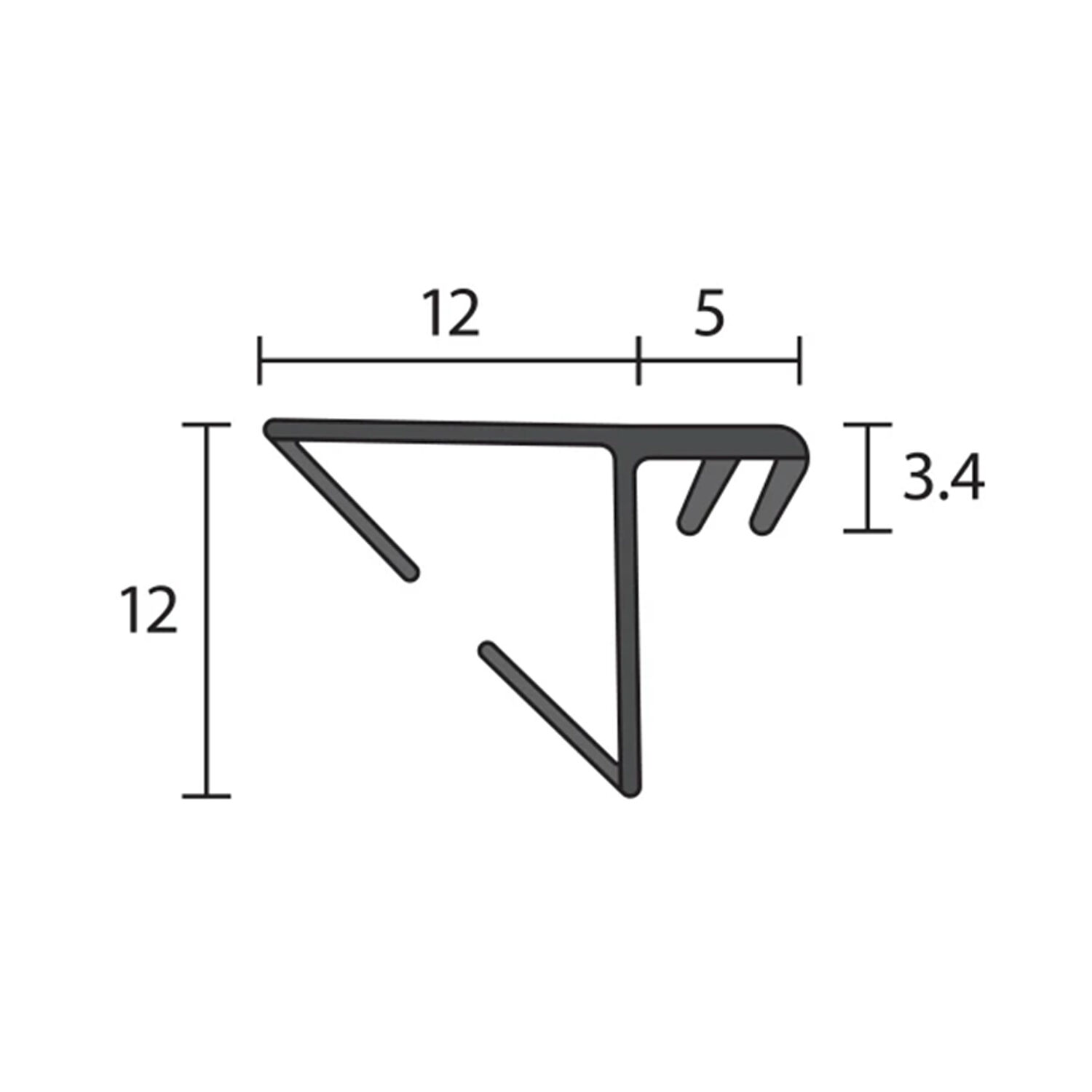

Specifications:

• Min and Max Gap: 3mm - 5.5mm
• Fixing: Push-in Friction Fit
• Width: 12mm
• Projection: 12mm
• Kerf Groove Depth: 5mm
• Kerf Groove Width: 3.4mm
• Length: Long Single Door Set (1 x 1000mm and 2 x 2750mm)
• Finish: Black

Approvals:

• Certifire: CF 5710
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
