Raven RP18 Threshold Plate Ramp 1000mm Silver Anodised
A18C1000

Threshold Plate - enable a smooth entrance for mobility equipment or wheelchairs across uneven door thresholds.

Threshold Plate Function - are hard anodized aluminum extrusions installed on the sill behind doors to give a smooth separation between neighboring floor surfaces.

Features:

• Global GreenTag - Platinum
• A heavy duty threshold plate designed for butt hinged, single, double, or pivot hinge doors.
• It allows the door leaf to clear high pile carpets which have been laid up to the frame.
• It has been designed to accommodate concealed screw fixings through the door jambs.

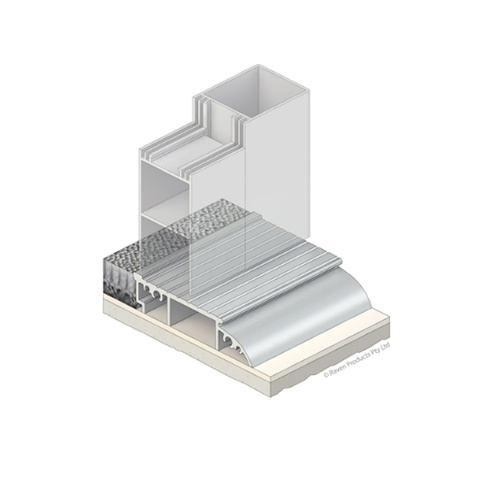

• An aluminium door frame, complete with the threshold plate, can be assembled by a door fabricator prior to transporting as a complete unit.
• RP18 will accommodate Pivot Sets for most types of Transom Closers.
• Used in Conjunction with Raven door bottom seals RP2b and RP74 (RP8Si for butt hinged doors).

Specification:

• Material: Aluminium
• Fixing: Screw Fixed
• Location: Door sill of single, double butt hinged or pivot hinged doors.
• Finish: White
• Size: 3000mm

Approval/s:

• Door sill of single, double butt hinged or pivot hinged doors.
