Raven RP2A Door Bottom Sweep Seals
R2AB

Bottom Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

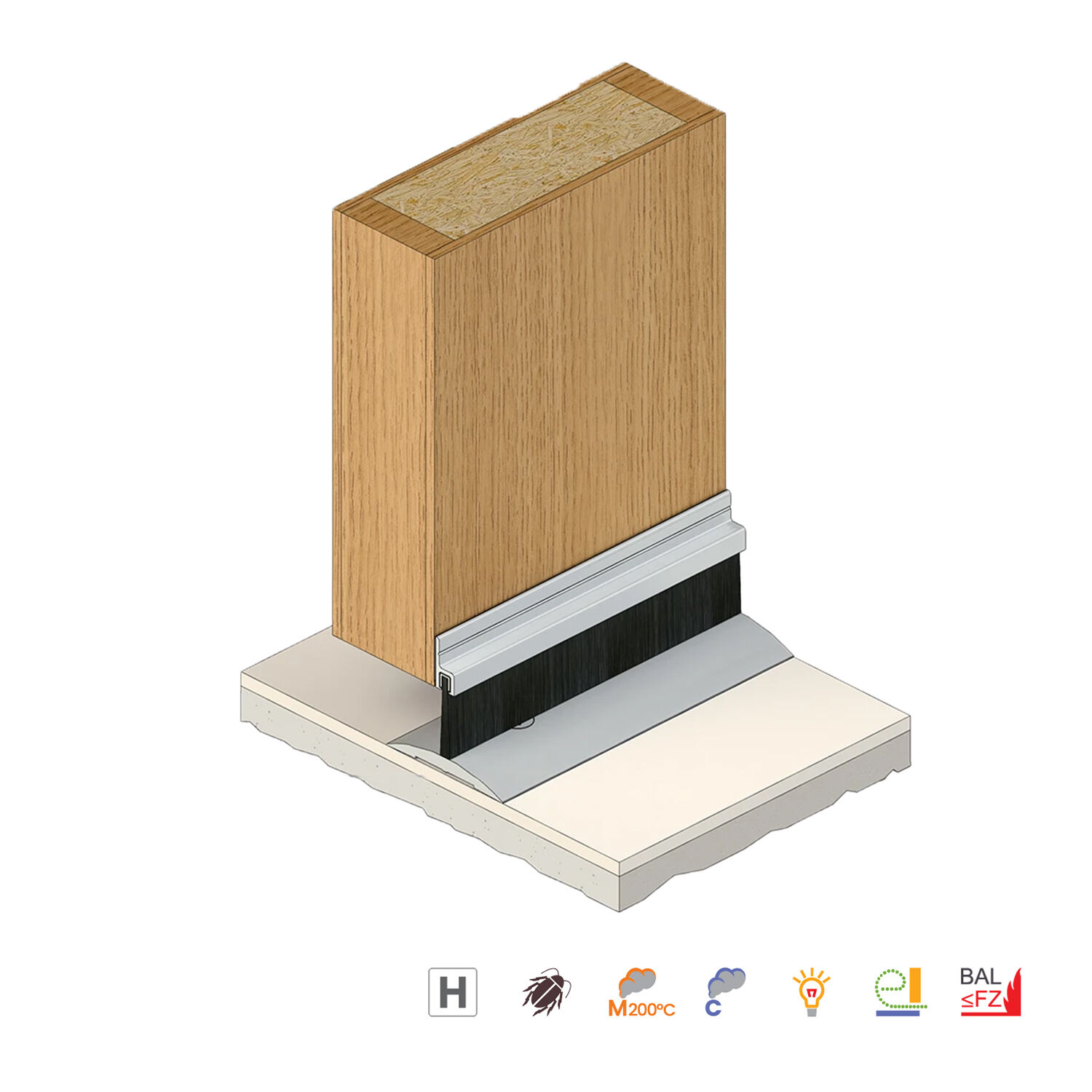

Bottom Sweep Seal Function - seals the gap between the door's bottom and the threshold. Sweeps away dirt or debris that accumulate at the base of the door when it is closed.

Features:

• A nylon brush strip seal with an anodised aluminium carrier that mounts to the inside or outside of a door. It is ideal for sliding or double acting doors
• Can be concealed inside of an aluminium door suite bottom rail by the fabricator
• Used in conjunction with Raven threshold plates

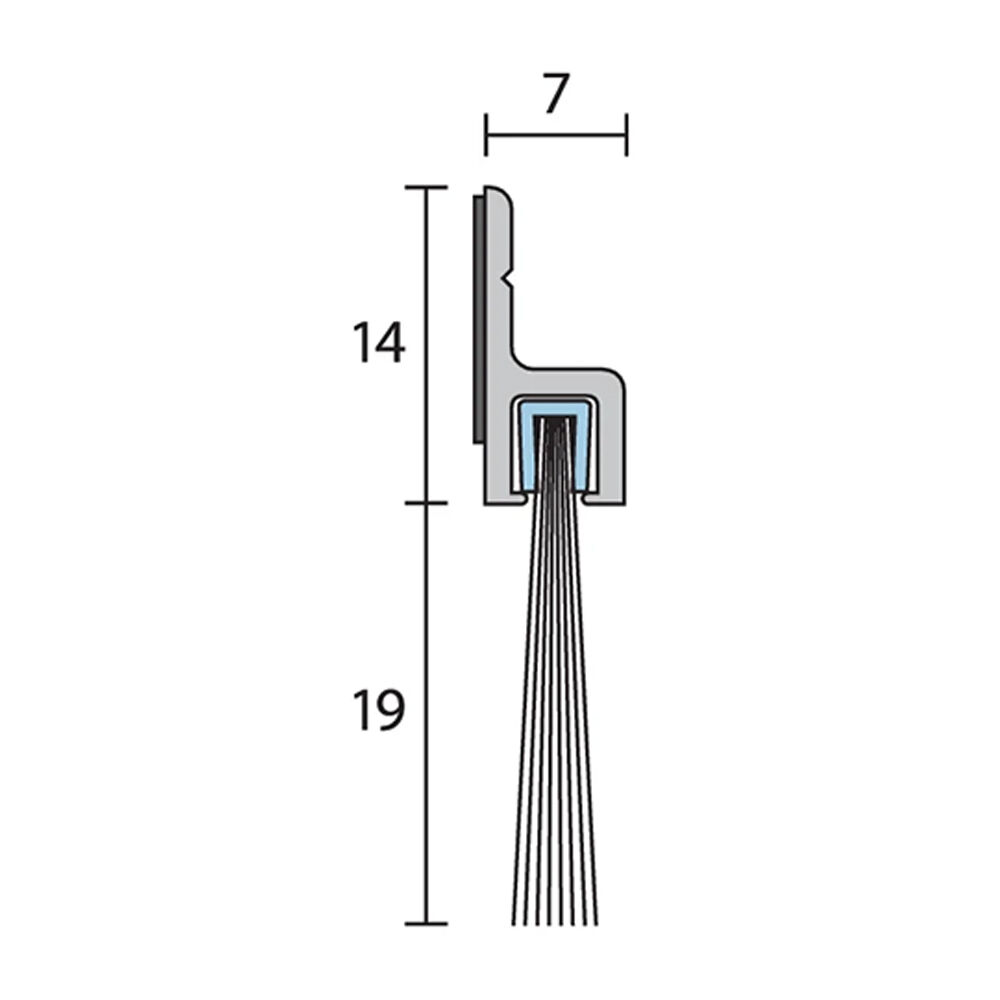

Specifications:

• Max Gap: 19mm
• Fixing: Screw Fix
• Depth: 14mm
• Width: 7mm
• Length: 920mm
• Finish: Bronze Anodised

Approvals:

• Brush Strip flammability index 1 when tested to AS1530.2
• ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• BAL FZ when used on a garage in accordance with AS 3959
